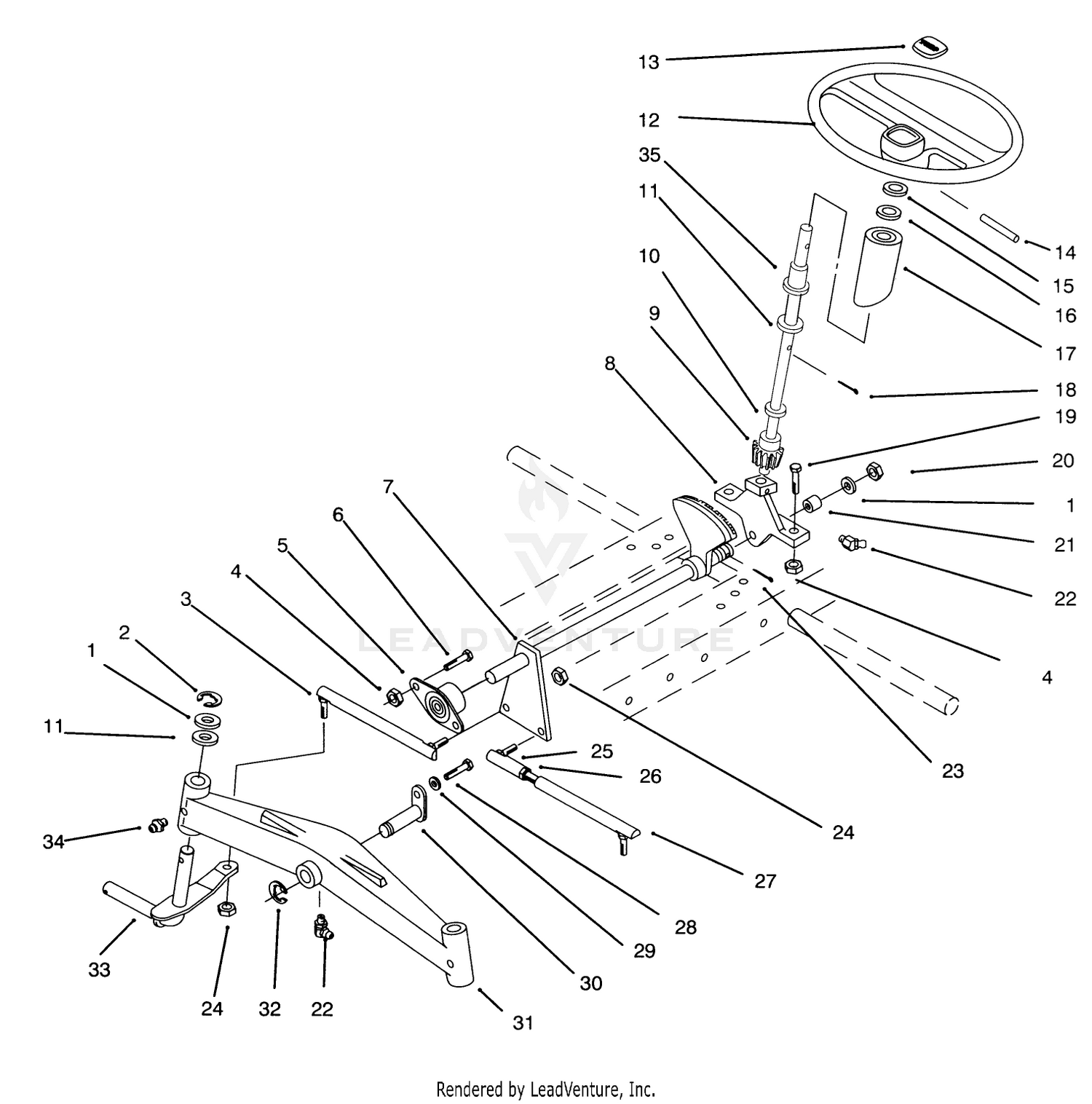

| Ref | Part Number | Description |
|---|
| 1 |
1278 |
WASHER Price: $1.89 |
| 2 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 3 |
78-2900 |
ASS'Y-TIE ROD* This part replaces 102592. Price: $47.05 |
| 4 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
6472 |
BEARING-FLANGED Price: $14.27 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
78-2880-03 |
LOWER STEERING ASM This part replaces 78-2880. Price: $144.79 |
| 8 |
88-2710 |
DISCONTINUED Price: Call Us |
| 9 |
92-4987 |
STEERING SHAFT ASM Price: $103.37 |
| 10 |
237-69 |
O-RING Price: $5.72 |
| 11 |
5210 |
WASHER-SHIM Price: $1.36 |
| 12 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 13 |
78-0370 |
STRG-WHL INSERT TORO Price: Call Us |
| 14 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 15 |
7896 |
WASHER-BOWED Price: $0.60 |
| 16 |
109262 |
WASHER-FLAT Price: $2.31 |
| 17 |
113443 |
DISCONTINUED Price: Call Us |
| 18 |
3272-21 |
PIN-COTTER Price: $3.09 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 21 |
6397 |
BEARING-BRONZE Price: $14.06 |
| 22 |
1481 |
FITTING-GREASE Price: $4.12 |
| 23 |
3272-19 |
PIN-COTTER Price: $0.31 |
| 24 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 25 |
94-7572 |
END-TIE ROD, RH This part replaces 78-2920. Price: $31.99 |
| 26 |
3219-3 |
NUT-HEX Price: $0.34 |
| 27 |
78-2900 |
ASS'Y-TIE ROD* Price: $47.05 |
| 28 |
322-1 |
SCREW-HH Price: $0.22 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
6216 |
PIN AND PLATE ASM Price: $29.79 |
| 31 |
5638-01 |
AXLE-FRONT This part replaces 5638. Price: $232.92 |
| 32 |
5618 |
E-RING Price: $0.61 |
| 33 |
113381-01 |
SPINDLE ASM-LH This part replaces 113381. Price: $63.08 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
