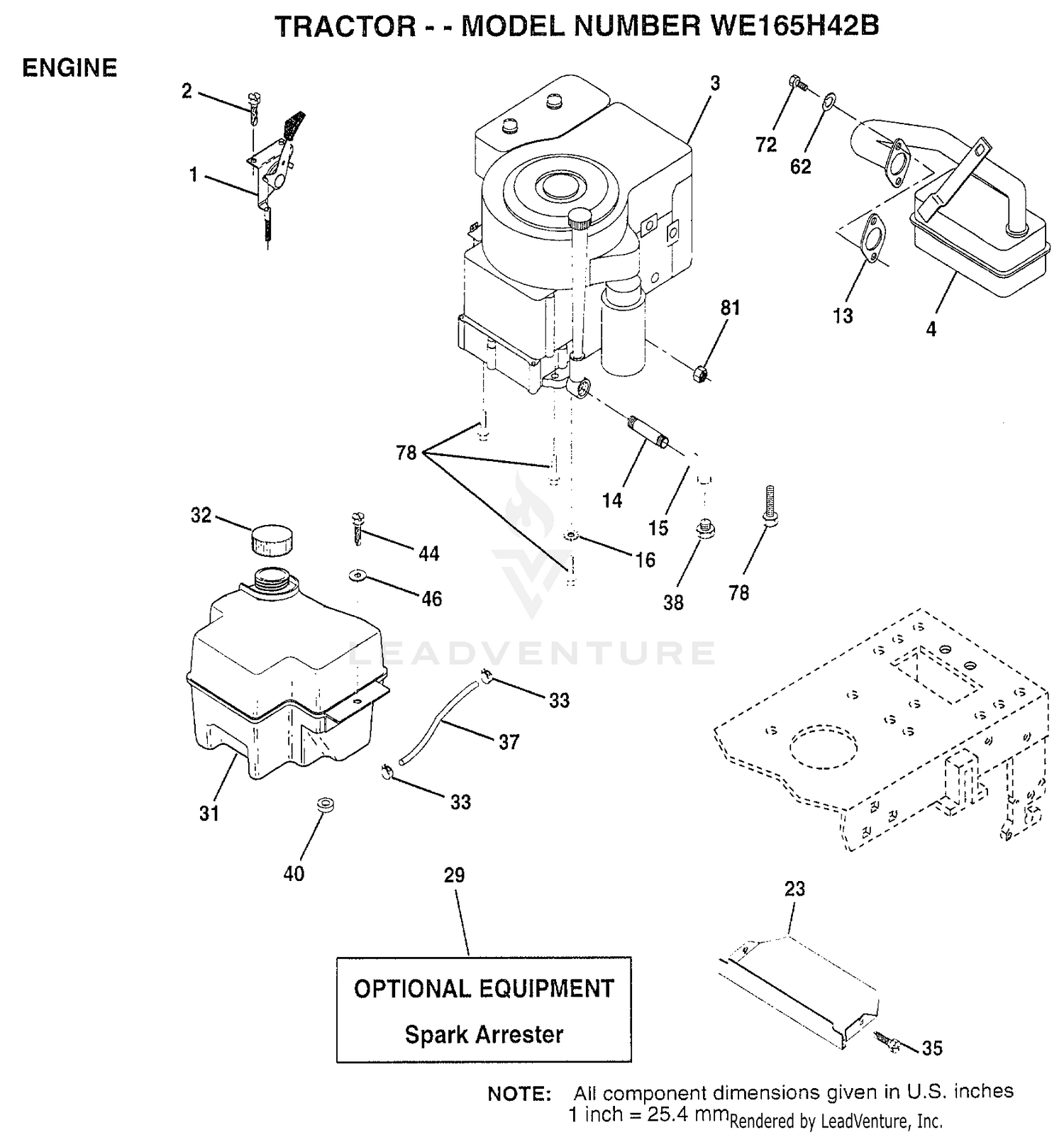

ENGINE

ENGINE

Parts (46)

RefPart NumberDescription
1 140310 CONTROL THROTTLE Price: Call Us
2 17720410 SCREW LT Price: Call Us
4 137352 MUFFLER Price: Call Us
13 272293 GASKET ENG 1 313 LD TIN PLATED Price: Call Us
14 13280324 PIPE NIPPLE Price: Call Us
15 13200300 ELBOW Price: Call Us
15A 690283 Plug-Oil Price: Call Us
16 11050600 LOCKWASHER Price: Call Us
23 159880 SHIELD.BRN/DBR.GD Price: Call Us
29 137180 SUB= 532137180 Price: Call Us
31 161911 TANK.FUEL.FRONT. Price: Call Us
32 140527 CAP ASM FUEL Price: Call Us
33 123487X HOSE CLAMP Price: Call Us
35 17490512 SCREW Price: Call Us
37 137040 LINE FUEL Price: Call Us
39 690745 Deflector-Oil Price: Call Us
40 124028X SUB= 532124028 Price: Call Us
44 17490412 SCREW HEX CRT Price: Call Us
46 19091416 WASHER Price: Call Us
62 10040500 LOCKWASHER Price: Call Us
72 71070512 SCREW Price: Call Us
78 17490620 SCREW Price: Call Us
187 691050 Line-Fuel (Cut to Required Length) Price: Call Us
287 692062 Screw Price: Call Us
385 693169 Screw Price: Call Us
387 808969 Pump-Fuel Price: Call Us
430 690679 Screw Price: Call Us
479 692537 Screw Price: Call Us
523 693175 Dipstick Price: Call Us
524 693172 Seal-Tube, Dipstick Price: Call Us
525 693174 Tube-Dipstick Price: Call Us
552A 690701 Bushing-Crank, Governor Price: Call Us
565 690682 Stud Price: Call Us
596 691492 Screw Price: Call Us
601 691038 Clamp-Hose Price: Call Us
615 691550 Retainer-Shaft, Governor Price: Call Us
628 692062 Screw Price: Call Us
650 692539 Screw Price: Call Us
691 690680 Seal-Shaft, Governor Price: Call Us
788 691559 Bracket-Pump, Fuel Price: Call Us
816 690706 Washer Price: Call Us
918 393815 Line-Vacuum Price: Call Us
1017 690900 Screen-Pump, Oil Price: Call Us
1024 693185 Pump-Oil Price: Call Us
1027 492932 Filter-Oil Price: Call Us
1028 808235 Adapter-Filter, Oil Price: Call Us
