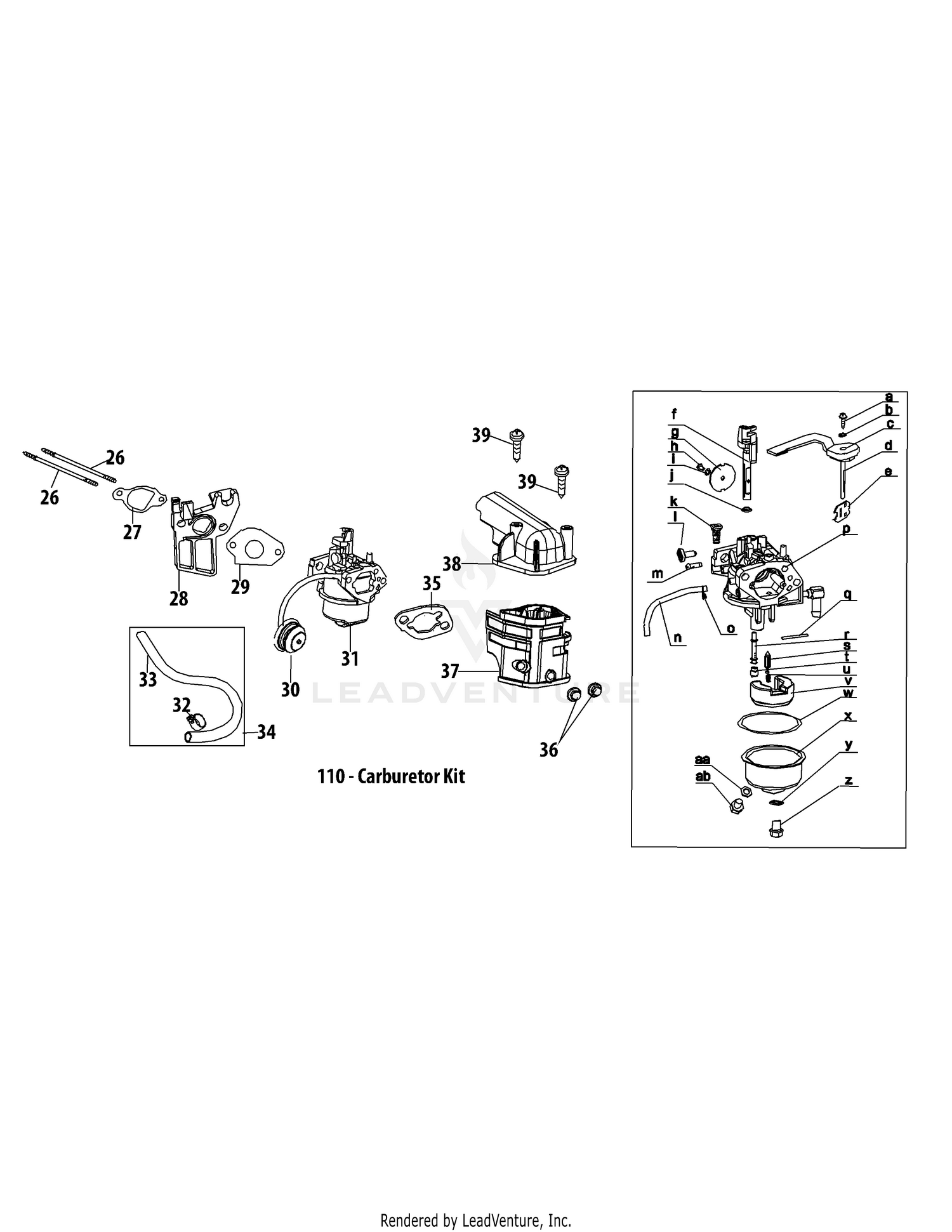

370-JUA Carburetor

370-JUA Carburetor

Parts (41)

RefPart NumberDescription
a 710-05468 Mixture Screw Price: $3.56
aa 951-11349A FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66
b 736-04638A LOCK WASHER This part replaces 736-04638. Price: $2.88
c 951-12811 CHOKE CONTROL LEVER This part replaces 951-12515. Price: $10.46
d None Choke Shaft
e None Choke Plate
f None Throttle Shaft
g None Throttle Plate
h 710-05469 Screw M3×6 Price: $3.56
i 736-04638A LOCK WASHER This part replaces 736-04638. Price: $2.88
j None Gasket, Throttle Plate
k None Idle Jet Assembly
l None Idle Speed Adjusting Screw
m None Primer Pipe
n 951-12019A PRIMER HOSE This part replaces 951-12019. Price: $6.17
o 951-11906 Hose Clamp Price: $3.56
p None Carburetor Body
q None Float Pin
r None Emulsion Tube
s 951-12875 FLOAT NEED Not Available Price:
t None Main Jet
u None Needle Valve Spring
v 731P09132A FLOAT Price: $4.45
w 951-11589 Fuel Bowl Gasket Price: $6.04
x None Fuel Bowl
y 951-11348A FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07
z 710-04945 Fuel Bowl Mounting Bolt Price: $3.66
26 710-05101 Stud M6×110 Price: $3.71
27 751P11567B CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73
28 751P11568A INSULATOR This part replaces 951-11568. Price: $3.05
29 751P12005B CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89
30 951-10639B PRIMER This part replaces 951-10639A. Price: $13.84
31 951-14028A Carb Assembly This part replaces 751-14028A. Price: $88.23
32 951-11700A CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60
33 951-12613 Fuel Hose Price: $11.37
34 951-12012 Fuel Line Kit Price: $25.94
35 951-11571 CARBURETOR GASKET PLATE Price: $4.83
36 712-04213 Nut Price: $5.94
37 951-10962 Air Cleaner Housing Price: $21.32
38 951-10961 Air Cleaner Assembly Price: $14.50
39 710-05275 Self-Tapping Bolt M4.2×45 Price: $3.48
