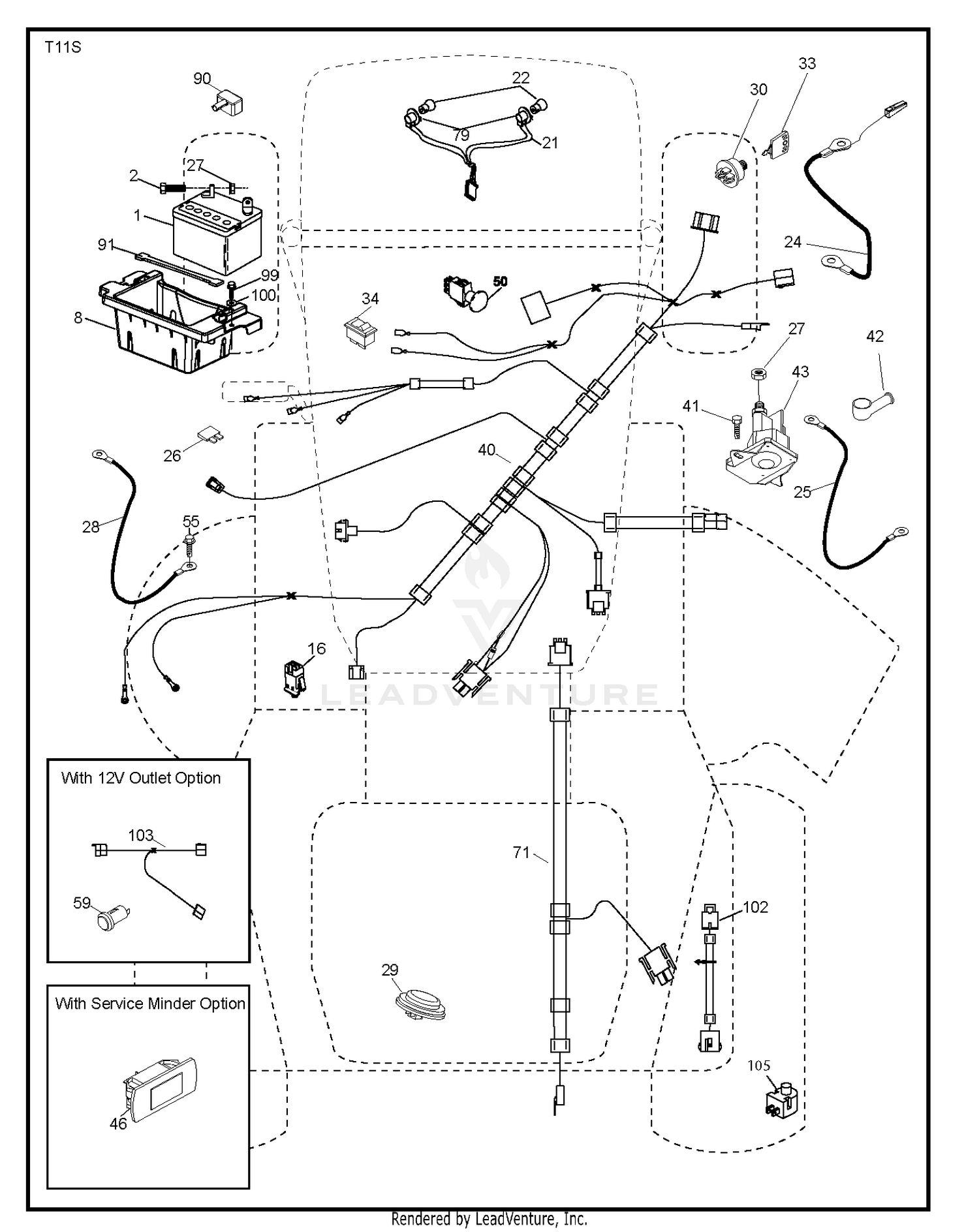

| Ref | Part Number | Description |
|---|
| 1 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
120-8095 |
PEDAL Price: Call Us |
| 4 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 5 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 6 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 7 |
323-29 |
SCREW-HH Price: $0.42 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 16 |
114-5608 |
SPACER-STANDOFF Price: $15.74 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 18 |
120-8088-0P |
HUB-TRACTION PEDAL PIVOT This part replaces 120-8088-03. Price: $69.27 |
| 19 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 21 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 23 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 24 |
84-9100 |
SPRING Price: $11.99 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 33 |
120-8038 |
HUB ASM Price: $121.12 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 36 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 37 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 38 |
32105-21 |
SCREW-HH Price: $1.09 |
| 40 |
120-8091 |
SHAFT-PIVOT, TRACTION Price: $33.82 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
120-8089 |
PLATE-COVER, SENSOR Price: $3.38 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
121-3099 |
PLUG-PANEL, PLASTIC Price: $1.87 |
| 45 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 46 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107604 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532196112. Price: $29.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
