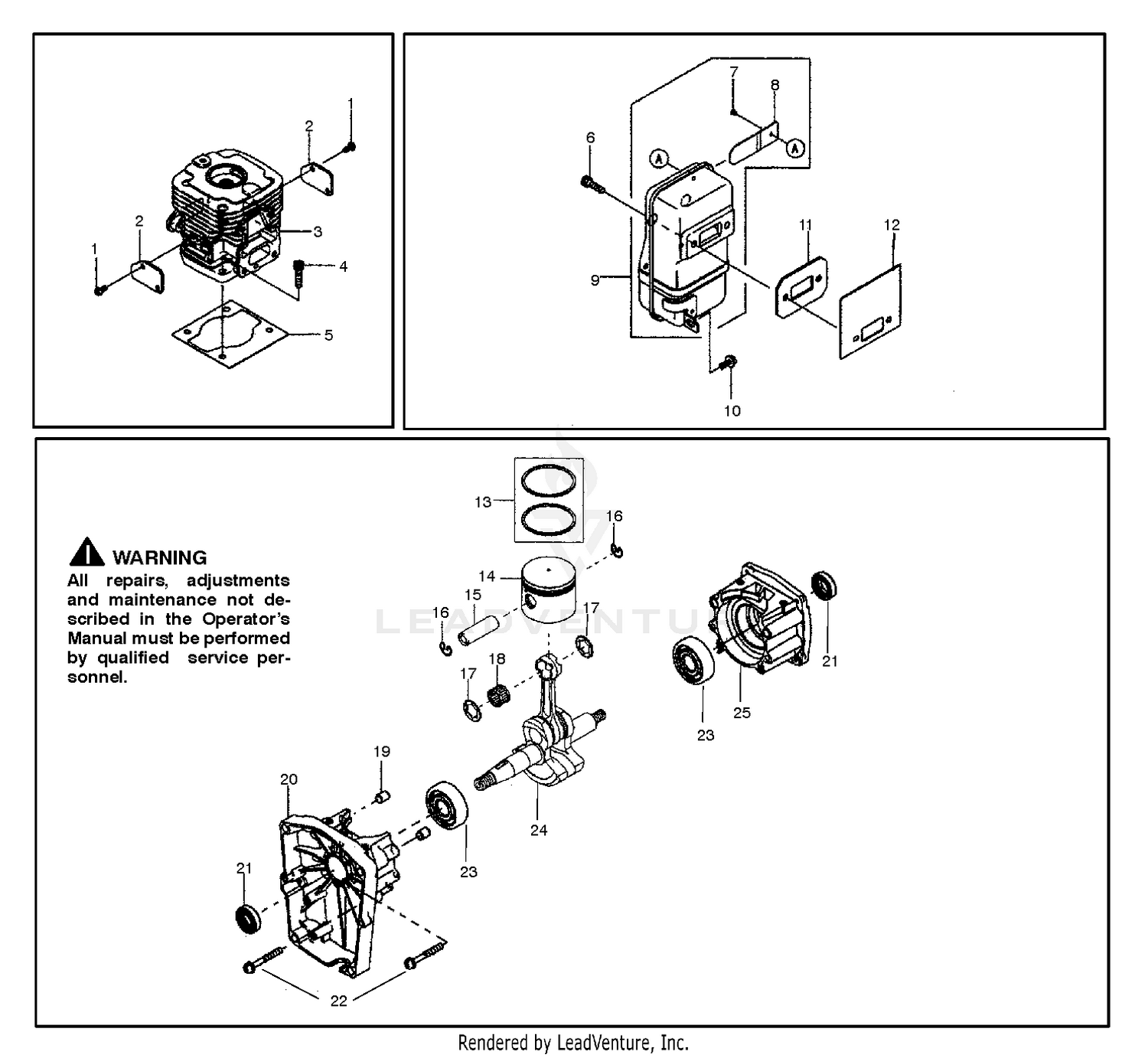

ENGINE

ENGINE

Parts (30)

RefPart NumberDescription
1 214B0408 Screw-Type 1 Only Price: Call Us
1 62-3800 YOKE-END This part replaces 21-5960. Price: $239.26
2 132712250 PLATE Price: $2.99
2 54-9180 U-JOINT KIT This part replaces 21-5970. Price: $58.18
3 110052156 CYLINDER ENGINE Price: $111.99
3 2115-80 ZERK This part replaces 21-5980. Price: $0.76
4 100-6564 DRIVESHAFT ASM This part replaces 21-6030. Price: $924.10
4 545145461 BOLT SOCKET 5 X 20 Price: $2.99
5 110612148 GASKET CYLINDER BP406 Price: $6.99
5 21-5990 DUST CAP ASM Price: $36.55
6 100-6564 DRIVESHAFT ASM This part replaces 21-6020. Price: $924.10
6 545145465 BOLT SOCKET 6 X 20 Price: $1.99
7 920092411 SCREW Price: $1.99
8 180772134 ARRESTER SPARK Price: $3.99
9 490692417 MUFFLER ASSY Price: $79.99
10 545145467 SCREW PAN WSP 5 X 14 Price: $1.99
11 110612186 GASKET Price: $4.99
12 110612188 GASKET OTHER - GAS L/G PARTS Price: $7.99
13 130086067 RING SET PISTON Price: $17.99
14 130012164 PISTON ENGINE Price: $32.99
15 130022094 PIN PISTON Price: $17.99
16 920332058 SNAP RING Price: $1.99
17 920262352 SPACER Price: $2.99
18 130332059 BEARING SMALL END Price: $11.99
19 920431302 PIN Price: $1.99
20 140802057 CRANKCASE Price: $54.99
21 920492259 SEAL OIL ISCD-15-25-7-F Price: $17.99
22 545145462 SCREW PAN WSP 5 X 40 Price: $1.99
23 920452269 BEARING BALL 6302C3 Price: $14.99
24 491192224 CRANKSHAFT ASSY Price: $199.99
