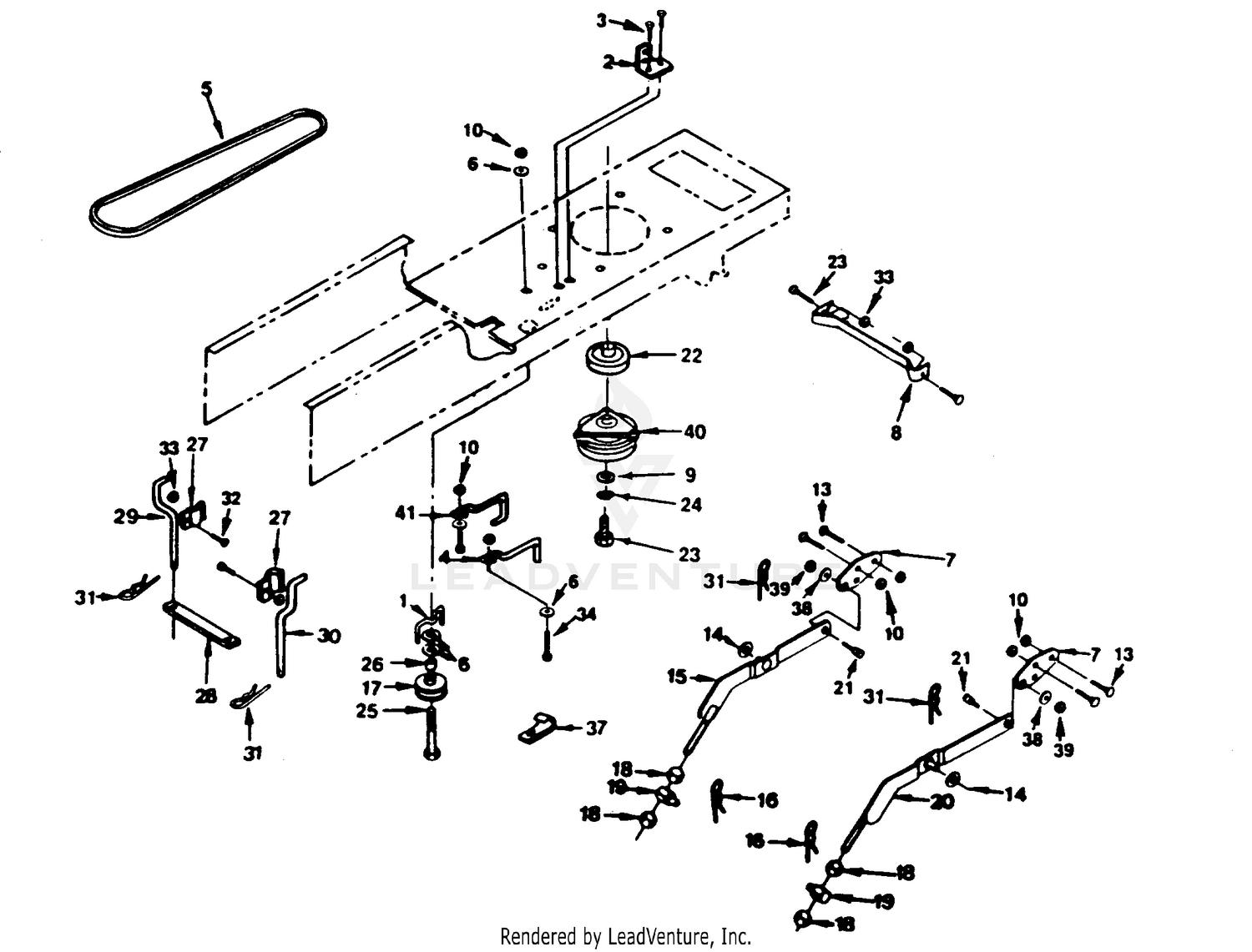

| Ref | Part Number | Description |
|---|
| 1 |
28-4790 |
DISCONTINUED Price: Call Us |
| 1 |
532109070 |
Belt Keeper (AYP part number) Price: $3.99 |
| 2 |
532108236 |
Switch Bracket (AYP part number) Price: $2.99 |
| 3 |
817021008 |
Tapping Hex Screw (AYP part number) Price: $1.99 |
| 4 |
532105730 |
R.H. Engine Belt Keeper (AYP part number) Price: $2.99 |
| 5 |
532125907 |
Drive V-Belt (AYP part number) Price: $27.99 |
| 6 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 7 |
532105864 |
Suspension Bracket (AYP part number) Price: $2.38 |
| 8 |
532109169 |
Clutch Retainer (AYP part number) Price: $17.99 |
| 9 |
532108252 |
Washer (AYP part number) Price: $3.33 |
| 10 |
873680600 |
Crownlock Nut Price: $1.99 |
| 12 |
871130768 |
Bolt, Hex 7/16-20 x 4-1/4 Grade 8 (AYP part number) This part replaces 874610764. Price: Call Us |
| 13 |
872140606 |
Sq. Neck Round Hd. Bolt (AYP part number) Price: $3.99 |
| 14 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 15 |
532121599 |
L.H. Suspension Arm Assembly (AYP part number) Price: $21.14 |
| 16 |
532009135 |
Spring Retainer (AYP part number) Price: $2.99 |
| 17 |
532123674 |
Flat Idler (AYP part number) Price: $17.99 |
| 18 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 19 |
532175689 |
TRUNNION This part replaces 532106308. Price: $2.99 |
| 20 |
532121598 |
R.H. Suspension Arm Assembly (AYP part number) Price: $14.99 |
| 21 |
532105848 |
Shoulder Bolt (AYP part number) Price: $2.02 |
| 22 |
532140189 |
Pulley, Engine (AYP part number) This part replaces 532109841. Price: $29.99 |
| 23 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 24 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 25 |
874760644 |
Hex Bolt 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 26 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 27 |
532106190 |
Clamp (AYP part number) Price: $4.62 |
| 28 |
532123770 |
Locater Strap (AYP part number) Price: $4.62 |
| 29 |
532123662 |
L.H. Belt Keeper (AYP part number) Price: $20.17 |
| 30 |
532123663 |
R.H. Belt Keeper (AYP part number) Price: $20.17 |
| 31 |
532004921 |
Retainer Spring (AYP part number) Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 34 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 38 |
532110739 |
Spring Washer (AYP part number) Price: $2.99 |
| 39 |
873680600 |
LOCKNUT This part replaces 873980600. Price: $1.99 |
| 40 |
532142600 |
KIT CLUTCH ELECT REPL This part replaces 532108218. Price: $329.99 |
