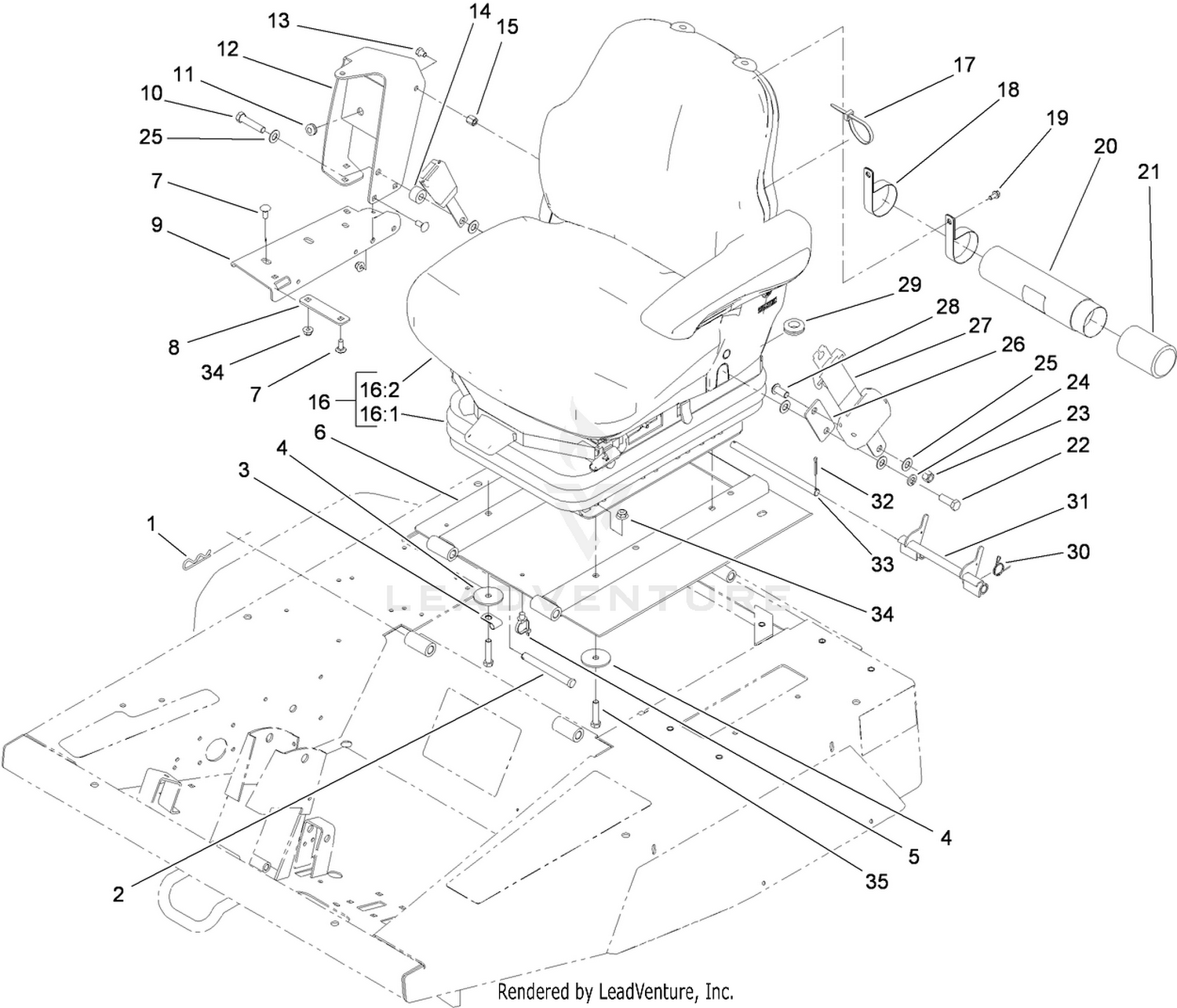

Seat Base and Seat Assembly

Ref	Part Number	Description
1	3290-355	PIN-HAIR Price: $2.09
2	283-83	PIN-CLEVIS Price: $9.52
3	2412-113	CLAMP-R Price: $0.75
4	83-1040	WASHER-FLAT Price: $2.31
5	32180-030	CLIP-TIE Price: $4.19
6	117-5727-03	PLATE-SEAT Price: $350.86
7	3230-23	SCREW-CARR Price: $0.89
8	112-7449	STRAP-SUPPORT This part replaces 112-7449-03. Price: $7.18
9	119-0000-03	CHANNEL-SUPPORT Price: $42.04
10	3212-8	SCREW-HH Price: $5.69
11	237-136	GROMMET Price: $3.52
12	117-4798-03	ARM-SUPPORT Price: $114.47
13	108-8646	SCREW-HH, LOCK Price: $2.85
14	17-7190	SPACER-FINGER Price: $6.51
15	112-7405	NUT-HEX, COUPLING Price: $33.55
17	3290-378	TIE-CABLE Price: $0.79
18	2412-133	CLAMP-R Price: $3.19
19	32104-116	SCREW-HWHTF Price: $0.55
20	104-7050	TUBE-MANUAL Price: $8.76
21	104-7048	CAP-HOUSING Price: $5.21
22	3212-5	SCREW-HH Price: $2.46
23	3296-48	NUT-LOCK, NI Price: $0.37
24	3253-6	WASHER-LOCK Price: $0.39
25	3256-25	WASHER-FLAT Price: $0.25
26	108-1516	MOUNT-BELT, SEAT Price: $14.37
27	110-0413	SEATBELT-RETRACTABLE Price: $286.99
28	3274-105	SCREW-HSBH Price: $7.79
29	100-4866	GROMMET Price: $13.73
30	93-5367	SPRING-TORSION Price: $30.35
31	115-6696	LATCH Price: $103.58
32	3272-11	PIN-COTTER Price: $0.99
33	93-5366	SHAFT-LATCH Price: $34.55
34	104-8301	NUT-HF, NI Price: $1.09
