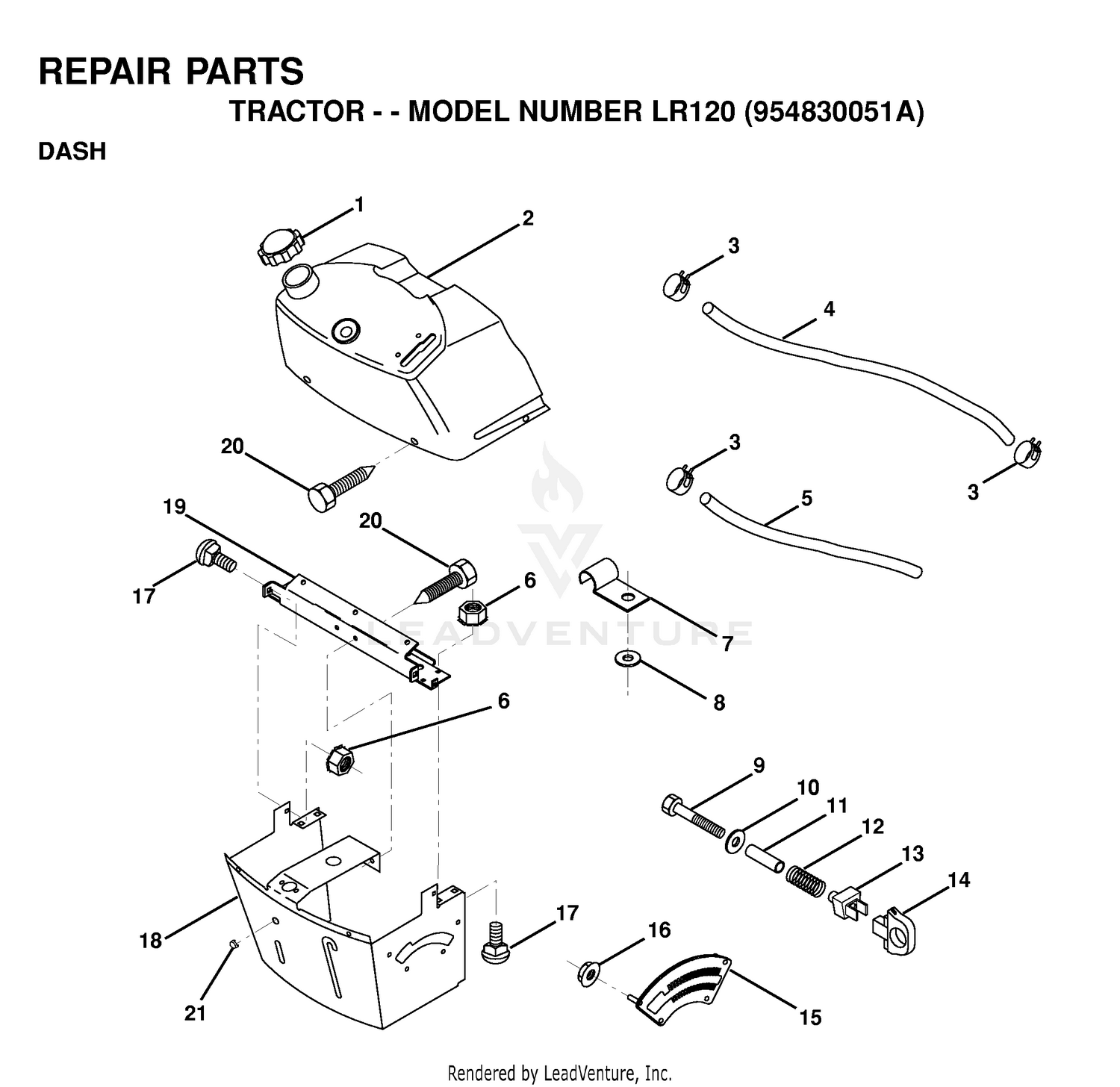

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 1 |
532142187 |
CAP.FUEL.GREY Price: $9.99 |
| 2 |
532138394 |
TANK ASM DASH LR Price: $101.99 |
| 3 |
32153-5 |
NUT-HEX Price: $1.59 |
| 3 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 4 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
532000295 |
FUEL LINE This part replaces 532008544. Price: $5.74 |
| 5 |
47-3800-01 |
STRAP-LOCKING This part replaces 47-3800. Price: $156.60 |
| 5 |
532008548 |
FUEL LINE T Price: $6.99 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
47-3480-03 |
SMV BRKT This part replaces 47-3480. Price: $36.01 |
| 8 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 9 |
38--6200 |
Socket-Slow Moving Veh. Price: Call Us |
| 9 |
874760432 |
BOLT.HEX.FINISHED.1/4-20 This part replaces 874760428. Price: $7.99 |
| 10 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 10 |
596135301 |
Washers This part replaces 819091413. Price: $2.99 |
| 11 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 11 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 12 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 13 |
325-18 |
SCREW-HH Price: $3.19 |
| 13 |
532126450 |
KNOB HGT RETAINER Price: $3.99 |
| 14 |
20-4390 |
SPACER Price: $12.54 |
| 14 |
532126115 |
KNOB Price: $3.99 |
| 15 |
47-3990 |
DECAL Price: $19.68 |
| 15 |
532122023 |
ADJUSTER QUAD Price: $9.99 |
| 16 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-7520. Price: $880.23 |
| 16 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 17 |
872110404 |
BOLT Price: $7.99 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
532130745 |
SUPT ASSY DASH Price: $23.04 |
| 19 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 19 |
532134744 |
CROSS BRACE Price: $9.17 |
| 20 |
8-1280-01 |
REAR CROSS CHANNEL ASM This part replaces 8-1280. Price: $998.35 |
| 20 |
817060408 |
SCREW Price: $4.99 |
| 21 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 21 |
532134014 |
PLUG DOME Price: $2.99 |
| 22 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 23 |
49-8170 |
SPACER Price: $27.34 |
| 24 |
3290-216 |
WASHER Price: $3.83 |
| 25 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 26 |
325-6 |
SCREW-HH Price: $1.42 |
| 27 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 28 |
3-0144 |
SHAFT Price: $53.89 |
| 29 |
65-2710 |
PLATE-INFORMATION Price: $19.40 |
| 30 |
3290-274 |
RIVET-POP Price: $0.25 |
