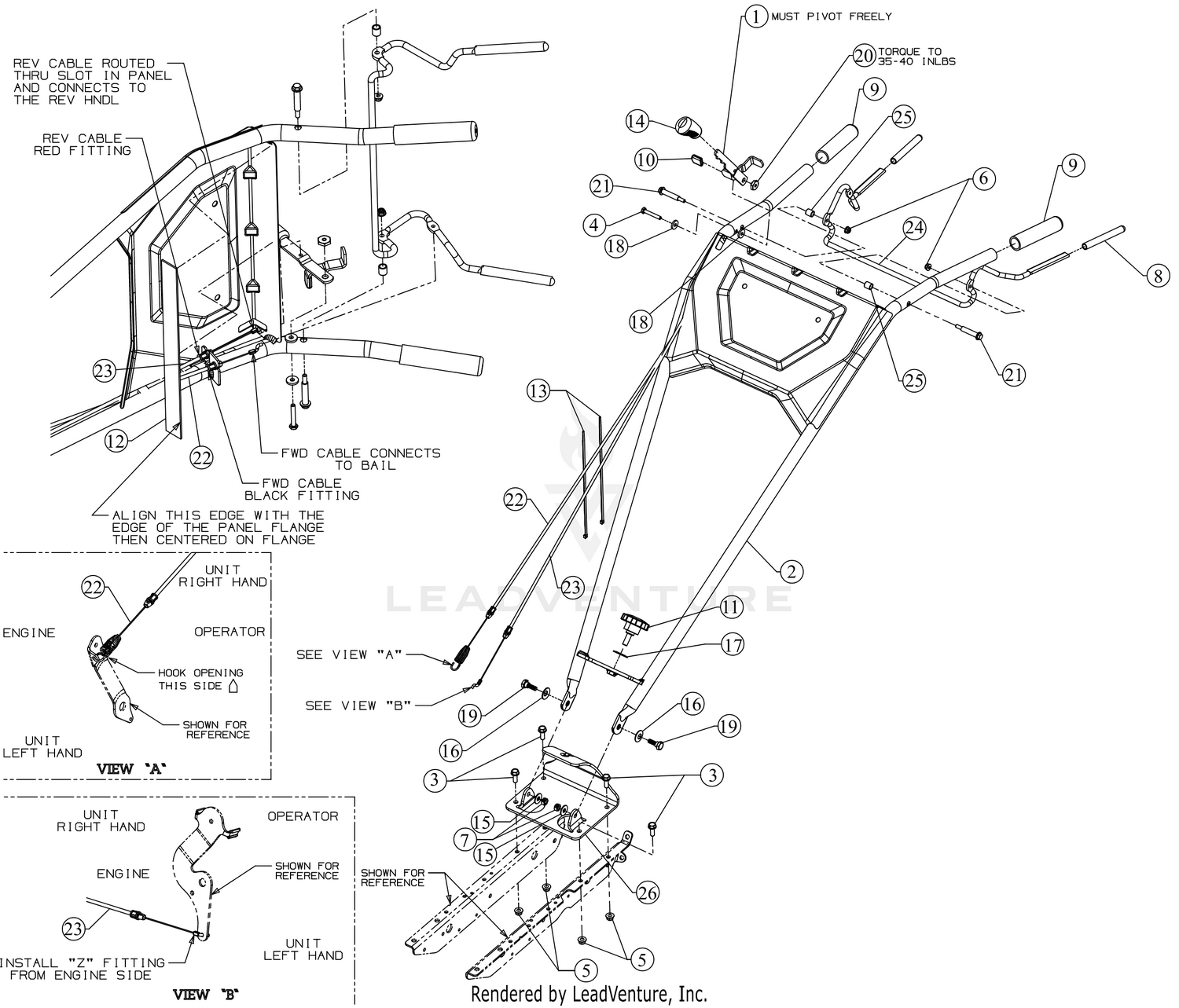

| Ref | Part Number | Description |
|---|
| 1 |
686-04135 |
REVERSE HANDLE ASSEMBLY This part replaces 686-04135-0638. Price: $19.56 |
| 2 |
686-05007A-0638 |
HANDLE ASSEMBLY (MTD RED) This part replaces 686-05007-0638. Price: $167.10 |
| 3 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 4 |
710-3288 |
BOLT 1/4-20X1.62 GR5 Price: $5.94 |
| 5 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 6 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 7 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 912-3009. Price: $5.99 |
| 8 |
720-0269 |
CLUTCH GRIP Price: $4.24 |
| 9 |
720-0274 |
GRIP Price: $9.99 |
| 10 |
920-04173 |
GRIP Price: $3.70 |
| 11 |
720-05076 |
STAR KNOB 3/8-16 Price: $16.59 |
| 12 |
721-04687 |
TAPE FOAM 1.25 X 13.53 X .10 Price: $11.07 |
| 13 |
726-04047 |
CABLE TIE Price: $3.18 |
| 14 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 15 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 16 |
736-0407 |
BELL WASHER Price: $3.64 |
| 17 |
736-0741 |
BELL WASHER Price: $3.99 |
| 18 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95 |
| 19 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 20 |
738-0440 |
SHOULDER SPACER Price: $5.45 |
| 21 |
738-05077 |
SHOULDER SCREW .375 X 1.62 X 1/4-20 Price: $5.52 |
| 22 |
946-04413A |
FORWARD CABLE Price: $30.97 |
| 23 |
946-04414A |
REVERSE CABLE Price: $34.13 |
| 24 |
747-06372-0638 |
CLUTCH BAIL (MTD RED) Price: $36.20 |
| 25 |
750-06198 |
SPACER Price: $5.52 |
