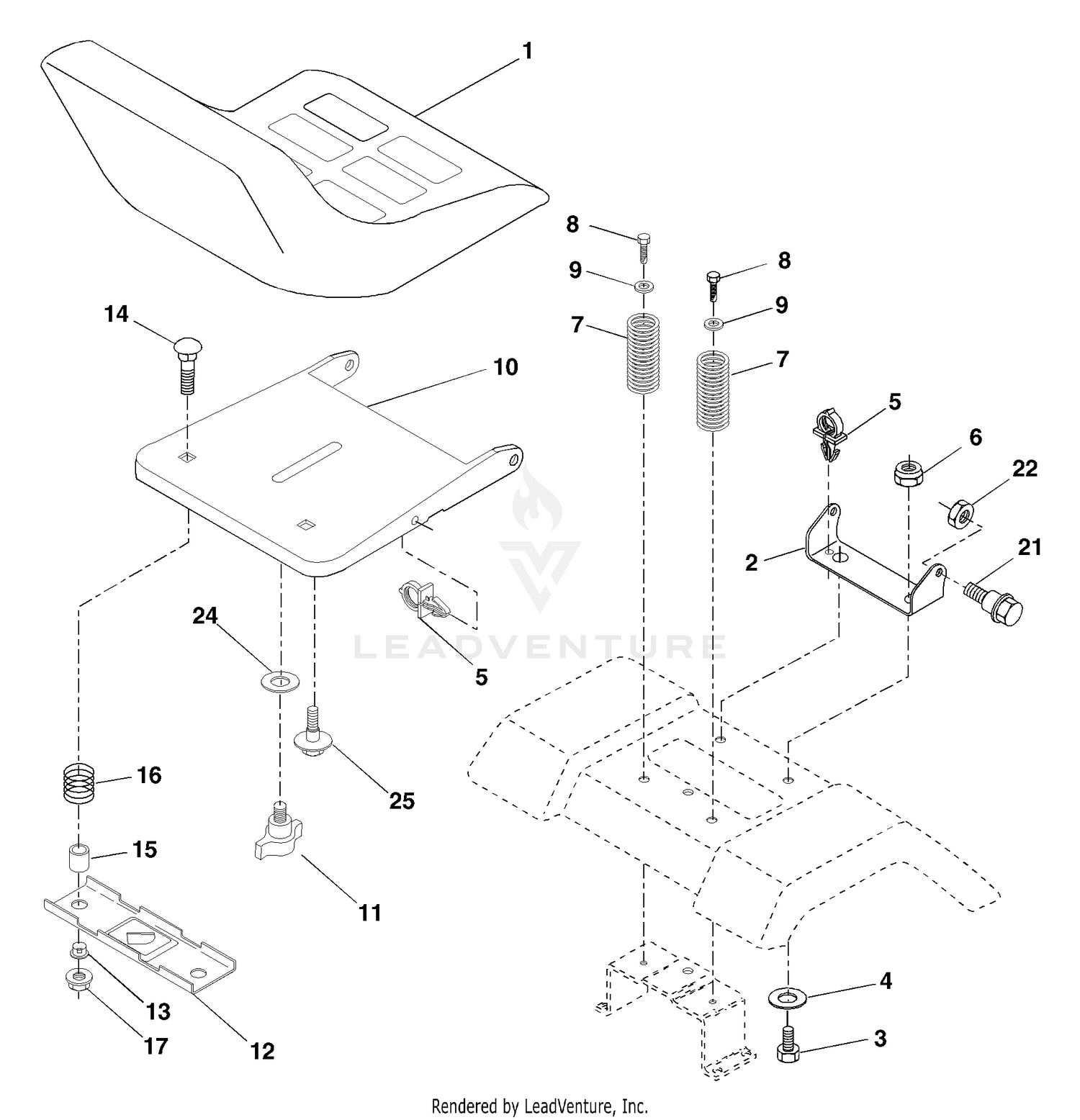

| Ref | Part Number | Description |
|---|
| 1 |
171683 |
Seat Price: Call Us |
| 1 |
95-7539 |
CASE-GEAR, BEVEL Price: $212.14 |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 2 |
99-7594 |
SEAL-OIL Price: $5.99 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16unc X 1 Price: Call Us |
| 3 |
99-7595 |
BEARING-NEEDLE Price: $118.02 |
| 4 |
104-2376 |
KNUCKLE ASM This part replaces 95-7511. Price: $68.43 |
| 4 |
19131610 |
Washer 13/32 X 1 X 10 Ga Price: Call Us |
| 5 |
104-2376 |
KNUCKLE ASM This part replaces 95-7510. Price: $68.43 |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 6 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 7 |
110-4757 |
LH AXLE CASE SUPPORT ASM This part replaces 95-7514. Price: $275.48 |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1.5Smgml Price: Call Us |
| 9 |
19131614 |
Washer 13/32 X 1 X 14 Ga. Price: Call Us |
| 9 |
99-7529 |
BUSHING Price: $16.99 |
| 10 |
174894 |
Pan Seat Price: Call Us |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 11 |
166369 |
Knob Seat Price: Call Us |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 12 |
99-7598 |
BOLT Price: $7.67 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20x1-1/2 Price: Call Us |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
134300 |
Spacer Split 28x 88 Price: Call Us |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 X 12 Ga. Price: Call Us |
