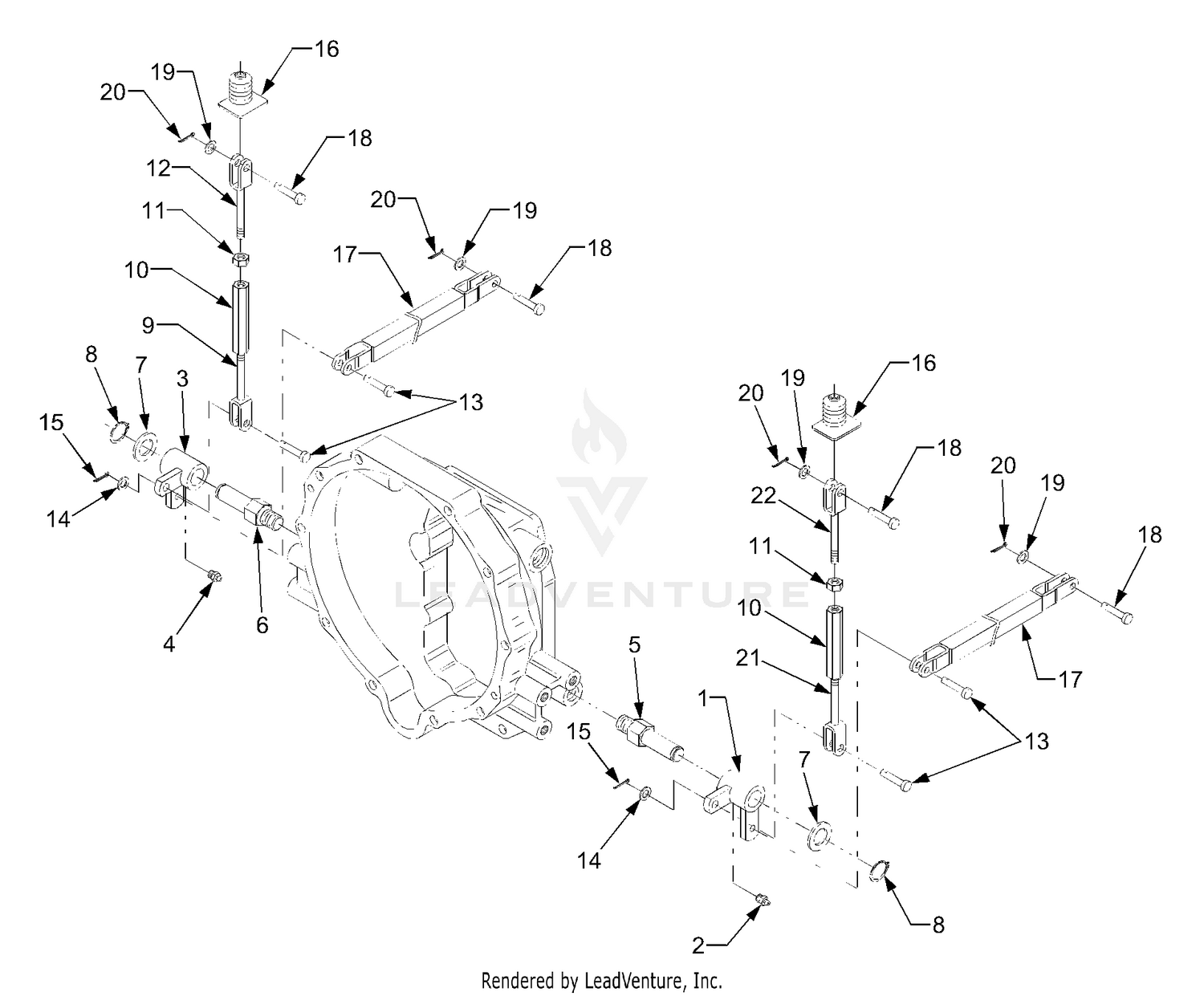

Brake Rod Group
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33106-035 | SCREW-HHF Price: $8.35 |
| 1 | DD-T2610-55781 | ARM-BRAKE (LH) Not Available Price: |
| 2 | 83-7430 | DISCONTINUED Price: Call Us |
| 2 | 84-4300 | DISCONTINUED Price: Call Us |
| 2 | 93-8050 | DECAL-ROOF, ROPS Price: $43.06 |
| 2 | DD-06611-15675 | GREASE FITTING Not Available Price: |
| 3 | 92-7540 | DISCONTINUED-NOT SERVICED Price: Call Us |
| 3 | 93-8073 | DISCONTINUED Price: Call Us |
| 3 | DD-T2610-55791 | ARM-BRAKE (RH) Not Available Price: |
| 4 | 93-9157 | VELCRO-HOOK Price: $10.14 |
| 4 | DD-06611-15675 | GREASE FITTING Not Available Price: |
| 5 | 33104-030 | SCREW-HHF Price: $4.66 |
| 5 | DD-T2610-55802 | BRAKE SHAFT ARM Not Available Price: |
| 6 | 93-9160 | COVER-ROPS Price: $265.09 |
| 6 | DD-T2610-55812 | BRAKE SHAFT ARM Not Available Price: |
| 7 | 94-2643 | ROPS ASM Price: $3,395.01 |
| 7 | DD-04011-50200 | FLAT WASHER Not Available Price: |
| 8 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 8 | DD-04612-50200 | SNAP RING Not Available Price: |
| 9 | DD-T2610-55751 | BRAKE ROD CLEVIS Not Available Price: |
| 10 | DD-32350-28984 | TURNBUCKLE Not Available Price: |
| 11 | DD-02118-50100 | HEX NUT Not Available Price: |
| 12 | DD-T4620-55762 | BRAKE ROD CLEVIS R Not Available Price: |
| 13 | DD-05122-51025 | CLEVIS PIN Not Available Price: |
| 14 | DD-04013-50100 | FLAT WASHER Not Available Price: |
| 15 | DD-05511-50318 | COTTER PIN Not Available Price: |
| 16 | DD-T4620-55821 | BOOT-BRAKE LINKAGE Not Available Price: |
| 17 | DDT261055772BB | BRAKE ROD CAM LEVER Not Available This part replaces DD-T2610-55772. Price: |
| 18 | DD-05122-50828 | CLEVIS PIN Not Available Price: |
| 19 | DD-04012-50080 | FLAT WASHER Not Available Price: |
| 20 | DD-05511-50218 | COTTER PIN Not Available Price: |
| 21 | DD-T4620-55662 | BRAKE ROD CLEVIS L Not Available Price: |
| 503217120 | 503216618 | SCREW This part replaces 503217120. Price: $3.99 |
| 503718201 | 503718201 | START/STOP SWITCH Price: $11.99 |
| 503877901 | 503877903 | THROTTLE TRIGGER This part replaces 503877901. Price: $7.99 |
| 503878001 | 503878001 | THROTTLE LOCK Price: $4.99 |
| 503878501 | 503878501 | WIRE Price: $14.99 |
| 503918101 | 503918101 | LEVER Price: $5.99 |
| 503961301 | 503961301 | SCREW MT5X11 Price: $0.50 |
| 537011301 | 537011301 | SPRING Price: $4.99 |
| 537052501 | 544171701 | THROTTLE CABLE This part replaces 537052501. Price: $19.99 |
| 740420600 | 740420600 | O-RING 8X1.6 Price: $0.17 |
