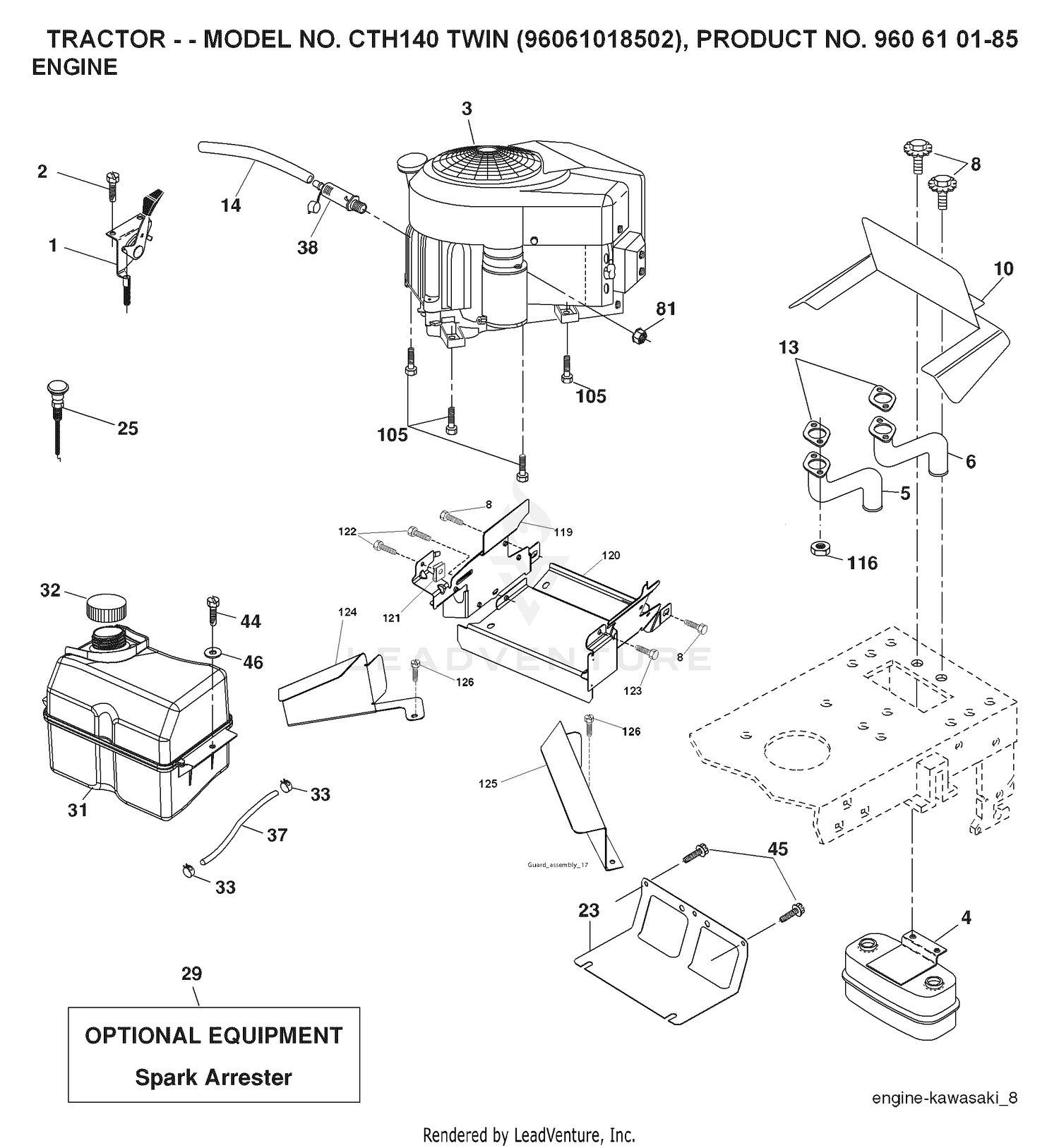

| Ref | Part Number | Description |
|---|
| 1 |
100-4815 |
CABLE-CONTROL, TRACTION Price: $140.70 |
| 1 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 2 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 2 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
322-10 |
SCREW-HH Price: $0.70 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 10 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
2412-41 |
CLAMP-R Price: $4.82 |
| 12 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
140-6255 |
DETENT SLIDER ASM This part replaces 95-8861. Price: $161.79 |
| 16 |
32151-84 |
RING-SHAFT, EXT Price: $1.89 |
| 17 |
41-8440 |
WASHER Price: $1.49 |
| 18 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 19 |
140-6263 |
TRACTION PEDAL ASM This part replaces 104-4852-03. Price: $133.16 |
| 20 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 21 |
140-6251 |
REVERSE PEDAL ASM This part replaces 99-3379. Price: $100.06 |
| 22 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 24 |
99-3476 |
SPRING-EXTENSION Price: $7.11 |
| 25 |
251-259 |
BEARING-BALL Price: $13.67 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
322-7 |
SCREW-HH Price: $0.89 |
| 28 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 29 |
32151-3 |
RING-GRIP Price: $6.49 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 32 |
321-10 |
SCREW-HH Price: $1.29 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 33 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
99-3545 |
SPACER Price: $6.45 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
73-0040 |
WASHER-THRUST Price: $1.29 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 122 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 123 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 124 |
532410524 |
NEEDS DESCRIPTION Price: Call Us |
| 125 |
532410525 |
NEEDS DESCRIPTION Price: Call Us |
| 126 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
