| Ref | Part Number | Description |
|---|
| 1 |
482705 |
Engine, 18HP Honda (Spec GXV610QAF) Price: Call Us |
| 2 |
48030-09 |
Cable Clamp Price: Call Us |
| 3 |
481580 |
Transmission, 5-speed (Peerless 700-070, 9 tooth spline) Price: Call Us |
| 4 |
48231 |
Neutral Safety Switch Price: Call Us |
| 5 |
48122-01 |
Fibre Washer, thin Price: Call Us |
| 5A |
48122-02 |
Fibre Washer, thick Price: Call Us |
| 6 |
481581 |
Coupler, Jackshaft Price: Call Us |
| 7 |
48114-05 |
Grease Fitting, straight 1/4-28 Price: Call Us |
| 8 |
481582 |
Jackshaft (fits SW32,36,48 & 52) Price: Call Us |
| 9 |
04063-09 |
Key, Hi-Pro #9 Price: Call Us |
| 10 |
04003-12 |
Bolt, 5/16-18 X 3/4" Carriage Price: Call Us |
| 11 |
43085 |
Wheel Axle (SW36,48 & 52) Price: Call Us |
| 13 |
04001-08 |
Bolt, 5/16-18 X 3/4" Hex Head Price: Call Us |
| 14 |
04040-14 |
Flat Washer 1/4" (.312 X .75 X .065) Price: Call Us |
| 15 |
04030-03 |
Lock Wshr. 5/16" Price: Call Us |
| 16 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 17 |
461743 |

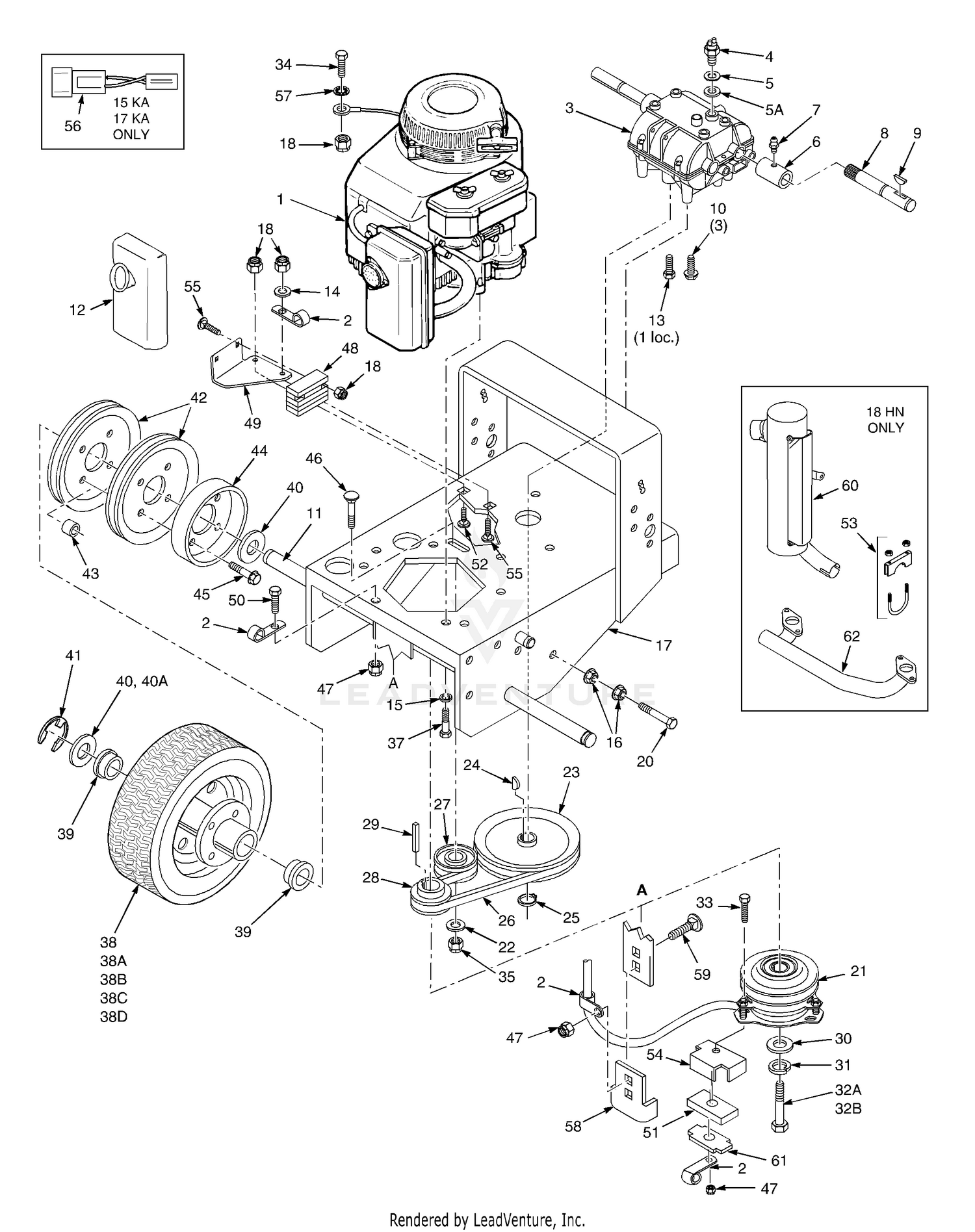

Engine Deck This part replaces 461666. Price: Call Us |
| 20 |
04001-51 |
Bolt, 3/8-16 x 3-3/4" Hex Head Price: Call Us |
| 21 |
461397 |
Electric Clutch (Ogura) Price: Call Us |
| 22 |
04041-07 |
Washer, 3/8" (.391 x .938 x .105) Price: Call Us |
| 23 |
48197 |
Pulley, Transmission Input Price: Call Us |
| 24 |
04063-07 |
Key, Woodruff #9 Price: Call Us |
| 25 |
04050-09 |
Retaining Ring, 5/8" Ext, Basic Price: Call Us |
| 26 |
48203 |
Belt, Transmission Drive Price: Call Us |
| 27 |
483208 |
Pulley, Idler 3" Dia. - 52" This part replaces 481048. Price: Call Us |
| 28 |
481666 |
Pulley, Traction Drive Price: Call Us |
| 29 |
04063-19 |
Key, 1/4 x 1/4 x 3/4" Price: Call Us |
| 30 |
04041-28 |
Flat Washer, 7/16" Special Price: Call Us |
| 31 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 32A |
04102-04 |
Bolt, 7/16-20 x2-1/2" Hex Head Price: Call Us |
| 33 |
04001-12 |
Bolt, 5/16-18 x 1-3/4" Hex Head Price: Call Us |
| 35 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 36 |
04040-15 |
Flat Washer, 5/16" Price: Call Us |
| 38A |
481860 |
Tire, 13 x 6.50-6, 2-ply (fits SW36,48,52) Price: Call Us |
| 39 |
481858 |
Wheel Bearing (OD 2.000 - 2.005) Price: Call Us |
| 40 |
04042-05 |
Washer, 1-1/16 x 1-3/4 x 12 ga Price: Call Us |
| 40A |
04041-14 |
Washer, 1-1/16 x 1-1/2 x 18 ga Price: Call Us |
| 41 |
04050-08 |
Retaining Ring, 1" Ext.- "E" Price: Call Us |
| 42 |
48200 |
Pulley, Wheel Drive Price: Call Us |
| 43 |
43088 |
Spacer, Wheel Pulley Price: Call Us |
| 44 |
48209 |
Brake Drum Price: Call Us |
| 45 |
04017-19 |
Bolt, 5/16-18 x 1-1/2" Serrated flange Price: Call Us |
| 46 |
04003-03 |
Bolt, 3/8-16 x 2" Carriage Price: Call Us |
| 47 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 49 |
423943 |
Mounting Bracket, Rectifier Price: Call Us |
| 50 |
04001-09 |
Bolt, 5/16-18 x 1" Hex Head Price: Call Us |
| 51 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 52 |
04003-02 |
Bolt, 1/4-20 x 3/4" Carriage Price: Call Us |
| 53 |
482903 |
Clamp, Muffler Price: Call Us |
| 54 |
422533 |
Backing Plate Price: Call Us |
| 55 |
04003-06 |
Bolt, 1/4-20 x 1" Carriage Price: Call Us |
| 60 |
482901 |
Muffler Price: Call Us |
| 61 |
422534 |
Plate, Backing Price: Call Us |
