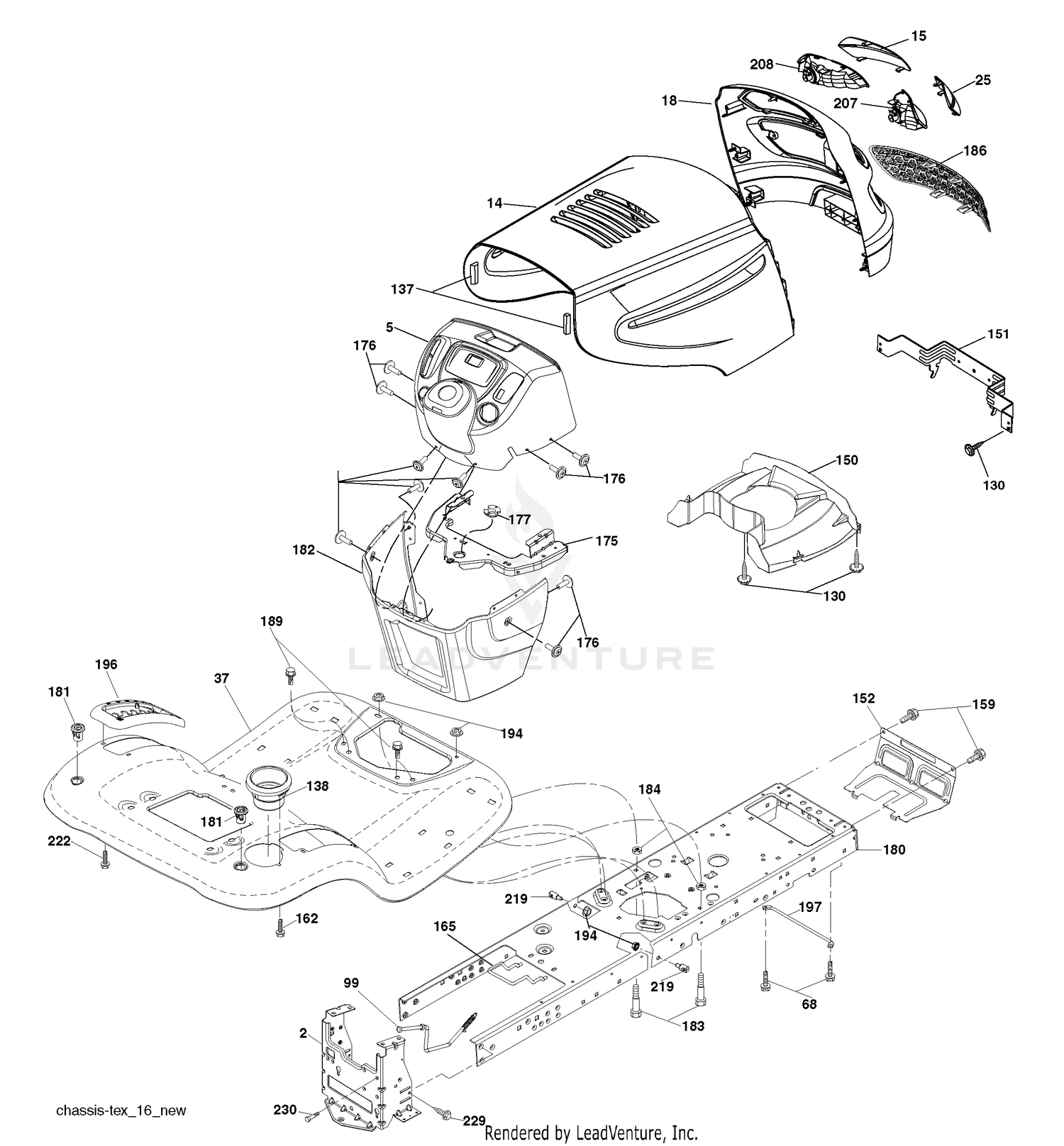

Chassis

Chassis

Parts (41)

RefPart NumberDescription
2 194263 Drawbar Price: Call Us
2 93-7592 TREAD-REST, FOOT Price: $13.96
3 75-0620 TREAD-FOOT, LH Price: $24.33
4 104-5223 TREAD-FOOT, RH Price: $16.15
5 199646X428 Dash Price: Call Us
5 93-6693 DECAL-PLATE, FLOOR Price: $10.84
6 93-6699 DECAL-FAST / SLOW Price: $18.07
14 183393X428 Hood Price: Call Us
15 183834X599 Lens Grille LH Price: Call Us
25 183835X599 Lens Grille RH Price: Call Us
37 401120 Fender Price: Call Us
68 17490508 Screw THDROL 5/16-18 x 1/2 Price: Call Us
99 405092 Rod Bypass Asm Price: Call Us
130 191611 Screw 10 x 3/4 Single Lead-Hex Price: Call Us
137 184921 Bumper Hood Price: Call Us
138 193224X428 Cupholder Price: Call Us
150 189350 Duct Heat Hood Price: Call Us
151 407807 Bracket Pivot Price: Call Us
152 194329 Shield Browning/Debris Price: Call Us
159 17000612 Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 UNC Price: Call Us
165 194330 Bracket Support Tank Price: Call Us
175 193243 Crossmember Price: Call Us
176 400776 Screw 10-24 x 5/8 Wshd Qdrx Price: Call Us
177 195227 Bushing Steering Price: Call Us
180 194260 Chassis Price: Call Us
181 193102X428 Bushing Mtg. Fender Crgo. Price: Call Us
182 193057 Dash Lower Price: Call Us
183 74780520 Bolt Fin Hex 5/16-18 x 1-1/4 Price: Call Us
184 406129 Spacer Fender Price: Call Us
186 183829X428 Insert Grille Price: Call Us
189 17060512 Screw 5/16-18 x 3/4 Price: Call Us
194 73900500 Nut Lock Hex Flange 5/16-18 Price: Call Us
196 401584 Console Asm. Deck Lift Price: Call Us
197 156524 Rod Pivot Chassis Price: Call Us
207 183833 Bezel RH Price: Call Us
208 183832 Bezel LH Price: Call Us
219 195161 Stud Fastener Price: Call Us
222 137729 Screw thd Roll 1/4-20 x 5/8 Price: Call Us
229 17000616 Screw 3/8-16 x 1 Price: Call Us
230 170165 Bolt Shoulder 5/16-18 Price: Call Us
