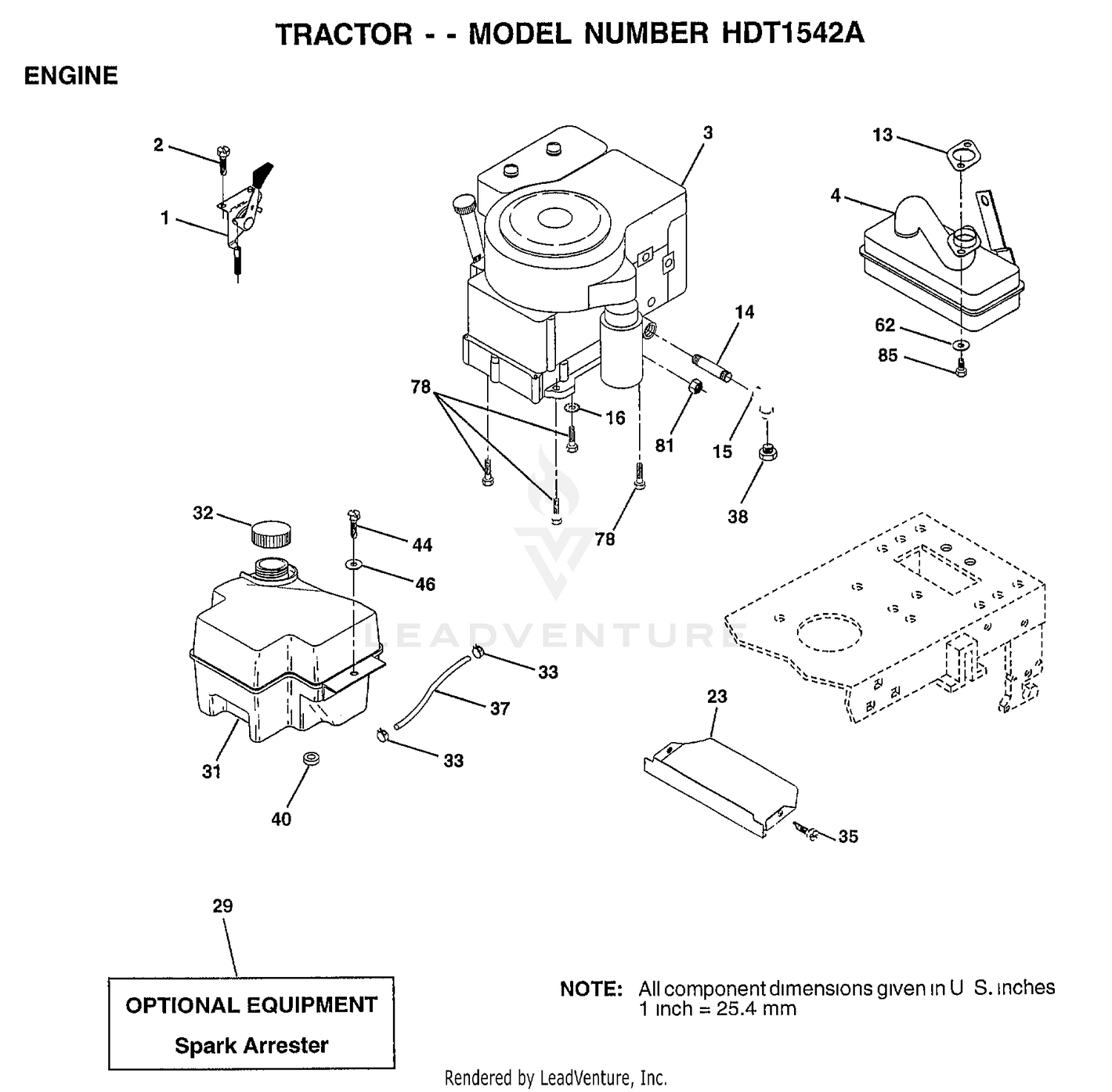

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 1 |
92-9200 |
COVER Price: $276.63 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 3 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 4 |
137351 |
MUFFLER Price: Call Us |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
65-5890 |
CAP-END Price: $8.09 |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
65-5870 |
TUBE Price: $20.33 |
| 12 |
55-4660 |
ARMREST Price: $488.24 |
| 13 |
149272 |
GASKET MUFFLE TEC Price: Call Us |
| 13 |
56-3850 |
SCREW Price: $3.37 |
| 14 |
115-2030 |
SEAT KIT - RM4000 This part replaces 77-4860. Price: $1,616.82 |
| 14 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 22 |
32128-21 |
NUT-HF Price: $0.39 |
| 23 |
159880 |
SHIELD.BRN/DBR.GD Price: Call Us |
| 23 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
58-1580-03 |
FRAME-SEAT Price: $402.10 |
| 31 |
161911 |
TANK.FUEL.FRONT. Price: Call Us |
| 31 |
58-9830-03 |
PLATE-SEAT Price: $355.56 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 32 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 34 |
2412-102 |
CLAMP-R Price: $6.85 |
| 35 |
17060512 |
SCREW Price: Call Us |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
71-4040 |
HYD FILLER ASM Price: $69.67 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 37 |
58-6820 |
GASKET Price: $13.28 |
| 38 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 78 |
17060620 |
SCREW Price: Call Us |
| 81 |
128861 |
NUT Price: Call Us |
