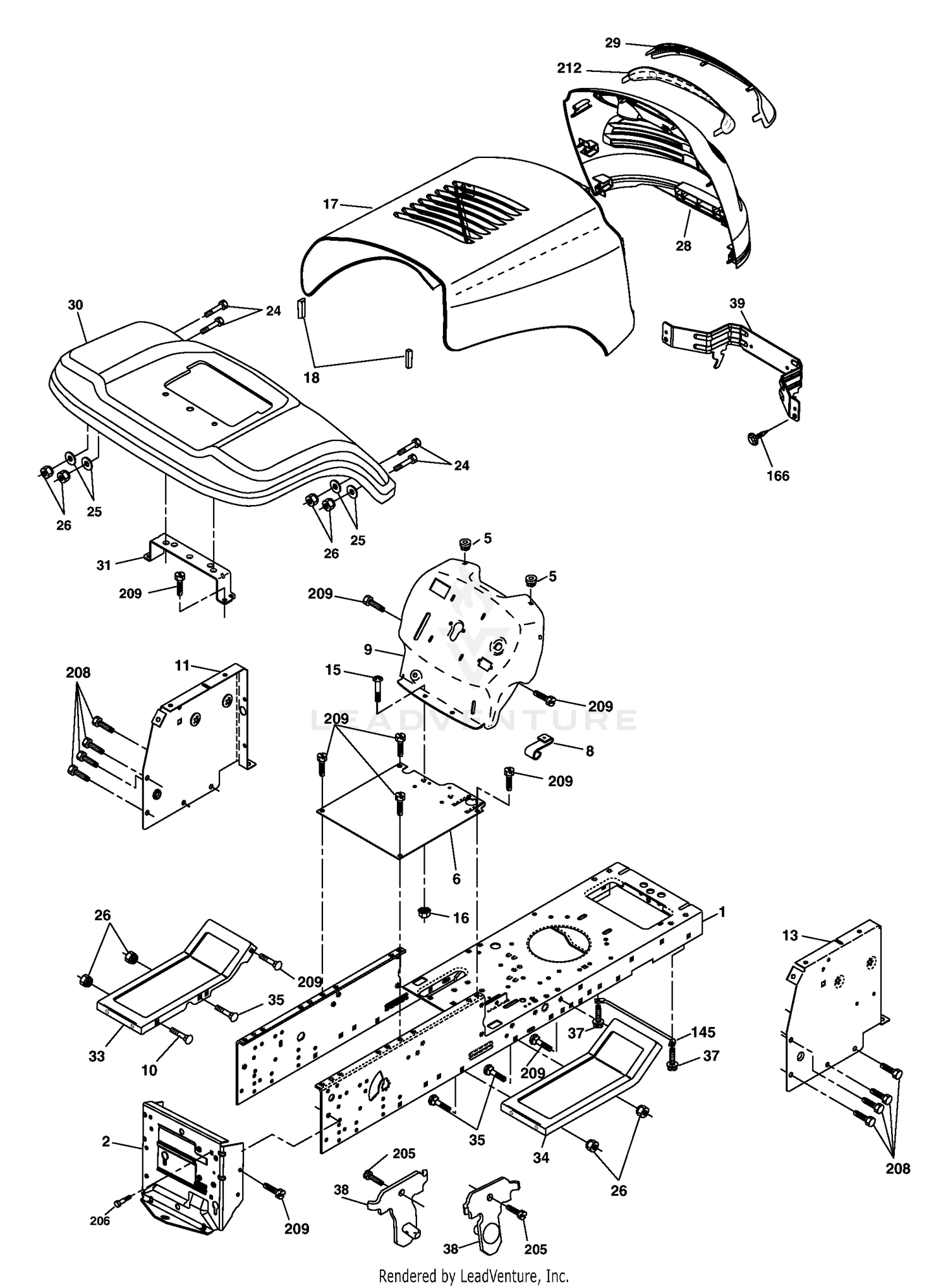

| Ref | Part Number | Description |
|---|
| 1 |
105-7150-03 |
PEDAL ASM Price: $173.85 |
| 1 |
174620 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
92-8854-03 |
PIVOT BRACKET ASM Price: $81.10 |
| 6 |
184419 |
Saddle Price: Call Us |
| 6 |
3220-3 |
NUT-HJ Price: $0.28 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 8 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 9 |
193518X013 |
Dash Price: Call Us |
| 9 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
92-5534 |
SHAFT-PEDAL, TRACTION Price: $55.59 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
5-7570 |
WASHER-FLAT Price: $6.19 |
| 12 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 13 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 14 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 15 |
92-5537 |
PIN-PEDAL, TRACTION Price: $41.17 |
| 16 |
3217-6 |
NUT-HEX Price: $1.19 |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 17 |
187559X550 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 19 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 21 |
32128-56 |
NUT-HF Price: $1.09 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
323-29 |
SCREW-HH Price: $0.42 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Bar Price: Call Us |
| 30 |
192525X550 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 33 |
179716X550 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X550 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
183823 |
Insert Lens Reflect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 5479J |
Plug |
Button Blk 359 Dia Choke Price: Call Us 5479J |
