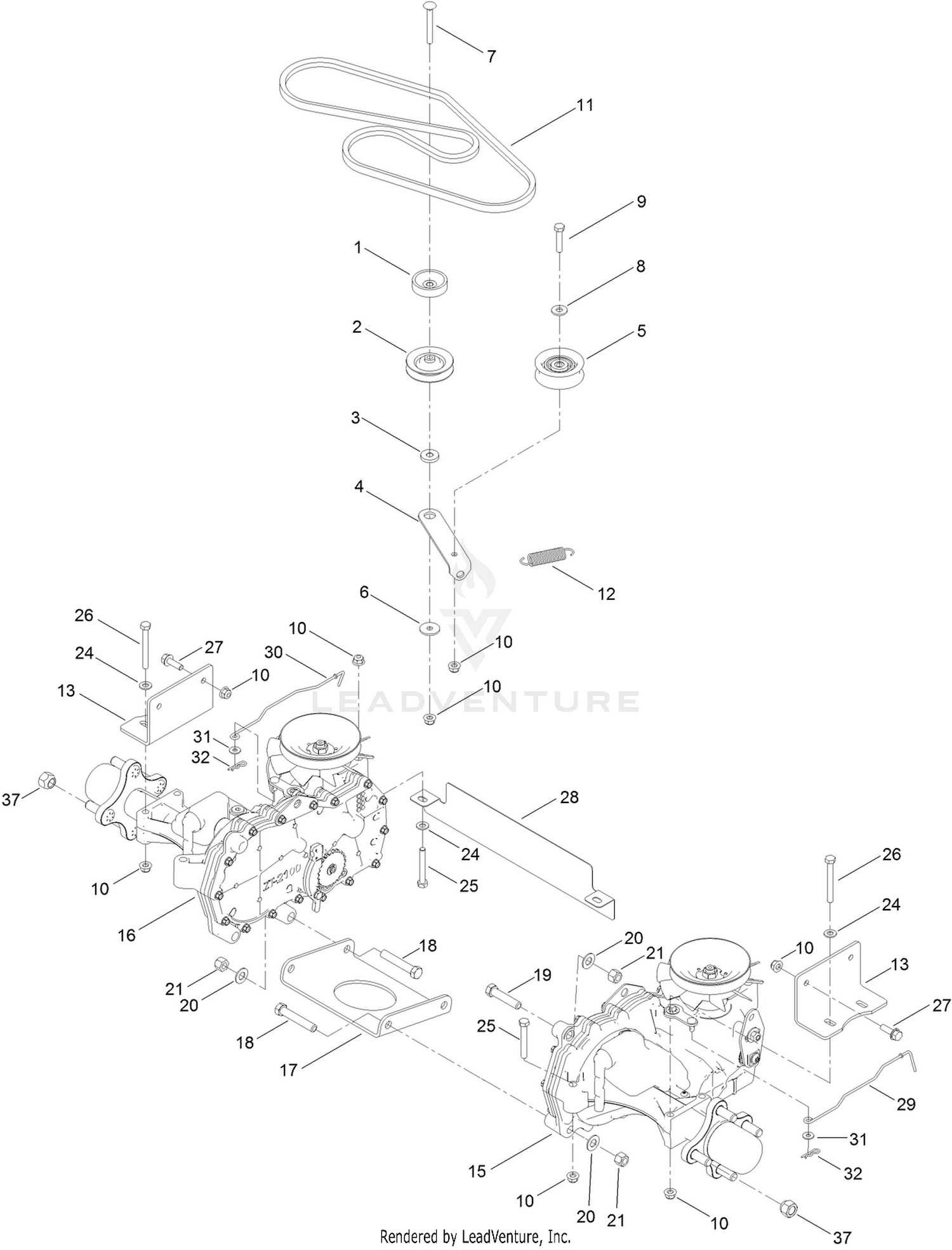

Traction Drive Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-3353 | SPACER Price: $7.02 |
| 2 | 119-8822 | PULLEY-IDLER Price: $17.50 |
| 3 | 138-7277 | SPACER-ARM, IDLER Price: $1.01 |
| 4 | 138-7276 | ARM-IDLER Price: $3.74 |
| 5 | 138-7597 | PULLEY-IDLER, FLAT Price: $10.22 |
| 6 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 7 | 139-2588 | SCREW-CARR Price: $1.12 |
| 8 | 139-1723 | WASHER-FLAT Price: $0.29 |
| 9 | 120-2779 | SCREW-HH Price: $0.54 |
| 10 | 119-4041 | NUT-HF Price: $0.48 |
| 11 | 130-6975 | V-BELT Price: $26.26 |
| 12 | 137-7040 | SPRING-RETURN, PEDAL Price: $4.89 |
| 13 | 117-7264-03 | MOUNT-HYDRO Price: $6.41 |
| 15 | 119-3330 | LH HYDRO TRANSAXLE ASM Price: $876.54 |
| 16 | 119-3331 | RH HYDRO TRANSAXLE ASM Price: $876.54 |
| 17 | 119-3339-03 | PLATE-CROSS, HYDRO Price: $15.74 |
| 18 | 139-2603 | SCREW-HH Price: $1.46 |
| 19 | 139-2605 | SCREW-HH Price: $1.36 |
| 20 | 139-2610 | WASHER-FLAT Price: $0.29 |
| 21 | 119-4039 | NUT-HEX, NI Price: $0.28 |
| 24 | 120-9683 | WASHER-PLAIN Price: $0.25 |
| 25 | 120-9738 | SCREW-HH Price: $0.84 |
| 26 | 139-2583 | SCREW-HH Price: $0.67 |
| 27 | 139-2596 | SCREW-HHF Price: $0.78 |
| 28 | 131-3668-03 | GUARD REAR, NARROW Price: $10.00 |
| 29 | 138-7243 | ROD-BYPASS, LH Price: $5.32 |
| 30 | 138-7245 | ROD-BYPASS, RH Price: $5.32 |
| 31 | 119-8952 | WASHER Price: $0.77 |
| 32 | 137-3083 | PIN-HAIR Price: $0.34 |
