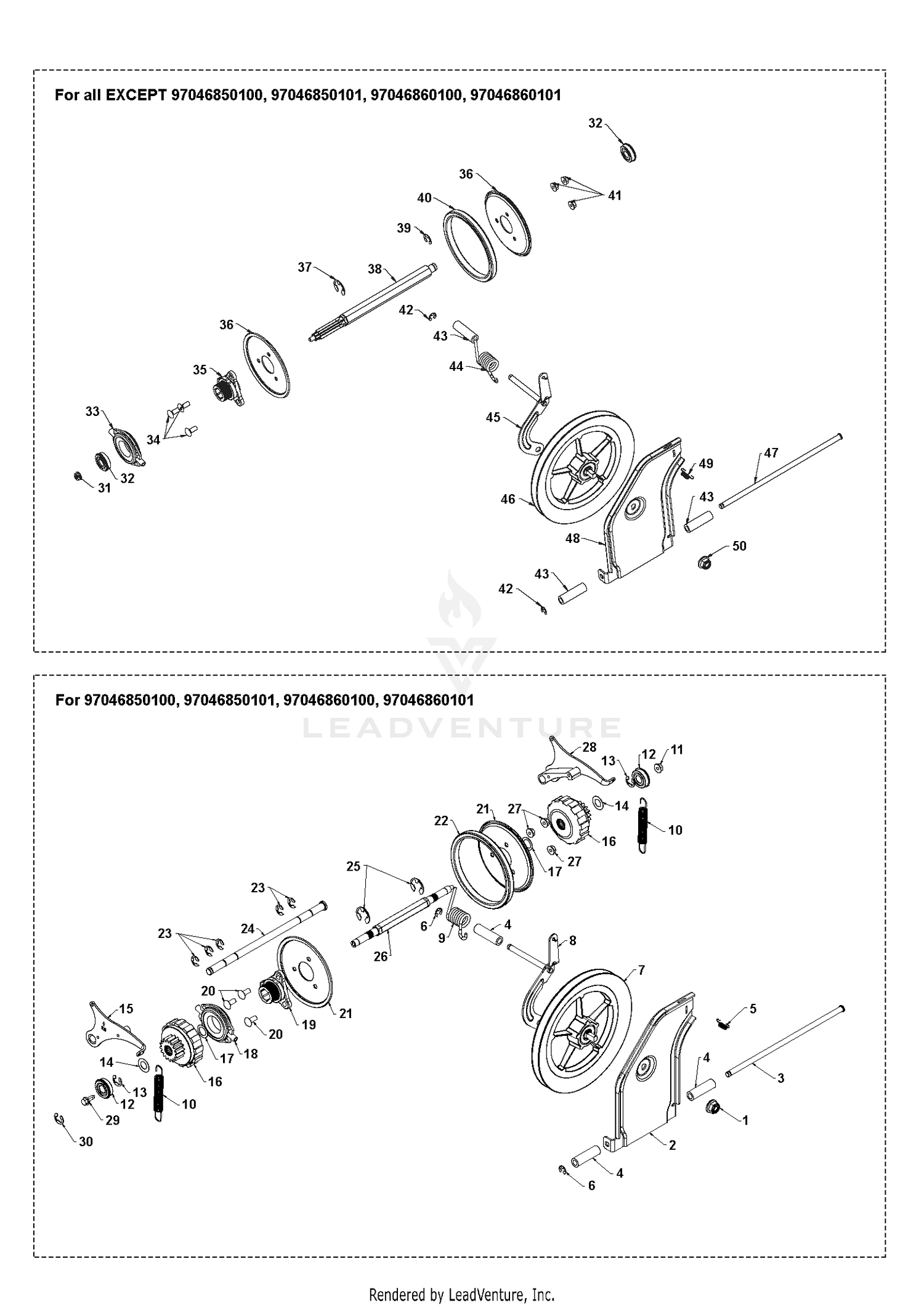

| Ref | Part Number | Description |
|---|
| 5 |
532193885 |
SPRING LATCH Price: $3.99 |
| 6 |
595841101 |
RETAINER RING E-RING CLEAR ZI Price: $1.99 |
| 8 |
581454203 |
BRACKET YOKE WELDMENT_MS 479 Price: $5.99 |
| 10 |
585263801 |
SPRING EXTENSION PS Price: $4.99 |
| 11 |
585691501 |
NUT.HEX.FLANGE.LOCK.5/16-18 Price: $2.99 |
| 12 |
580756201 |
BEARING 9/16 ID. SNR Price: $5.99 |
| 13 |
580756102 |
RING.RETAINING.1622-2RSNR.CLER Price: $2.99 |
| 14 |
580751301 |
WASHER FLAT.637IDX1.00ODX21GA Price: $2.99 |
| 15 |
580756601 |
PAWL.ASM.RH.SNOW Price: $14.99 |
| 16 |
580756001 |
GEAR.ASM.PLANETARY Price: $64.99 |
| 17 |
580756301 |
WASHER FLAT.59IDX1.065ODX25GA Price: $2.99 |
| 19 |
588069201 |
HUB.ASM.RUBBER WHEEL.SNO Price: $32.99 |
| 20 |
539109100 |
RHSNB 5/16-18 X 3/4 Price: $3.99 |
| 21 |
581091002 |
PLATE.RUBBER.WHEEL.BLACK Price: $9.99 |
| 23 |
586644301 |
CLIP E-RING_.500 SHAFT Price: $2.99 |
| 24 |
580755101 |
ROD ROD, PAWL ROD Price: $8.99 |
| 27 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 28 |
580756701 |
PAWL.ASM.LH.SNOW Price: $14.99 |
| 31 |
585691501 |
NUT.HEX.FLANGE.LOCK.5/16-18 Price: $2.99 |
| 32 |
580756201 |
BEARING 9/16 ID. SNR Price: $5.99 |
| 34 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 35 |
588069201 |
HUB.ASM.RUBBER WHEEL.SNO This part replaces 581090901. Price: $32.99 |
| 36 |
581091002 |
PLATE.RUBBER.WHEEL.BLACK Price: $9.99 |
| 37 |
812000022 |
E-RING Price: $3.99 |
| 38 |
581121901 |
SHAFT SHAFT,7T REDUCTION Price: $54.99 |
| 39 |
580756102 |
RING.RETAINING.1622-2RSNR.CLER Price: $2.99 |
| 40 |
597362801 |
Friction Drive This part replaces 581091101. Price: $11.99 |
| 41 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 42 |
595841101 |
RETAINER RING E-RING CLEAR ZI Price: $1.99 |
| 43 |
581732701 |
SPACER YOKE, TORSION SPRING Price: $3.99 |
| 44 |
581315301 |
SPRING TORSION DRIVE Price: $3.99 |
| 45 |
581454203 |
BRACKET YOKE WELDMENT_MS 479 Price: $5.99 |
| 46 |
581328401 |
PULLEY.FRICTION.DISC.COMBO Price: $24.99 |
| 49 |
532193885 |
SPRING LATCH Price: $3.99 |
