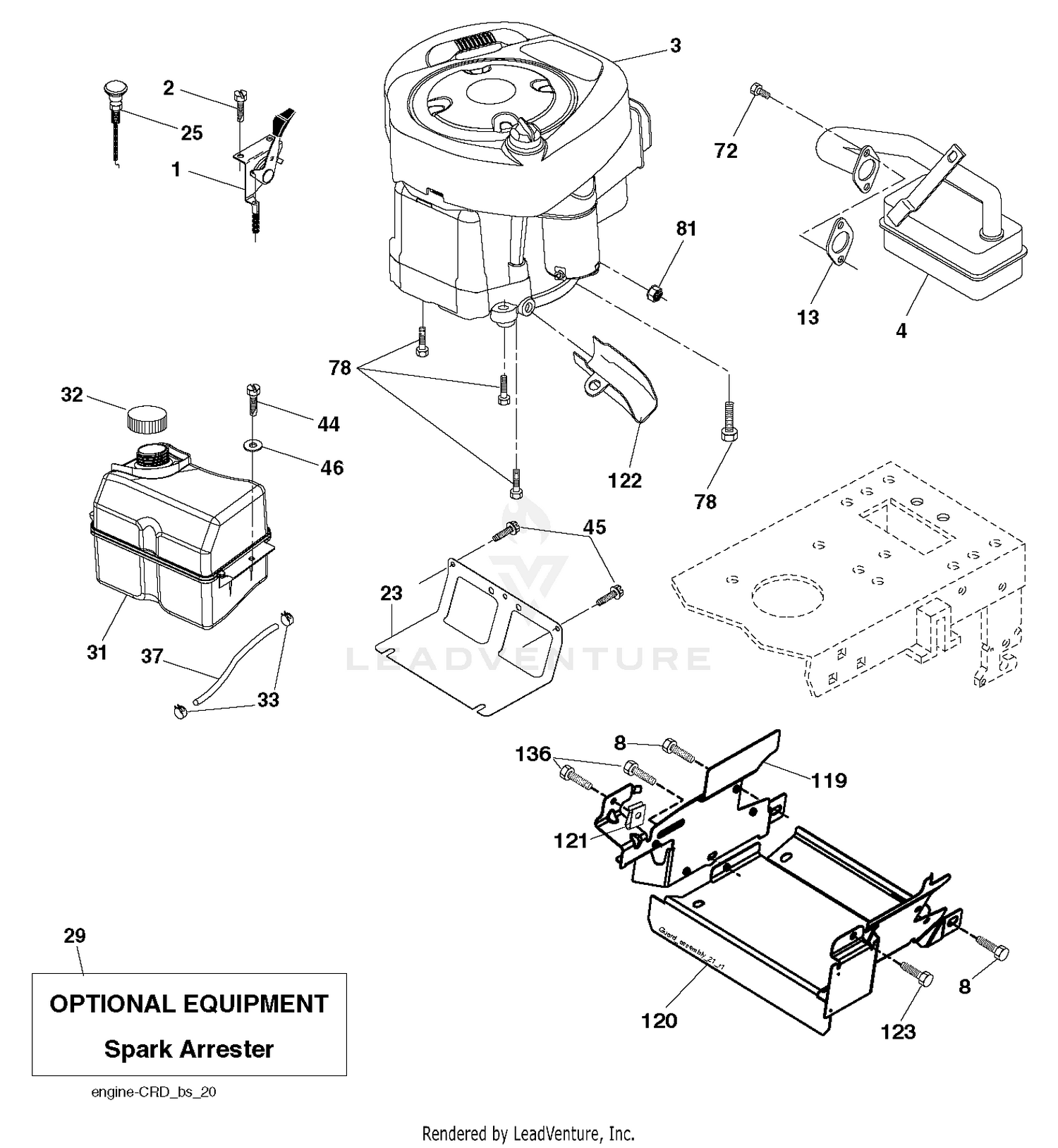

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 1 |
76-0480 |
BRG ROD END LH Price: $37.99 |
| 2 |
3220-20 |
NUT-JAM Price: $0.92 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 4 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 5 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 6 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
76-2170-03 |
DISCONTINUED This part replaces 76-2170. Price: Call Us |
| 9 |
76-0420 |
PUMP CONTROL ROD Price: $70.97 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 11 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 12 |
76-0470 |
BRG ROD END RH Price: $37.99 |
| 13 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
61-2610 |
TRACTION ARM Price: $34.35 |
| 15 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 16 |
3220-2 |
NUT-JAM Price: $0.50 |
| 17 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 18 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
3217-16 |
NUT-HEX Price: $0.25 |
| 22 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 23 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
322-17 |
SCREW-HH Price: $2.62 |
| 25 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 25 |
532190695 |
KNOB.ERGO.EXTENDED.RED (1 2) Price: $2.99 |
| 26 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 27 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 28 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 29 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 31 |
532407551 |
TANK.FUEL.FRT.N/CAP.2.0GAL.DAP Price: $24.99 |
| 31 |
61-2940-03 |
PUMP LEVER ASM This part replaces 61-2940. Price: $60.56 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 119 |
583254301 |
GUARD.ENGINE.CRD.LH This part replaces 532199768. Price: $17.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
| 136 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
