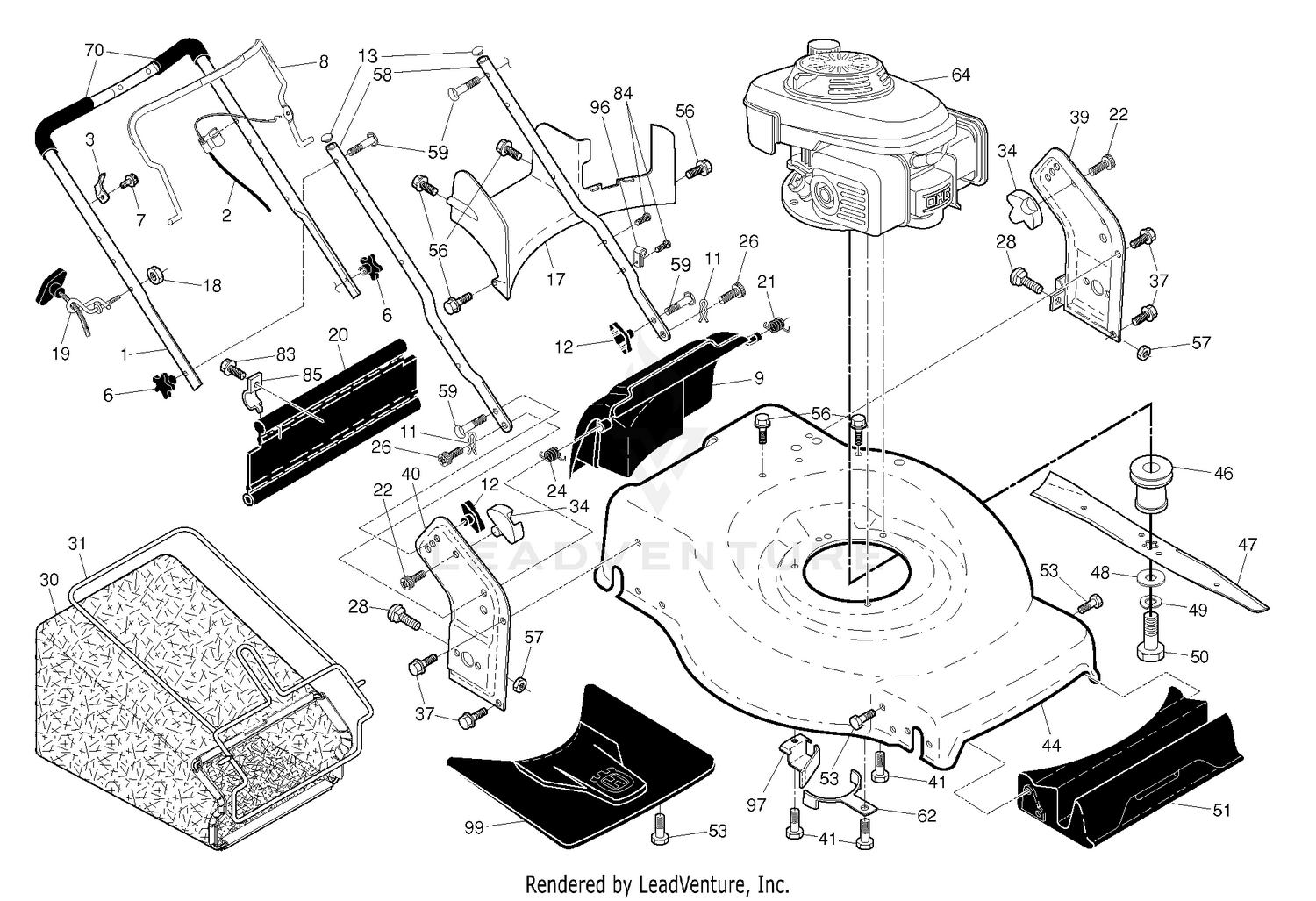

| Ref | Part Number | Description |
|---|
| 1 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 2 |
532440386 |
CABLE.MZR.RGD.22.B&S/HON.ERGO Price: $17.99 |
| 2 |
61-4980 |
SHAFT WITH CLEVIS Price: $325.61 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 3 |
61-4960 |
SEAL KIT Price: $169.43 |
| 4 |
61-4990 |
RING-RETAINING Price: $21.65 |
| 5 |
100-6586 |
CYLINDER-HYD, 2.5 INCH This part replaces 60-9780. Price: $858.08 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 6 |
60-9770 |
DISCONTINUED Price: Call Us |
| 7 |
532750634 |
SCREW Price: $2.99 |
| 8 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC This part replaces 532431238. Price: $32.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532444537 |
SKIRT.REAR.22+RGD.HIGH WHEEL This part replaces 532430349. Price: $11.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
596136401 |
Bolts This part replaces 872250505. Price: $2.99 |
| 30 |
580947302 |
GBAG.A3610010.BLK.GENERIC This part replaces 532438584. Price: $59.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK This part replaces 532419951. Price: $17.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 37 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 39 |
581353702 |
BRACKET.ASM.HNDL.LT.22+.GREY This part replaces 532442531. Price: $19.99 |
| 40 |
581353602 |
BRACKET.ASM.HNDL.RT.22+.GREY This part replaces 532440526. Price: $19.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 44 |
532438484 |
HOUSING.22+.RWD.WO/PORT.ORANGE Price: $159.99 |
| 46 |
581473301 |
ADAPTOR BLADE 25MM STAR This part replaces 532421782. Price: $14.99 |
| 47 |
532437601 |
BLADE.22+FUSION.PREM/PREC Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532437131 |
BAFFLE.FRONT.22PLUS.PLASTIC RP Price: $17.99 |
| 53 |
532437345 |
SCREW.HI-LO.5/16 X.75 Price: $3.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
532441197 |
HANDLE.LOWER.22+BT.2PC.GRY Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 62 |
532425711 |
BRACKET.KEEPER.BELT This part replaces 532435059. Price: $5.99 |
| 70 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
580606902 |
BRACKET.BELT.GUIDE.22+.004 BZP This part replaces 532434893. Price: $3.99 |
| 99 |
532437389 |
COVER.ASM.FRONT.SHROUD.HUSQ. Price: $37.99 |
