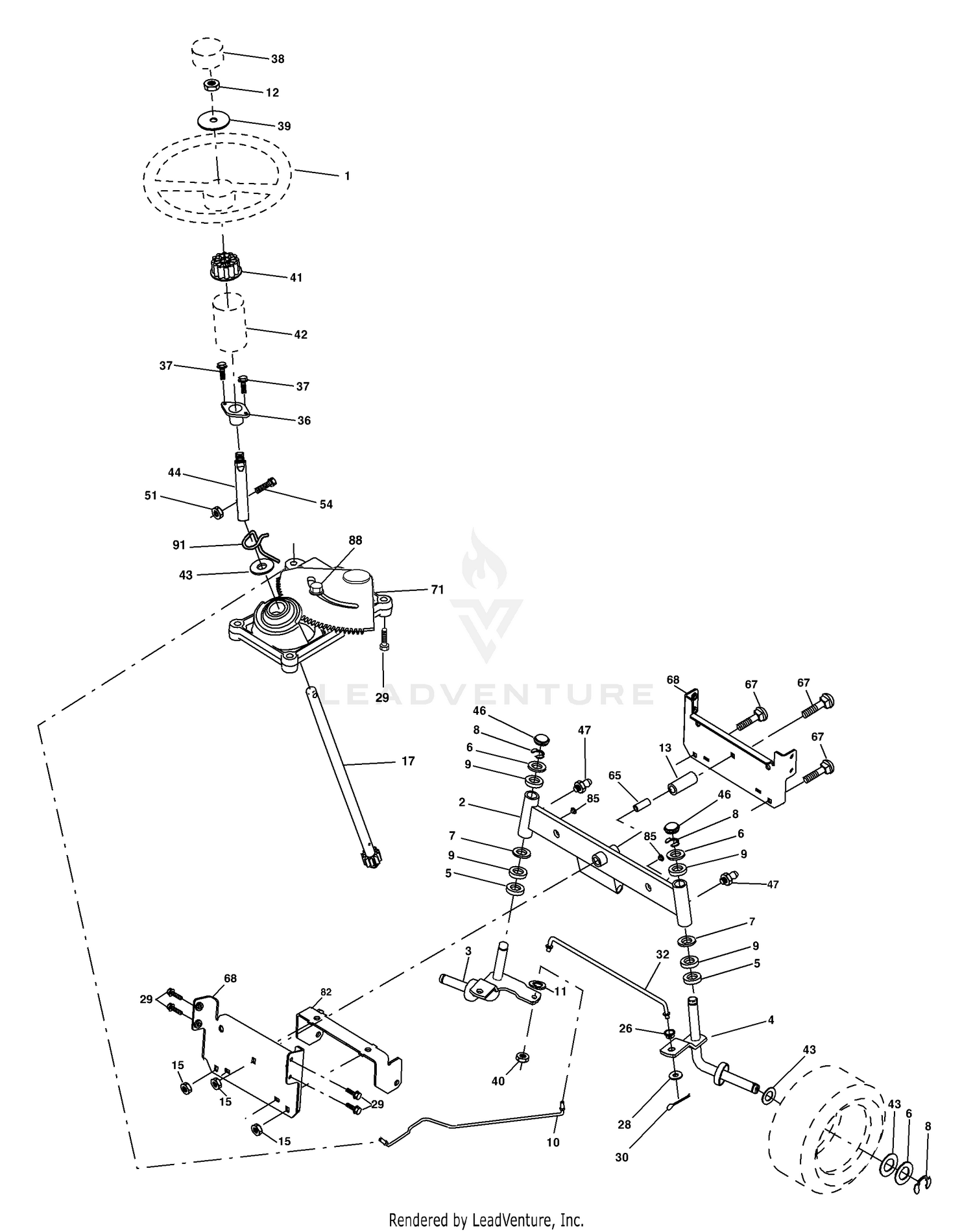

| Ref | Part Number | Description |
|---|
| 1 |
140044X428 |
Wheel Steering Price: Call Us |
| 1 |
93-8923 |
SPRING-WAVE Price: $107.72 |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 2 |
93-8929 |
WASHER-THRUST Price: $3.26 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
93-8919 |
BEARING-NEEDLE, THRUST Price: $44.05 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
93-8925 |
ROLLER Price: $23.82 |
| 5 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
100-2572 |
BEARING Price: $79.71 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 7 |
100-2571 |
SPRING-FORM, WIRE Price: $5.07 |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
132-6130 |
HUB ASSEMBLY This part replaces 100-2570. Price: $480.50 |
| 9 |
100-2569 |
HOUSING ASM Price: $996.50 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Price: Call Us |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 15 |
145212 |
Hex flange Lock Price: Call Us |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
7810H |
Nut Lock Center 3/8-24un Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 x 1-1/4 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
