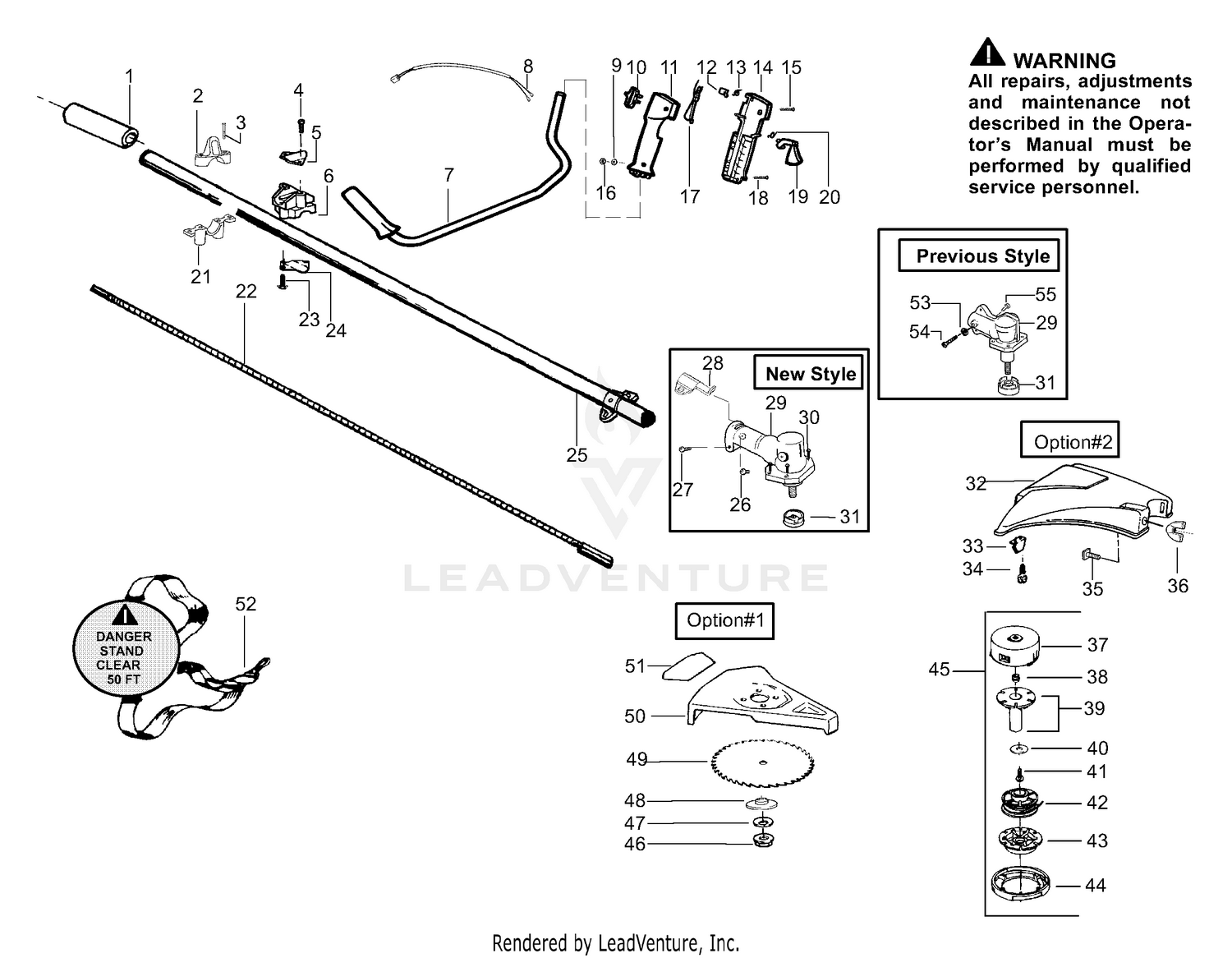

Handle & Shaft Assembly
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530054652 | Pad-Drive Shaft Price: $6.99 |
| 1 | SGH08313-03 | HEAD-TINE, ADAPTER Price: $285.73 |
| 2 | 530071605 | KIT HARNESS CLAMP This part replaces 530055392. Price: $2.99 |
| 2 | SG715706 | SHANK-ADAPTER Price: $16.94 |
| 3 | 530015770 | Screw Price: Call Us |
| 4 | 530015791 | Screw Price: $1.99 |
| 5 | 530094572 | Bracket-Handlebar Price: $1.99 |
| 6 | 530012207 | Clamp-Handlebar Price: $8.99 |
| 7 | 530047139 | Assy-Handlebar Price: $34.99 |
| 8 | 530053255 | Assy-Wire Harness Price: $5.99 |
| 9 | 530016285 | Washer, Split Lock Price: $2.99 |
| 10 | 503718201 | Switch-Rocker Price: $9.99 |
| 11 | 502208607 | Throttle Hsg. Right Price: $3.99 |
| 12 | 502209602 | Throttle Lock Price: $1.99 |
| 13 | 530403152 | Spring-Throttle Lock Price: $1.99 |
| 14 | 502208507 | Throttle Hsg. Left Price: $14.99 |
| 15 | 503210719 | Screw Price: $1.99 |
| 16 | 530016284 | Nut Price: $1.99 |
| 17 | 502199403 | Throttle Lockout Price: $1.99 |
| 18 | 530015933 | Screw Price: $0.99 |
| 19 | 502199203 | Trigger-Throttle Price: $5.99 |
| 20 | 502199301 | Spring-Trigger Price: $0.99 |
| 21 | 530055394 | Clamp-(lower) Price: $1.99 |
| 23 | 530015791 | Screw Price: $1.99 |
| 24 | 530094572 | Bracket-Handlebar Price: $1.99 |
| 28 | 530095812 | Bracket-Shield Price: $1.99 |
| 30 | 530016312 | Screw Price: $1.99 |
| 33 | 530052285 | Line Limiter Price: $1.99 |
| 34 | 530015805 | Screw Price: $1.99 |
| 35 | 530015820 | Bolt Price: $1.99 |
| 36 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 37 | 952711550 | Accy--Cutting Head This part replaces 530094931. Price: $18.95 |
| 38 | 530094956 | Spring Price: $0.99 |
| 39 | 530069312 | Kit-Locking Plate Price: $3.99 |
| 40 | 530015123 | Washer Price: $1.99 |
| 41 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 42 | 952711564 | Spool w/Line Price: $7.56 |
| 43 | 530094522 | Release Button Price: $2.81 |
| 44 | 530094521 | Cover Price: $7.99 |
| 46 | 530015793 | Nut-Flange Price: $1.99 |
| 47 | 530016240 | Washer-Spring Beve Price: $1.99 |
| 49 | 952711585 | Brush Blade Price: Call Us |
| 50 | 530071383 | Kit-Blade Shield Price: $9.99 |
| 52 | 530094417 | Shoulder Strap Price: $20.65 |
| 53 | 530015328 | Washer (Type 1,2,3) Price: $1.99 |
| 54 | 530016140 | Screw (Type 1,2,3) Price: $1.99 |
| 55 | 530015650 | Screw (Type 1,2,3) Price: $1.99 |
