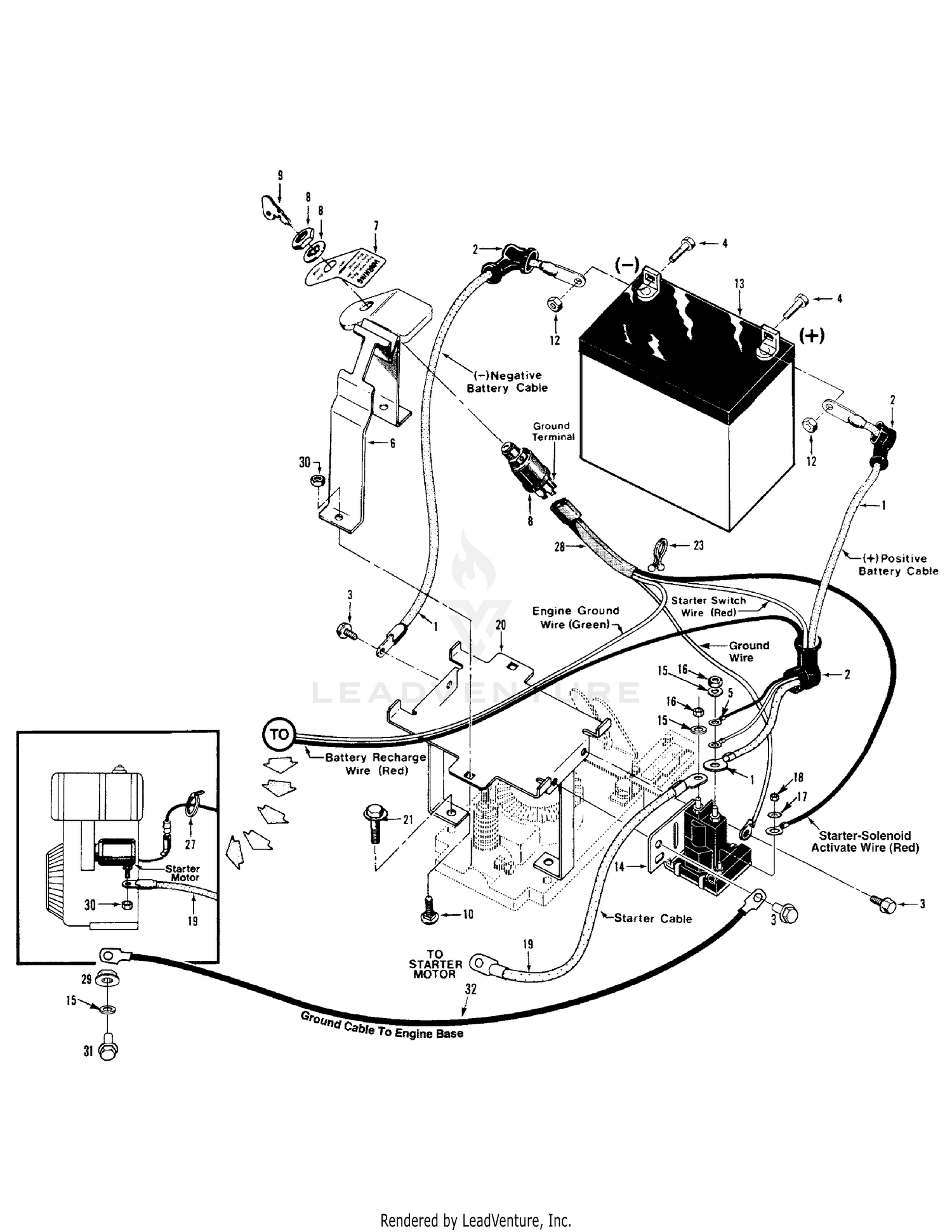

| Ref | Part Number | Description |
|---|
| 1 |
GW-96515 |
Cable-battery, positive and negative terminals Price: $13.84 |
| 2 |
GW-97020 |
BOOT-BATTERY CABLE Not Available Price: |
| 3 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces GW-9552. Price: $3.86 |
| 4 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 5 |
1901894 |
WIRE ASSEMBLY-RECHARGI Not Available Price: |
| 6 |
1900873 |
KEYSWITCH W/DECAL This part replaces GW-2614. Price: $142.31 |
| 7 |
777S30648 |
Decal-ignition switch instructions Price: $4.25 |
| 9 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 10 |
1186073 |
Bolt-carriage, 1/4-20 x 1-1/4" Price: $2.67 |
| 11 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 12 |
712-3006 |
HEX NUT Price: $4.05 |
| 13 |
925-1707D |
BATTERY Not Available This part replaces 725-1706A. Price: |
| 14 |
GW-96514099 |
Solenoid (Incl. Nuts and Washers for Cables and Wires) This part replaces GW-96514. Price: $42.19 |
| 15 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 16 |
912-3057 |
NUT-5/16X 24 This part replaces 1186211. Price: $5.94 |
| 17 |
936-0147 |
EXTERNAL WASHER #10 Not Available This part replaces 736-0147. Price: |
| 18 |
GW-9853 |
Nut-hex, #10-32, Price: $6.01 |
| 19 |
GW-96510 |
Cable-solenoid to starter motor Price: $10.43 |
| 20 |
GW-2571 |
BRKT-BATTERY OPC PNT This part replaces GW-2557. Price: $113.38 |
| 21 |
1186349 |
Bolt-flanged hex hd., 3/8-16 x 1-1/2" Price: $3.11 |
| 23 |
GW-9265 |
TIE-TWIST LOCK Not Available Price: |
| 27 |
725-0157 |
Tie-plastic Price: $3.46 |
| 28 |
725-04346 |
Wire Harness & Connecting Terminal Assembly Not Available Price: |
| 29 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 30 |
1186389 |
Locknut-hex, 1/4"-20 Price: $3.05 |
| 32 |
1901202 |
Cable-ground, solenoid to engine block Price: $30.69 |
