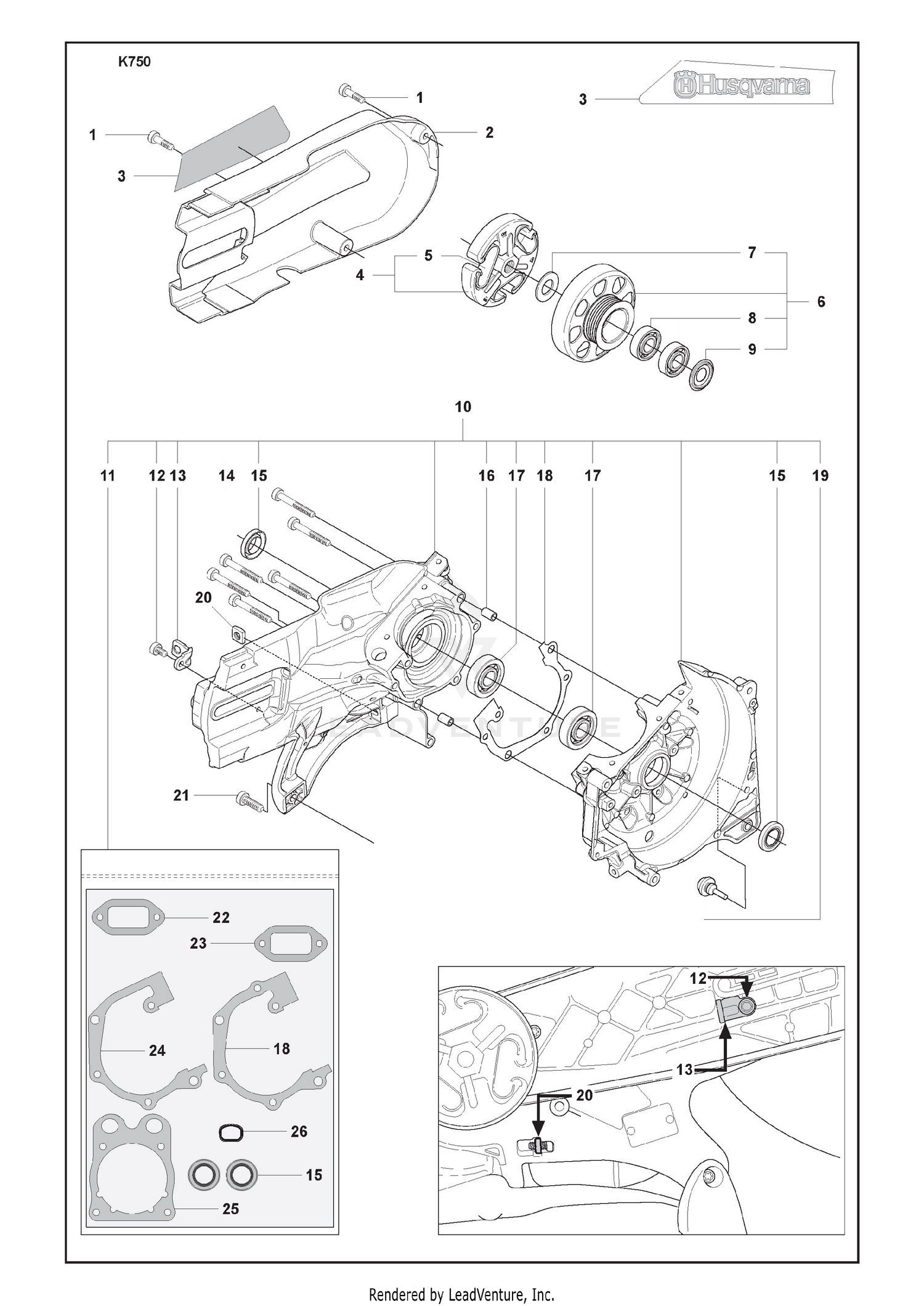

| Ref | Part Number | Description |
|---|
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 1 |
503215321 |
SCREW Price: $3.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
581485901 |
BELT GUARD REAR ASSY WITH LABE This part replaces 506369103. Price: $27.99 |
| 3 |
322-10 |
SCREW-HH Price: $0.70 |
| 3 |
544891101 |
LABEL Price: $5.99 |
| 4 |
32105-21 |
SCREW-HH Price: $1.09 |
| 5 |
503744301 |
CLUTCH SPRING Price: $4.99 |
| 6 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 7 |
503230070 |
WASHER Price: $3.99 |
| 7 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 8 |
738210104 |
BALL BEARING Price: $9.99 |
| 8 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
506316901 |
DUST COVER Price: $3.99 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 11 |
251-259 |
BEARING-BALL Price: $13.67 |
| 11 |
581357402 |
GASKET KIT K760-II This part replaces 506385305. Price: $29.99 |
| 12 |
503200312 |
SCREW Price: $5.99 |
| 12 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 13 |
32144-22 |
SCREW Price: $0.75 |
| 13 |
544007801 |
BRACKET Price: $4.99 |
| 14 |
503215341 |
SCREW Price: $3.99 |
| 15 |
503260204 |
SEALING RING Price: $11.99 |
| 15 |
75-4080-03 |
PLATE-TRACTION ASM This part replaces 75-4080. Price: $56.27 |
| 16 |
593806001 |
GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 16 |
85-9900-03 |
PLATE-ANCHOR, SPRING This part replaces 85-9900. Price: $21.09 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
738220225 |
BALL BEARING-6202-C3 SKF Price: $19.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
506377003 |
GASKET Price: $4.99 |
| 19 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 19 |
503846101 |
BUFFER Price: $4.99 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
503226504 |
NUT Price: $4.99 |
| 21 |
544061201 |
SCREW Price: $3.99 |
| 21 |
92-2581 |
DISCONTINUED Price: Call Us |
| 22 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 22 |
506412301 |
GASKET Price: $4.99 |
| 23 |
588932501 |
GASKET K760 This part replaces 506376902. Price: $5.99 |
| 23 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 24 |
3296-9 |
NUT-HEX Price: $0.25 |
| 24 |
506377002 |
GASKET Price: $4.99 |
| 25 |
506376701 |
GASKET Price: $7.99 |
| 25 |
75-4100-03 |
CONTROL-PUMP This part replaces 75-4100. Price: $198.81 |
| 26 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 27 |
85-9910 |
EYEBOLT Price: $28.77 |
