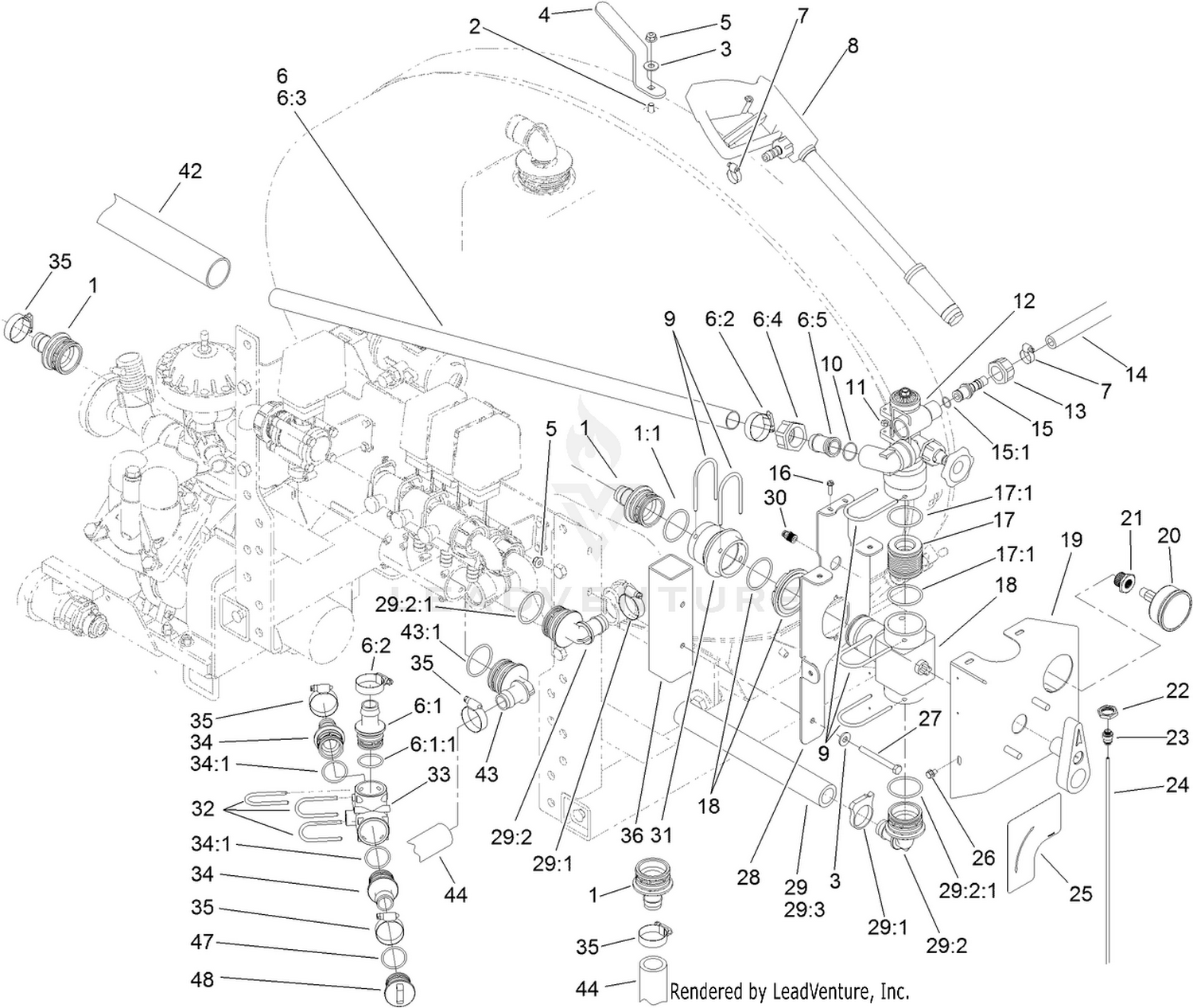

Spray Gun and Manifold Assembly
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-4932 | HOSEBARB-STRAIGHT Price: $42.25 |
| 2 | 3230-1 | BOLT-CARR Price: $1.49 |
| 3 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 4 | 40153-03 | HOOK-HOSE This part replaces 40153. Price: $24.35 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 8 | 100-6733 | SPRAYER-HANDHELD Price: $257.98 |
| 9 | 100-8635 | FORK Price: $4.91 |
| 10 | 100-6655 | GASKET Price: $10.22 |
| 11 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 12 | 106-5096 | MANIFOLD ASM Price: $684.85 |
| 13 | 99-0850 | NUT Price: $10.38 |
| 14 | 107-8751 | HOSE-SPRAY GUN Price: $105.53 |
| 15 | 106-5205 | HOSEBARB ASM Price: $21.49 |
| 16 | 32105-13 | SCREW-HWH Price: $1.59 |
| 17 | 106-4947 | CONNECTOR Price: $18.42 |
| 18 | 106-5095 | BALL VALVE ASM Price: $674.33 |
| 19 | 119-4969-03 | COVER Price: $168.46 |
| 20 | 120-8546 | GAUGE-PRESSURE Price: $172.62 |
| 21 | 100-8665 | REDUCER-GAUGE, PRESSURE Price: $62.08 |
| 22 | 100-8666 | NUT-REDUCER Price: $11.29 |
| 23 | 100-8667 | COUPLER-REDUCER Price: $47.60 |
| 24 | 106-5225 | TUBE-PRESSURE GAUGE Price: $9.13 |
| 25 | 106-5211 | DECAL-SPRAY CONTROL Price: $36.39 |
| 26 | 3234-26 | SCREW-HHF Price: $2.69 |
| 27 | 322-14 | SCREW-HH Price: $1.01 |
| 28 | 106-5201-03 | BRACKET ASM Price: $147.50 |
| 30 | 100-8674 | COUPLER-TUBE Price: $60.10 |
| 31 | 100-7050 | BULKHEAD Price: $126.57 |
| 32 | 100-6708 | FORK Price: $5.54 |
| 33 | 104-9041 | TEE Price: $65.38 |
| 34 | 106-4935 | HOSEBARB ASM Price: $35.72 |
| 35 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 36 | 106-5227-03 | TUBE-VALVE MOUNT Price: $70.57 |
| 42 | 119-0446 | HOSE-AGITATION Price: $93.96 |
| 43 | 106-4933 | HOSEBARB ASM Price: $58.13 |
| 44 | 119-0480 | HOSE-VALVE, AGITATION Price: $36.95 |
| 47 | 100-6712 | O-RING Price: $9.34 |
