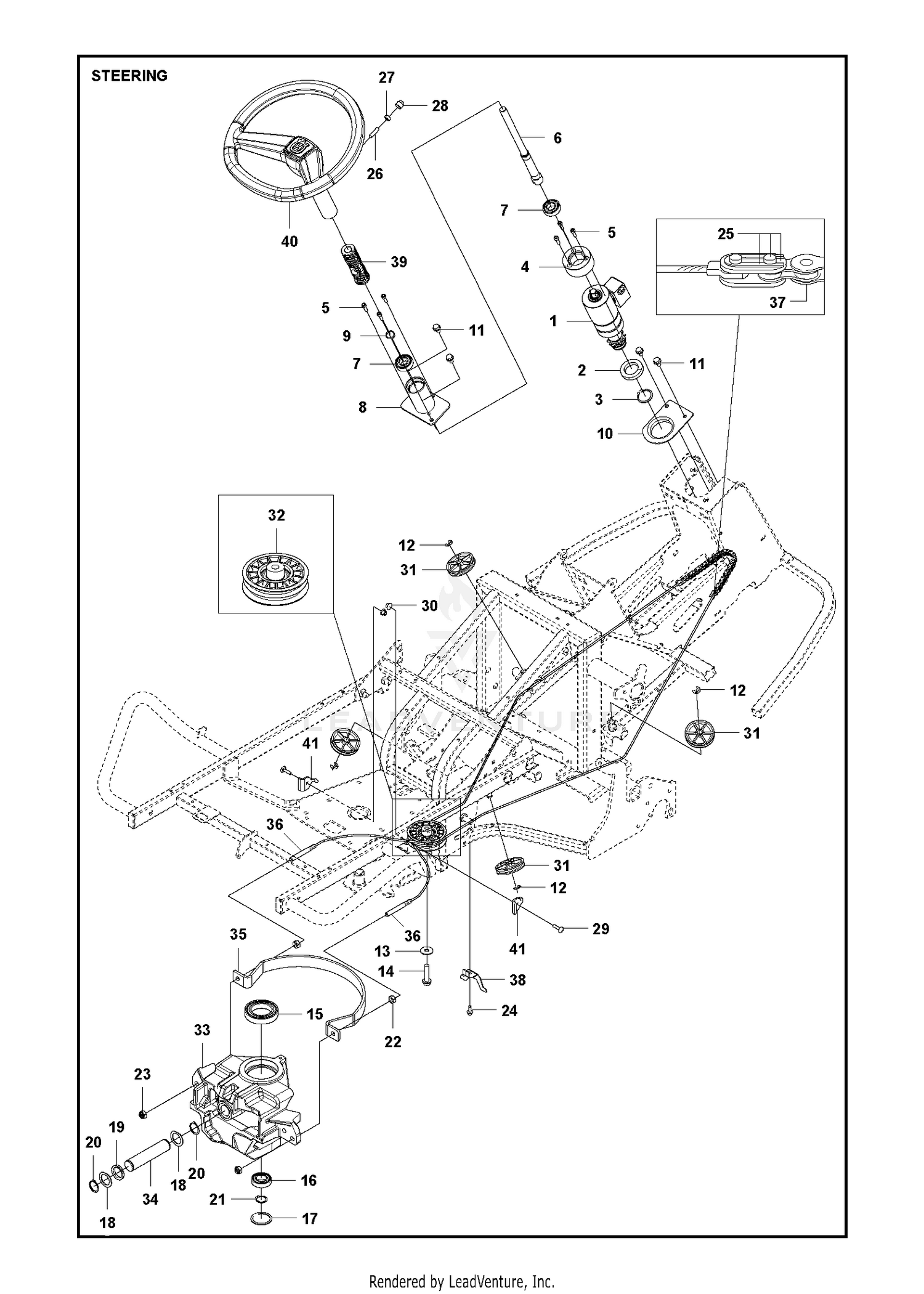

STEERING
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-0381 | BOOM-LH Price: $460.17 |
| 1 | 535457103 | COMFORT STEERING Price: $173.99 |
| 2 | 535427801 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 108-3725 | LH SINGLE BODY TURRET ASM Price: $57.64 |
| 3 | 735313300 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 108-3727 | DOUBLE TURRET BODY ASM Price: $57.64 |
| 4 | 578150501 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 108-3726 | RH SINGLE BODY TURRET ASM Price: $57.64 |
| 5 | 725537055 | SCREW MC6S 6X20 This part replaces 725537001. Price: $4.99 |
| 6 | 578129801 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 8 | 578150901 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 108-3439 | TEE Price: $10.76 |
| 9 | 735312200 | RETAINING RING SGA 20 Price: $2.99 |
| 10 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 10 | 504538201 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 161-4174 | CRADLE ASM This part replaces 130-8238-03. Price: $56.88 |
| 11 | 506570104 | BOLT Price: $4.99 |
| 12 | 110-5050 | SCREW-HHF Price: $2.59 |
| 12 | 735311420 | RETAINING RING Price: $2.99 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 13 | 734117441 | WASHER Price: $3.99 |
| 14 | 108-3476-03 | CRADLE-UPPER Price: $84.74 |
| 14 | 506675403 | COLLAR SCREW Price: $2.29 |
| 15 | 108-3457 | SPACER Price: $21.03 |
| 15 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 16 | 108-3742 | SCREW-HHF Price: $1.90 |
| 16 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 17 | 108-3489 | CAP-TUBE Price: $3.25 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 110-5052 | SCREW-HHF Price: $1.22 |
| 18 | 582104601 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 108-3495 | COVER-SLIDE Price: $98.16 |
| 19 | 740681521 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 108-3743 | WASHER Price: $2.31 |
| 20 | 735312800 | Retaining Ring Price: $3.94 |
| 21 | 108-3744 | SCREW-SHOULDER Price: $9.60 |
| 21 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 22 | 114-9566 | CLAMP-R Price: $2.78 |
| 22 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 23 | 95-9186 | CAP Price: $7.89 |
| 24 | 725236461 | SCREW Price: $2.99 |
| 24 | 95-9187 | CAP-BLANK Price: $10.69 |
| 25 | 108-3735 | HOSE-BOOM, CENTER (LH) Price: $43.48 |
| 25 | 506554701 | LINK Price: $4.99 |
| 26 | 728745505 | SCREW Price: $3.99 |
| 27 | 3256-68 | WASHER-FLAT Price: $2.69 |
| 27 | 731231801 | NUT Price: $3.99 |
| 28 | 110-5070 | BUMPER Price: $10.00 |
| 28 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 29 | 127-8955-03 | MOUNT-BOOM Price: $64.84 |
| 29 | 727637251 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 127-8956-03 | MOUNT-BOOM Price: $69.93 |
| 30 | 576645703 | NUT FLANGE Price: $2.99 |
| 31 | 110-5057 | CAPSCREW-HHF Price: $2.71 |
| 31 | 506522401 | ROLLER Price: $9.99 |
| 32 | 108-3745 | NUT-HHF, WHIZ Price: $1.15 |
| 32 | 576492503 | NEEDS DESCRIPTION Price: Call Us |
| 33 | 137-1673 | BRACKET-PIVOT This part replaces 119-4993-03. Price: $270.35 |
| 33 | 501679401 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 137-1674 | HINGE This part replaces 108-3471-03. Price: $86.08 |
| 34 | 535463002 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 100-8541 | BUSHING-A ARM Price: $3.49 |
| 35 | 582178601 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 108-3436 | PIN-CLEVIS Price: $44.88 |
| 36 | 501604805 | NEEDS DESCRIPTION Price: Call Us |
| 37 | 3290-468 | PIN-COTTER Price: $0.95 |
| 37 | 506554614 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 110-5054 | WASHER-FLAT Price: $1.75 |
| 38 | 588974701 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 108-3738 | SCREW-HH Price: $14.09 |
| 39 | 587080901 | DRIVER STEERING WHEEL Price: $7.99 |
| 40 | 3296-15 | NUT-LOCK, NI Price: $1.75 |
| 40 | 577960401 | STEERING WHEEL Price: $74.99 |
| 41 | 108-3419 | PIVOT PIN ASM Price: $49.14 |
| 41 | 582384501 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 108-3605 | PLATE-BACKING Price: $9.08 |
| 43 | 108-3444 | RETAINER-SPRING Price: $23.03 |
| 44 | 108-3440 | SPRING-BREAKAWAY, BOOM Price: $20.19 |
| 45 | 302-5 | FITTING-GREASE Price: $0.59 |
| 46 | 108-3459 | BOOT-HINGE Price: $16.67 |
| 47 | 120-8541 | DAMPENER-HINGE Price: $15.09 |
| 48 | 108-3748 | SCREW-HHF Price: $1.90 |
| 49 | 3234-42 | SCREW-HHF Price: $1.10 |
| 50 | 133-0412-03 | CENTER-CENTER, BOOM Price: $263.10 |
| 52 | 136-0382 | BOOM-RH Price: $460.17 |
| 53 | 136-0438 | HOSE-FORMED Price: $30.00 |
| 54 | 108-3728 | HOSE-BOOM Price: $17.99 |
