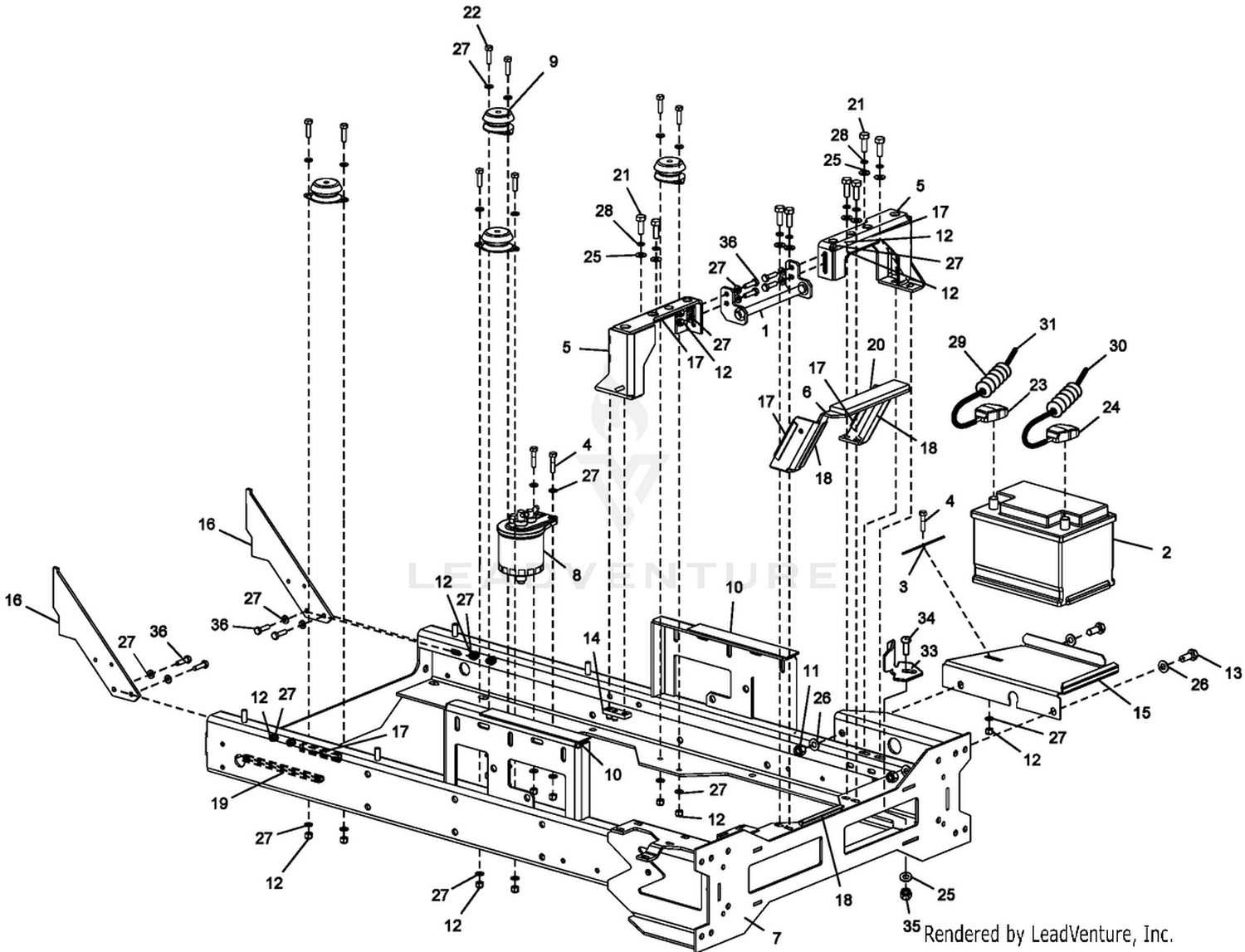

| Ref | Part Number | Description |
|---|
| 1 |
924187W |
BAR LATCHING W/A Price: $77.72 |
| 2 |
70-09-015 |
BATTERY Price: $137.52 |
| 3 |
70-01-340 |
BATTERY RETAINER W/ASSY Price: $50.28 |
| 4 |
09631 |
BOLT M8*35 Price: $1.40 |
| 5 |
924170W |
BRACKET PLATFORM SUPPORT W/A Price: $164.66 |
| 6 |
910493W |
BRACKET SEAT SUPPORT FRONT Price: $97.33 |
| 7 |
953100W |
CHASSIS CENTRE W/A Price: $1,730.91 |
| 8 |
134-2829 |
FILTER-FUEL This part replaces 15221-43080. Price: $11.48 |
| 8 |
15291-43010 |
ENGINE FUEL FILTER This part replaces 74-07-033. Price: $101.95 |
| 9 |
70-07-034 |
FLEXIBLE MTG (70-07-001) Price: $108.55 |
| 10 |
910808_260LG |
NEOPRENE STRIP 40 X 3 Price: Call Us |
| 11 |
ZNN1L000U |
HEX.NUT NYLOC M12 Price: $1.40 |
| 12 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 13 |
09415 |
BOLT M12 X 30 GD. 8.8 PLATED Price: $1.40 |
| 14 |
924141 |
Plate - Securing Price: $25.85 |
| 15 |
910447W |
PLATE BATTERY TRAY Price: $69.70 |
| 16 |
953114W |
PLATE BULKHEAD STAY Price: $46.10 |
| 17 |
50-08-001 |
MOULDING Price: $9.43 |
| 18 |
50-08-001 |
MOULDING Price: $9.43 |
| 19 |
50-08-001 |
MOULDING Price: $9.43 |
| 20 |
910944 |
RUBBER SEAT SUPPORT FRONT Price: $15.20 |
| 21 |
09395 |
SETSCREW M10 X 25 ZN & PASS Price: $1.40 |
| 22 |
03162 |
STEEL BOLT Price: $1.39 |
| 23 |
122-1276 |
NEGATIVE BATTERY CABLE ASM This part replaces 70-09-172. Price: $75.81 |
| 24 |
70-09-171 |
TERMINAL Q R & VE Price: $13.80 |
| 25 |
ZWQ1J000U |
PLAIN HEAVY WASHER M10 Price: $1.38 |
| 26 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 27 |
ZWP1H000U |
WASHER (M8) Price: $1.40 |
| 28 |
09480 |
WASHER M10 SC SPRING Price: $1.36 |
| 29 |
70-09-081 |
CONVOLUTED TUBE(SMALL) Price: $1.64 |
| 30 |
70-09-173 |
CABLE BATTERY& VE (KUBOTA) Price: $75.96 |
| 31 |
70-09-170 |
CABLE BATTERY - VE Price: $48.58 |
| 33 |
953116W |
BRACKET HOSE GUIDE Price: $54.52 |
| 34 |
15-11-003 |
CARR.BOLT(8.8)M10*25 HT Price: $1.42 |
| 35 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
