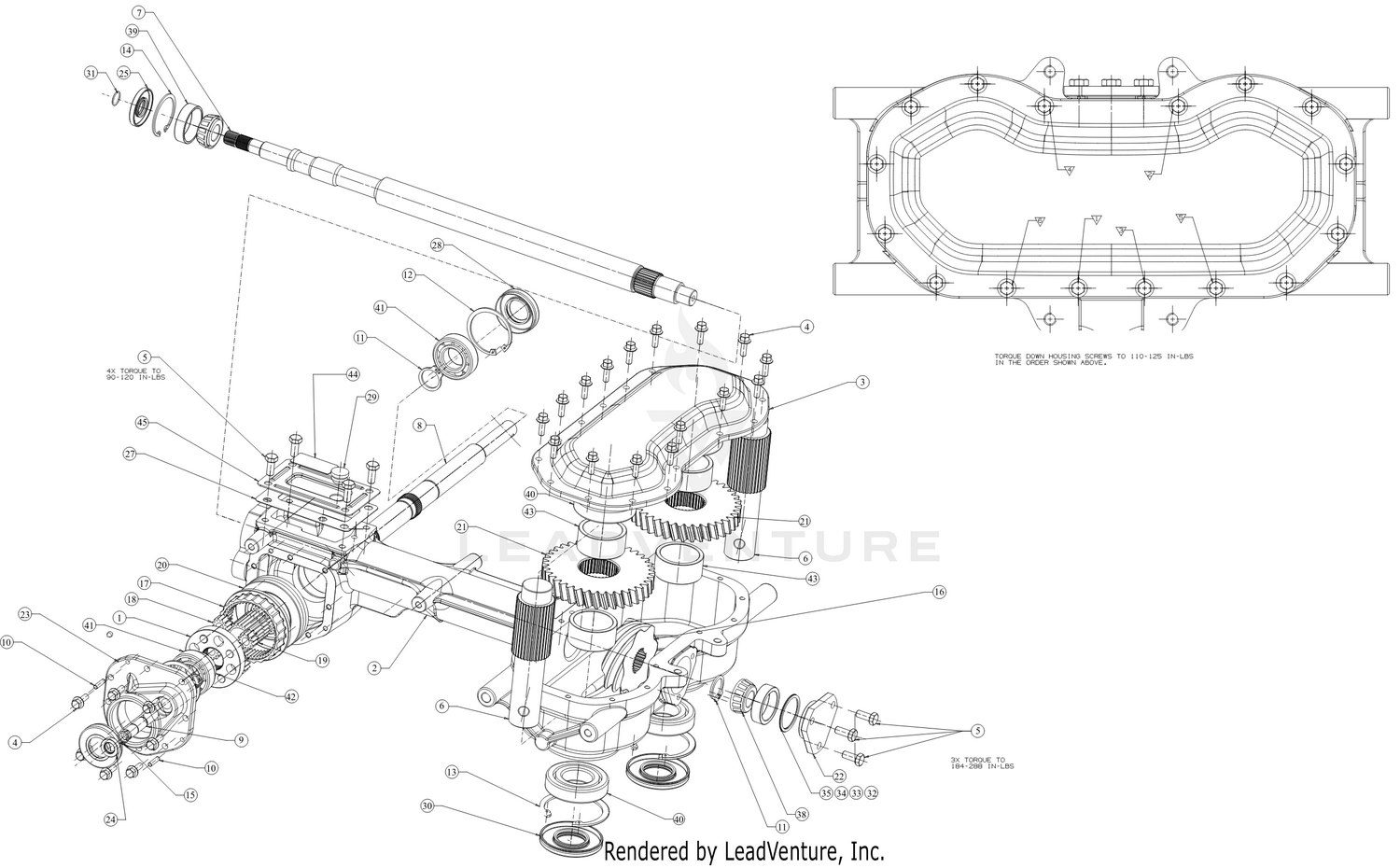

| Ref | Part Number | Description |
|---|
| 1 |
918-07045 |
PLANETARY CARRIER ASSEMBLY Not Available Price: |
| 2 |
919-05078 |
TRANSMISSION HOUSING Not Available Price: |
| 3 |
919-05080 |
TRANSMISSION COVER Not Available Price: |
| 4 |
710-04666 |
SCREW 1/4-20 x .75 GR5 Price: $6.04 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
911-06217 |
TINE SHAFT Not Available Price: |
| 7 |
911-06224 |
WORM DRIVE SHAFT Not Available Price: |
| 8 |
911-06233 |
WHEEL SHAFT Not Available Price: |
| 9 |
711-06255 |
NEUTRAL DRIVE SHAFT Not Available Price: |
| 10 |
915-0221 |
DOWEL PIN Price: $3.93 |
| 11 |
716-0127 |
RETAINING RING Price: $10.97 |
| 12 |
716-0204 |
RETAINING RING Price: $5.94 |
| 13 |
716-0394 |
RETAINING RING Not Available Price: |
| 14 |
716-04102 |
RETAINING RING Price: $3.85 |
| 15 |
716-0865 |
SNAP RING FOR .500 Price: $3.86 |
| 16 |
917-05197 |
WORM GEAR 7T Not Available Price: |
| 17 |
917-05204 |
RING GEAR 48T Not Available Price: |
| 18 |
917-05213 |
PLANETARY GEAR 12T Not Available Price: |
| 19 |
917-05217 |
SUN GEAR 24T Not Available Price: |
| 20 |
917-05218 |
WORM GEAR 61T Price: $139.00 |
| 21 |
917-05232 |
TINE SHAFT GEAR 38T Not Available Price: |
| 22 |
918-04435 |
BEARING COVER Price: $20.18 |
| 23 |
919-04493A |
TILLER HOUSING COVER Price: $45.22 |
| 24 |
721-0393 |
OIL SEAL .5000 x .8750 x .2500 Price: $10.82 |
| 25 |
921-04030 |
OIL SEAL .750 SHF x 1.783 Price: $11.33 |
| 27 |
921-04229 |
GEAR HOUSING GASKET Price: $6.04 |
| 28 |
721-04232 |
OIL SEAL 1.00 SHF x 2.00 BORE Price: $14.26 |
| 29 |
721-04271 |
RUBBER OIL PLUG Price: $4.73 |
| 30 |
921-04756 |
SEAL, OIL Price: $43.96 |
| 31 |
732-0614 |
WIRE RING Price: $5.37 |
| 32 |
736-04305 |
FLAT WASHER 1.500X1.750X.062 Price: $3.52 |
| 33 |
736-04306 |
FLAT WASHER 1.500X1.750X.005 Price: $3.85 |
| 34 |
736-04307 |
FLAT WASHER 1.500X1.750X.030 Price: $3.85 |
| 35 |
736-04308 |
FLAT WASHER 1.500X1.750X0.010 Price: $3.85 |
| 38 |
941-04298 |
BEARING CONE Price: $14.84 |
| 39 |
941-04299 |
BEARING CUP Price: $6.01 |
| 40 |
741-1100 |
BALL BEARING Price: $33.54 |
| 41 |
741-3114 |
BALL BEARING Price: $24.22 |
| 42 |
750-06181 |
SPACER 1.010 x 1.500 x 0.175 Not Available Price: |
| 43 |
750-06183 |
SPACER 1.780 x 2.180 x 1.010 Not Available Price: |
