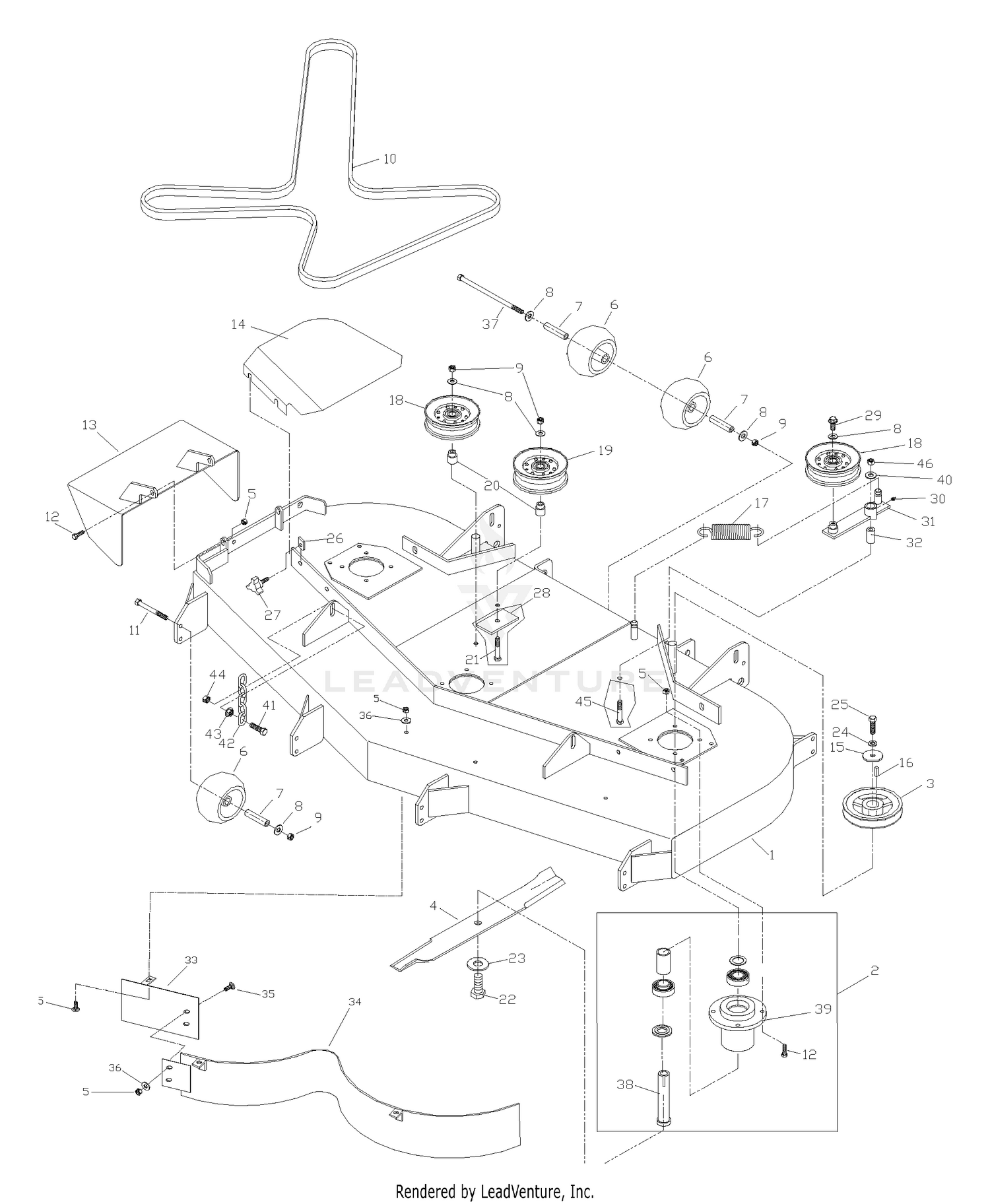

| Ref | Part Number | Description |
|---|
| 1 |
539105488 |
DECK W/DECALS 72" HUS WSL Price: $3,496.99 |
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
539107406 |
BEARING KIT Price: $127.99 |
| 2 |
539107412 |
HOUSING KIT FOR 105632 Price: $299.99 |
| 2 |
74-8080 |
WASHER This part replaces 94-3146. Price: $4.77 |
| 3 |
539105485 |
PULLEY Price: $44.99 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
539105476 |
BLADE OEM - 25" Price: $34.99 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
539102643 |
ANTI-SCALP ROLLER Price: $8.99 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
539102698 |
BUSHING Price: $29.99 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
539105477 |
BELT, DECK 72" Price: $119.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
539102754 |
HCS 3/8C X 3 1/2 Price: $3.99 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
539108270 |
DISCHARGE CHUTE Price: $93.99 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
539108920 |
SHIELD BELT RIGHT ORANGE This part replaces 539105564. Price: $37.99 |
| 14 |
539108922 |
SHIELD BELT LEFT ORANGE This part replaces 539105566. Price: $49.99 |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 15 |
94-3147 |
DISCONTINUED Price: Call Us |
| 16 |
539101995 |
KEY 1/4 SQ X 1 1/8 Price: $2.99 |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
539105192 |
DECK SPRING Price: $13.99 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
539105633 |
HEX SCREW-5/8F X 2 GR8 Price: $2.99 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
539105634 |
BELLEVILLE SPRING WASHER Price: $3.99 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 26 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 27 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
596770301 |
Washers This part replaces 539103303. Price: $4.99 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING This part replaces 94-3156. Price: $23.09 |
| 29 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 30 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 31 |
539103230 |
IDLER ARM Price: $159.99 |
| 32 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 33 |
539105615 |
BAFFLE/CENTER-FLAT BLK Price: $44.99 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
| 34 |
539105614 |
BAFFLE/CENTER-CURVED Price: $129.99 |
| 35 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 36 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 37 |
539105422 |
BOLT 3/8 X 6" GRD 8 Price: $3.99 |
| 38 |
539105501 |
SPINDLE SHAFT Price: $49.99 |
| 39 |
539104852 |
HOUSING, DIE CAST Price: $64.99 |
| 40 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 41 |
594944601 |
Bolts This part replaces 539101175. Price: $2.99 |
| 42 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 43 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 44 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 45 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
