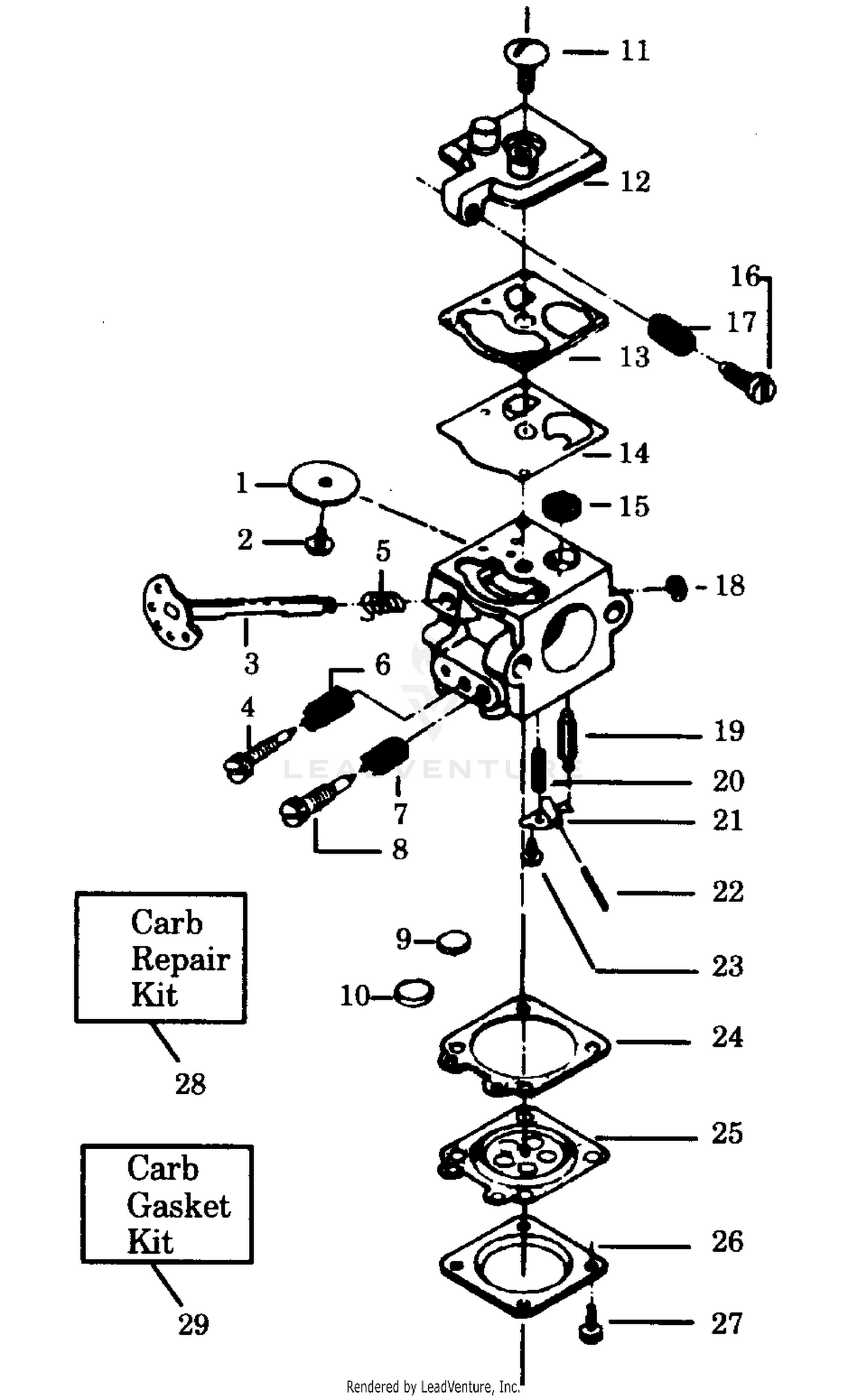

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
530035006 |
Throttle Valve Price: Call Us |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
530035015 |
Throttle Valve Screw Price: $1.99 |
| 3 |
107-2996 |
FRONT GRASS SHIELD ASM Price: $69.51 |
| 3 |
530035034 |
Throttle Shaft Ass'y. Price: $3.68 |
| 4 |
125-1978 |
SHIELD-GRASS, REAR This part replaces 107-7779-01. Price: $66.83 |
| 4 |
530035171 |
Low Speed Mixture Needle Price: $2.99 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
530035024 |
Throttle Return Spring Price: Call Us |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
530035023 |
Low Speed Mixture Needle Spring Price: $0.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
530035167 |
High Speed Mixture Needle Spring Price: $0.64 |
| 8 |
530035169 |
High Speed mixture Needle Price: Call Us |
| 11 |
530035017 |
Pump Cover Screw Price: $0.99 |
| 12 |
530035159 |
Fuel Pump Cover Price: $5.99 |
| 13 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 14 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 16 |
530035035 |
Idle Speed Adjusting Screw Price: $1.99 |
| 17 |
530035168 |
Idle Speed Adjusting Screw Spring Price: $0.99 |
| 18 |
530035007 |
Throttle Retainer Ring Price: Call Us |
| 24 |
530035165 |
Metering Diaphragm Gasket Price: $7.99 |
| 25 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 26 |
530035003 |
Metering Diaphragm Cover Price: $3.99 |
| 27 |
530035021 |
Metering Cover Screw Ass'y. Price: $1.99 |
| 28 |
530035161 |
Carb. Repair Kit Price: $22.99 |
