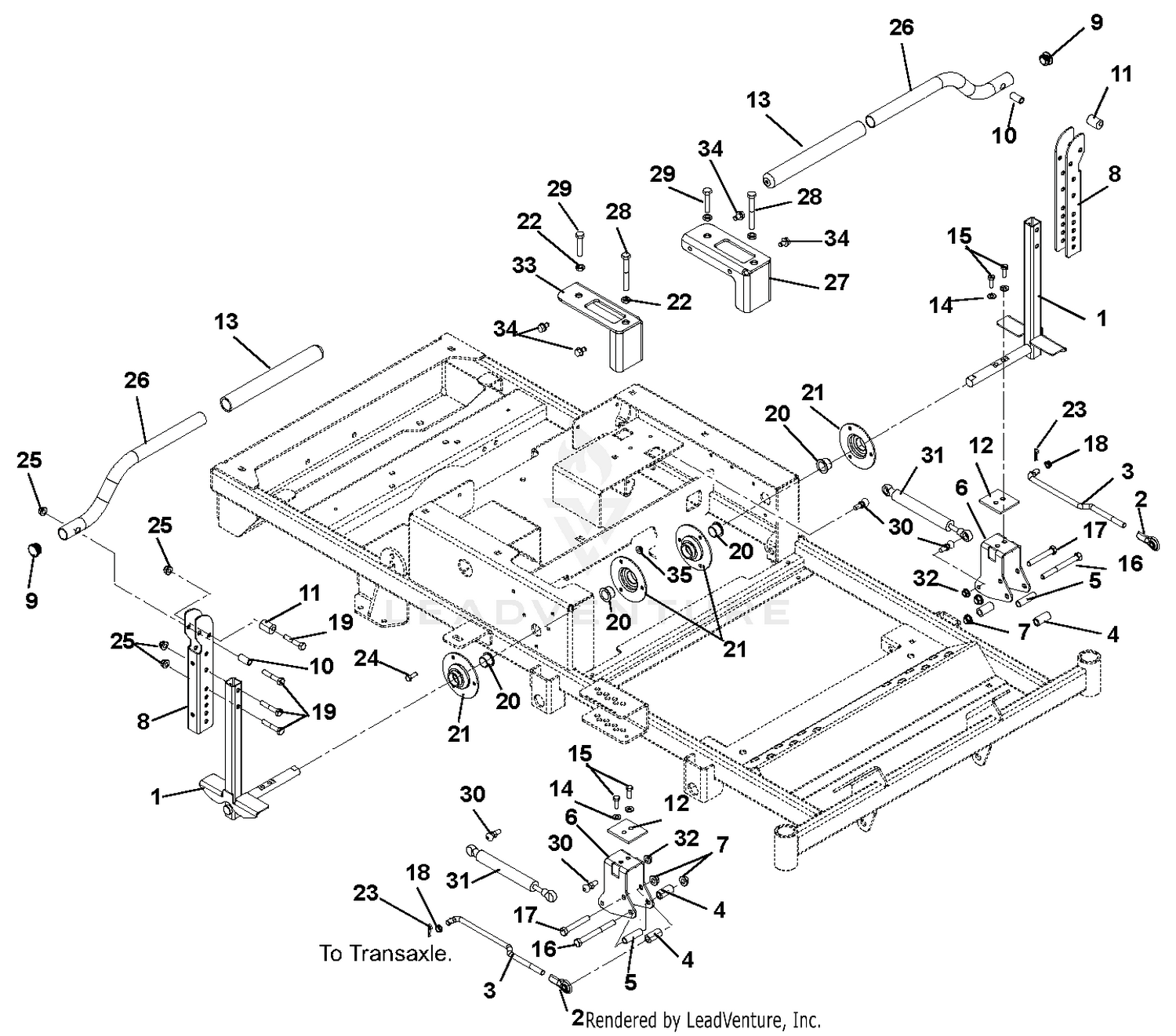

| Ref | Part Number | Description |
|---|
| 1 |
00826300 |
WMT, CONTROL ARM Price: $114.45 |
| 2 |
03563100 |
ROD END, .38 RH Price: $15.45 |
| 3 |
02956000 |
LINK, TRANSMISSION Price: $117.45 |
| 4 |
00363800 |
BSHG, SPCR .390X.625X1.25 PM Price: $14.45 |
| 5 |
03266400 |
SPACER, STEERING Price: $19.45 |
| 6 |
00952300 |
BRKT, STEERING Price: $40.95 |
| 7 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 8 |
00481751 |
CHANNEL, UPPER HANDLEBAR Price: $34.95 |
| 9 |
07533300 |
CAPLUG, HANDLEBAR Price: $2.45 |
| 10 |
00364900 |
BSHG, SPCR .330X.500X1.01 PM Price: $5.45 |
| 11 |
00372300 |
BSHG,ECCEN .328X.750X1.01 PM Price: $10.45 |
| 12 |
03262051 |
PLATE, STEERING REINFORCING Price: $7.45 |
| 13 |
07500239 |
HANDLE GRIP This part replaces 07518700. Price: $3.45 |
| 14 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 15 |
05901802 |
BLT, HEX .31-18X1.00 G8 ZCC This part replaces 05901311. Price: $1.45 |
| 17 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 18 |
05500020 |
BUSHING, POLYLINER-.38 SNAPIN Price: $2.45 |
| 19 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 20 |
05503900 |
BSHG-FLG .750X1.000X.625X1.250 Price: $11.45 |
| 21 |
03207600 |
BEARING FLANGE Price: Call Us |
| 22 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 23 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC This part replaces 06713500. Price: $0.45 |
| 24 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 25 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 26 |
02987851 |
HANDLEBAR, ZTXL Price: $66.45 |
| 27 |
02981451 |
BRACKET, LH SPEED CONTROL Price: $71.45 |
| 28 |
05901815 |
BLT, HEX .38-16X3.00F G5 ZCC This part replaces 05958300. Price: $2.95 |
| 29 |
05901612 |
BLT, HEX .38-16X1.75F G5 ZCC This part replaces 05974000. Price: $2.95 |
| 30 |
03652200 |
STUD- BALL Price: $3.45 |
| 31 |
02975500 |
DAMPER, ZT XL Price: $66.45 |
| 32 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 33 |
02981351 |
BRACKET, RH SPEED CONTROL Price: $61.45 |
| 34 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
