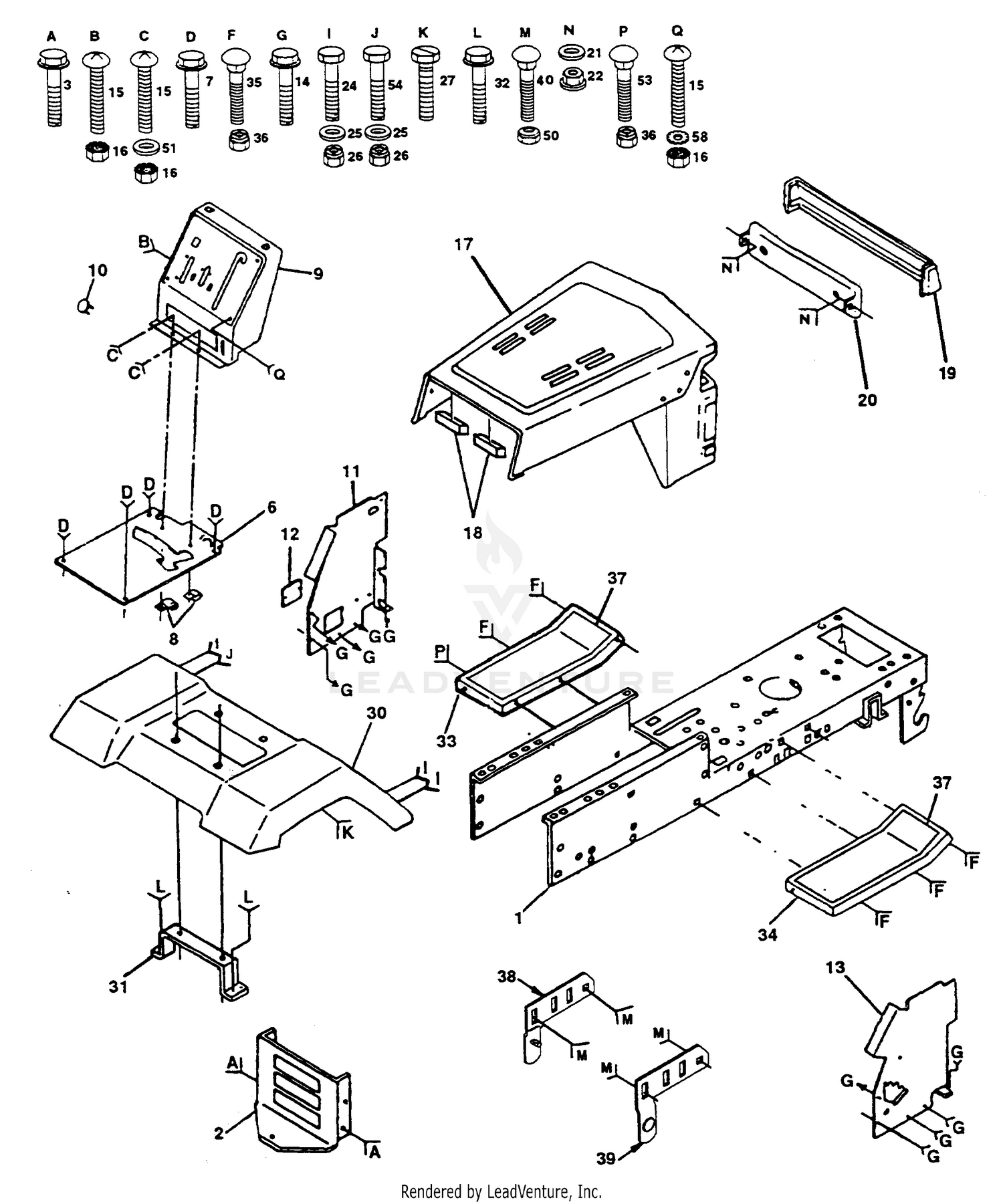

| Ref | Part Number | Description |
|---|
| 1 |
532135034 |
Chassis Wldmt 12 Ga 38/42 W/pvt (AYP part number) Price: $134.44 |
| 2 |
112-1711 |
SHAFT-REAR ROLLER, SHORT Price: $88.40 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532137275. Price: $37.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
532139806 |
Saddle Slk 6sp LT Flat (AYP part number) Price: $36.57 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
817490608 |
Screw Thdrol 3/8-16x1/2 Ty-tt (AYP part number) Price: $3.99 |
| 8 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 9 |
532125447 |
Dash Slkscr 1-pc M W/i N/c Sym (AYP part number) Price: $3.33 |
| 10 |
532005479 |
Plug Button Blk 359 Dia Choke (AYP part number) Price: $2.99 |
| 11 |
532122795 |
Panel Dash LH (AYP part number) Price: $3.33 |
| 12 |
532121794 |
Cover Access Black Square (AYP part number) Price: $3.99 |
| 13 |
532124829 |
Panel Slkscr Dash RH Wld Notch (AYP part number) Price: Call Us |
| 14 |
817490608 |
Screw Thdrol 3/8-16x1/2 Ty-tt (AYP part number) Price: $3.99 |
| 15 |
874180512 |
Screw Mach TRHD 5/16-18uncx3/4 (AYP part number) Price: $3.99 |
| 16 |
873510500 |
Nut Keps 5/16-18 Unc (AYP part number) Price: $5.99 |
| 17 |
532139809 |
Hood Asm Pnt Weld Price: Call Us |
| 18 |
532126938 |
Bumper Hood Price: $3.99 |
| 19 |
532133954 |
Lens Headlight Bar Clear Price: Call Us |
| 20 |
532132257 |
Bezel Light (AYP part number) Price: Call Us |
| 21 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 22 |
532108067 |
Nut Pal (AYP part number) Price: $3.10 |
| 24 |
874760612 |
Bolt Fin Hex 3/8-16unc X 3/4 (AYP part number) Price: $1.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 27 |
817490608 |
Screw Thdrol 3/8-16x1/2 Ty-tt (AYP part number) Price: $3.99 |
| 30 |
532139810 |
Fender Pnt Price: Call Us |
| 31 |
532136619 |
Bracket Fender Repl 109873x (AYP part number) Price: $3.99 |
| 32 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 33 |
532124899 |
Footrest Pnt LH (Husq Gray) (AYP part number) Price: $32.06 |
| 34 |
532105464 |
Footrest, R.H. (AYP part number) This part replaces 532124914. Price: $6.99 |
| 35 |
872110606 |
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 (AYP part number) Price: $2.99 |
| 36 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 37 |
532133671 |
Pad Footrest Ribbed (AYP part number) Price: $7.99 |
| 38 |
532134774 |
Bracket Asm Pvt42 LH MWR Rear (AYP part number) Price: $4.50 |
| 39 |
532134775 |
Bracket Asm Pvt42 RH MWR Rear (AYP part number) Price: $4.57 |
| 40 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 50 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 51 |
819131216 |
Washer 13/32 X 3/4 X 16 Ga (AYP part number) Price: $2.99 |
| 53 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 54 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
