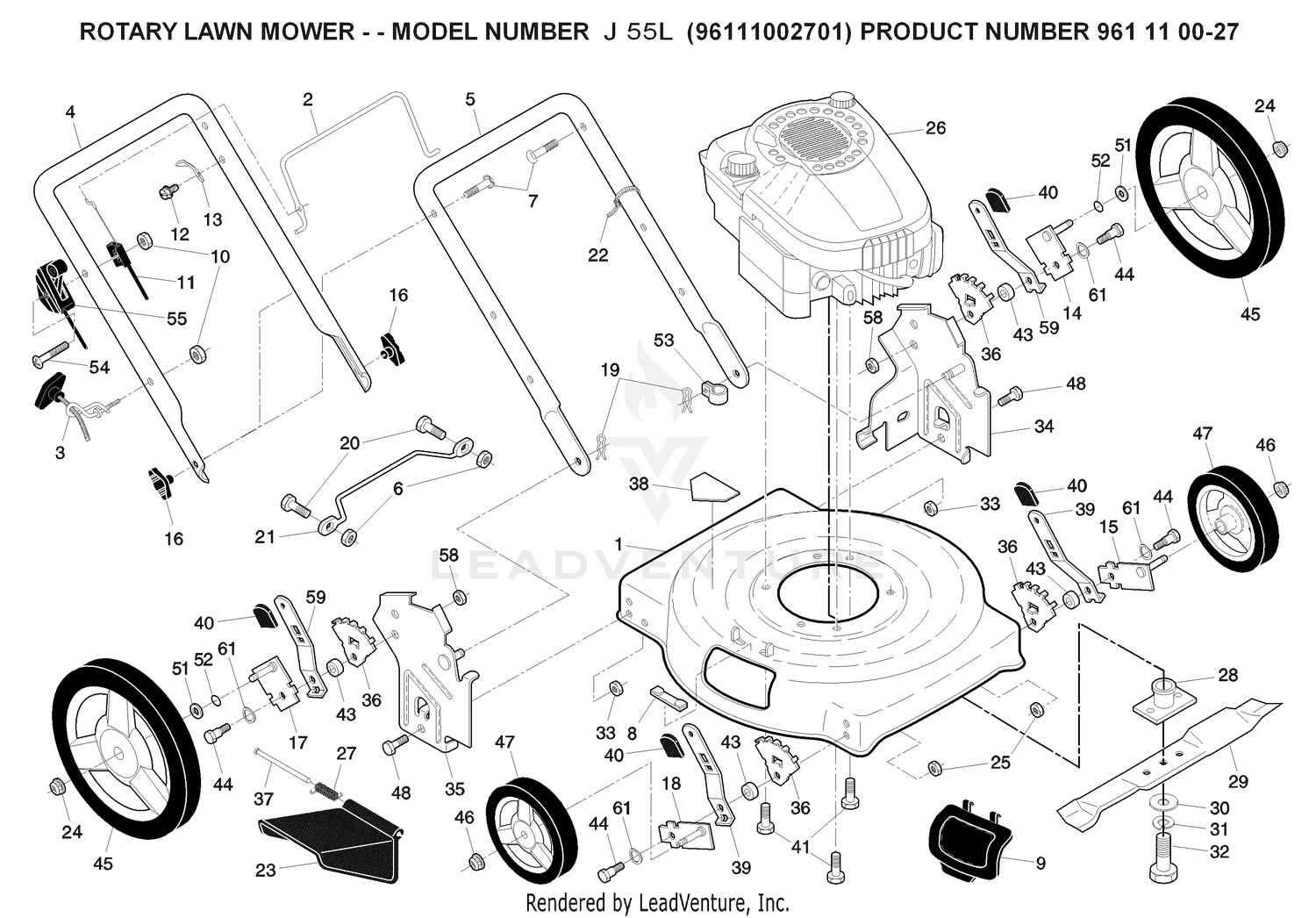

| Ref | Part Number | Description |
|---|
| 1 |
532419069 |
Lawn Mower Housing Price: Call Us |
| 2 |
532194177 |
BAIL.MZR.STD.BLACK This part replaces 532195574. Price: $9.99 |
| 3 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 4 |
532403129 |
Upper Handle Price: Call Us |
| 5 |
532174291 |
HANDLE.LOWER.BLACK This part replaces 532174110. Price: $32.99 |
| 6 |
532069180 |
LOCKNUT Price: $2.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 9 |
532160830 |
PLATE.MULCHER.22.ECON.BLACK Price: $6.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 11 |
532182837 |
Engine Zone Control Cable Price: Call Us |
| 12 |
532750634 |
SCREW Price: $2.99 |
| 13 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
532401176 |
ARM.ASM.AXLE..LR.5/9.POS.BZP This part replaces 532410600. Price: $5.99 |
| 15 |
532401174 |
ARM.ASM.AXLE.5/9.POS. This part replaces 532406689. Price: $5.99 |
| 16 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 17 |
532401177 |
ARM.ASM.AXLE..RR.5/9.POS.BZP This part replaces 532410601. Price: $5.99 |
| 18 |
532401175 |
ARM.ASM.AXLE.5/9.POS.BZP This part replaces 532406690. Price: $5.99 |
| 19 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 20 |
817021008 |
SCREW This part replaces 532085825. Price: $3.99 |
| 21 |
532154147 |
PROTECTOR Price: $22.99 |
| 22 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 23 |
532160831 |
GUARD.DISCHARGE.22". Price: $8.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 25 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 27 |
532408585 |
SPRING.HINGE Price: $11.99 |
| 28 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE This part replaces 532420097. Price: $9.99 |
| 29 |
532199379 |
Blade, 22" Price: Call Us |
| 30 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 31 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 32 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 33 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 34 |
532419160 |
BRACKET.ASM.HANDLE.HW. Price: $8.99 |
| 35 |
532419159 |
BRACKET.ASM.HANDLE.HW.RT.ORANG Price: $8.99 |
| 36 |
532407494 |
BRACKET.ADJ.5POS.ADS This part replaces 532410594. Price: $3.99 |
| 37 |
532160833 |
HINGE ROD Price: $3.99 |
| 38 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 39 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 40 |
532087877 |
KNOB Price: $3.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 43 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 44 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 45 |
585911002 |
WHEEL.12X1.75.CF H3SPK.RAD3.TB This part replaces 532413401. Price: $19.99 |
| 46 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 47 |
532401272 |
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 This part replaces 532413183. Price: $19.99 |
| 48 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 51 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 52 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 53 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 54 |
532183365 |
SCREW Price: $4.99 |
| 55 |
532420611 |
Control Throttle Price: Call Us |
| 58 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 59 |
532401624 |
SPRING.SEL.EXT.21.DOMED.12/14 This part replaces 532410595. Price: $3.99 |
| 61 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
