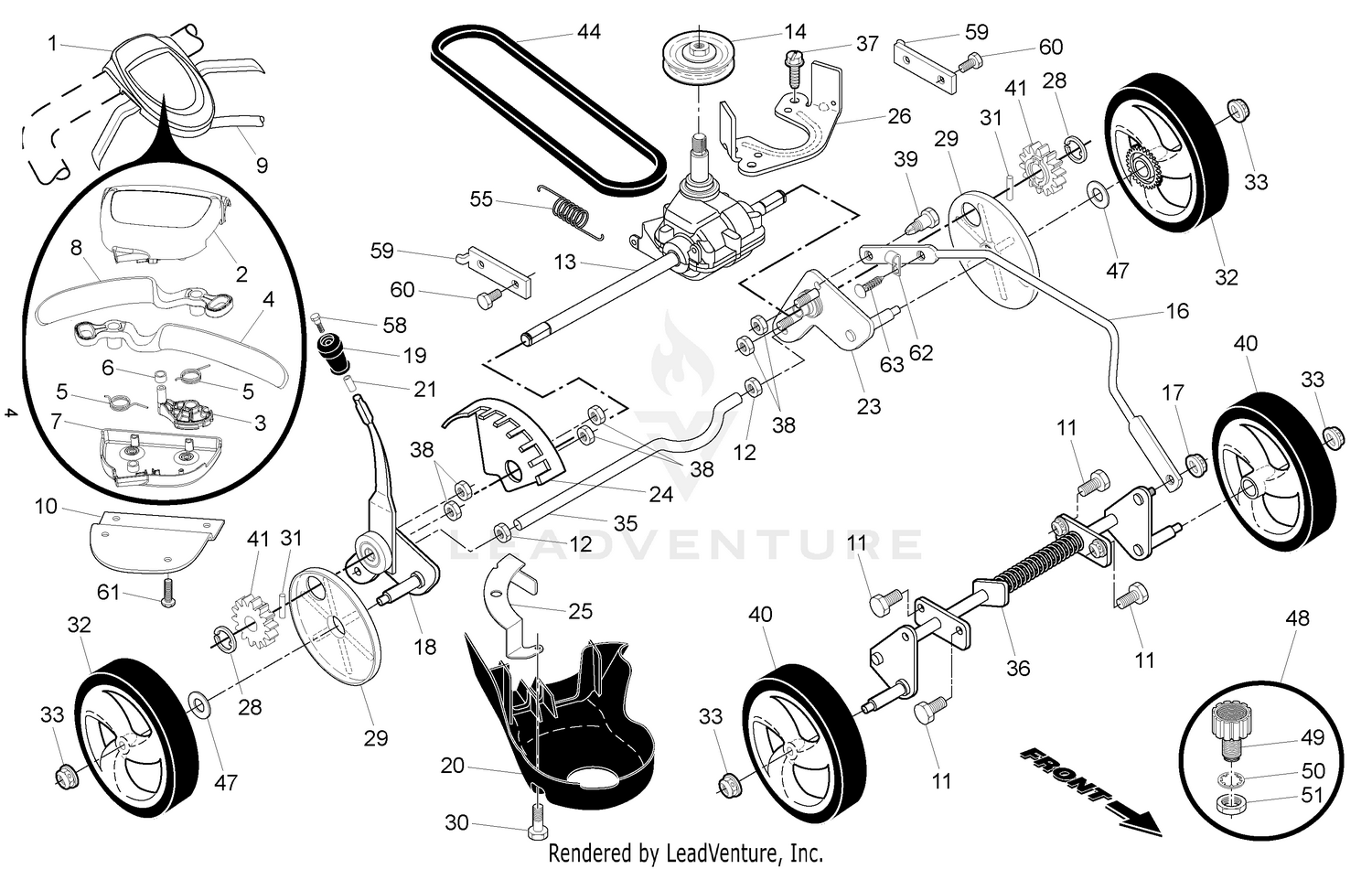

| Ref | Part Number | Description |
|---|
| 2 |
532431638 |
RP CASE.CONT.ROL.TOP.HUSQV. Price: $19.99 |
| 3 |
532432286 |
CAM.GEN2.DUAL.TRIGGER Price: $3.99 |
| 4 |
532433087 |
LEVER.CONTROL.LH.22+.CURVE.BLA Price: $11.99 |
| 5 |
532420381 |
SPRING, DRIVE CONTROL Price: $2.99 |
| 6 |
532432273 |
BUSHING.CONTROL.CAM Price: $3.99 |
| 7 |
532433057 |
COVER.DR.CONTROL.LOWER.GRAY Price: $12.99 |
| 8 |
532432977 |
LEVER.CONTROL.RH.22+.CURV.BLAC Price: $11.99 |
| 9 |
532431650 |
CABLE.CONTROL.22RGD.GEN2 Price: $37.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
817060408 |
SCREW Price: $4.99 |
| 12 |
532426103 |
Nut, Hex Price: Call Us |
| 13 |
532430787 |
TRANSMISSION.22+.RGD.AW2/EZ2 This part replaces 532432738. Price: $89.99 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 16 |
532430030 |
ROD.CONNECTING.RGD.22+.HW.BLAC Price: $17.99 |
| 17 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 18 |
532436336 |
Kit, Selector Assembly Price: Call Us |
| 19 |
532433996 |
KNOB.SEL.SPRING.22+.SP.RIB.BLK Price: $5.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 This part replaces 532427308. Price: $19.99 |
| 21 |
532435242 |
SCREW.PLASTIC.ANCHOR.5/16 Price: $4.99 |
| 23 |
532432432 |
Wheel Axle Assembly, LH Price: Call Us |
| 24 |
532433511 |
BRACKET.WHL.ADJ.9.POS.W/PAD Price: $9.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 30 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
581685101 |
WHEEL.8X1.75.3SPK.RAD3.GREY This part replaces 532413105. Price: $24.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 35 |
532430598 |
AXLE.REAR.RGD Price: $39.99 |
| 36 |
532441541 |
KIT.AXLE.FT.ASM.22+RGD. This part replaces 532426208. Price: $119.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 41 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 44 |
532421527 |
BELT.DRIVE.RGD.PLUS Price: $22.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 48 |
532421114 |
KIT.WASH-OUT.PORT Price: $14.99 |
| 49 |
532421114 |
KIT.WASH-OUT.PORT This part replaces 532419735. Price: $14.99 |
| 50 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 51 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 55 |
532406558 |
SPRING Price: $6.99 |
| 58 |
532435241 |
SCREW.12-14X1.500 Price: $3.99 |
| 59 |
532434460 |
BRACKET.SUPPORT.22+.RWGD.BZP Price: $3.99 |
| 60 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 62 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
