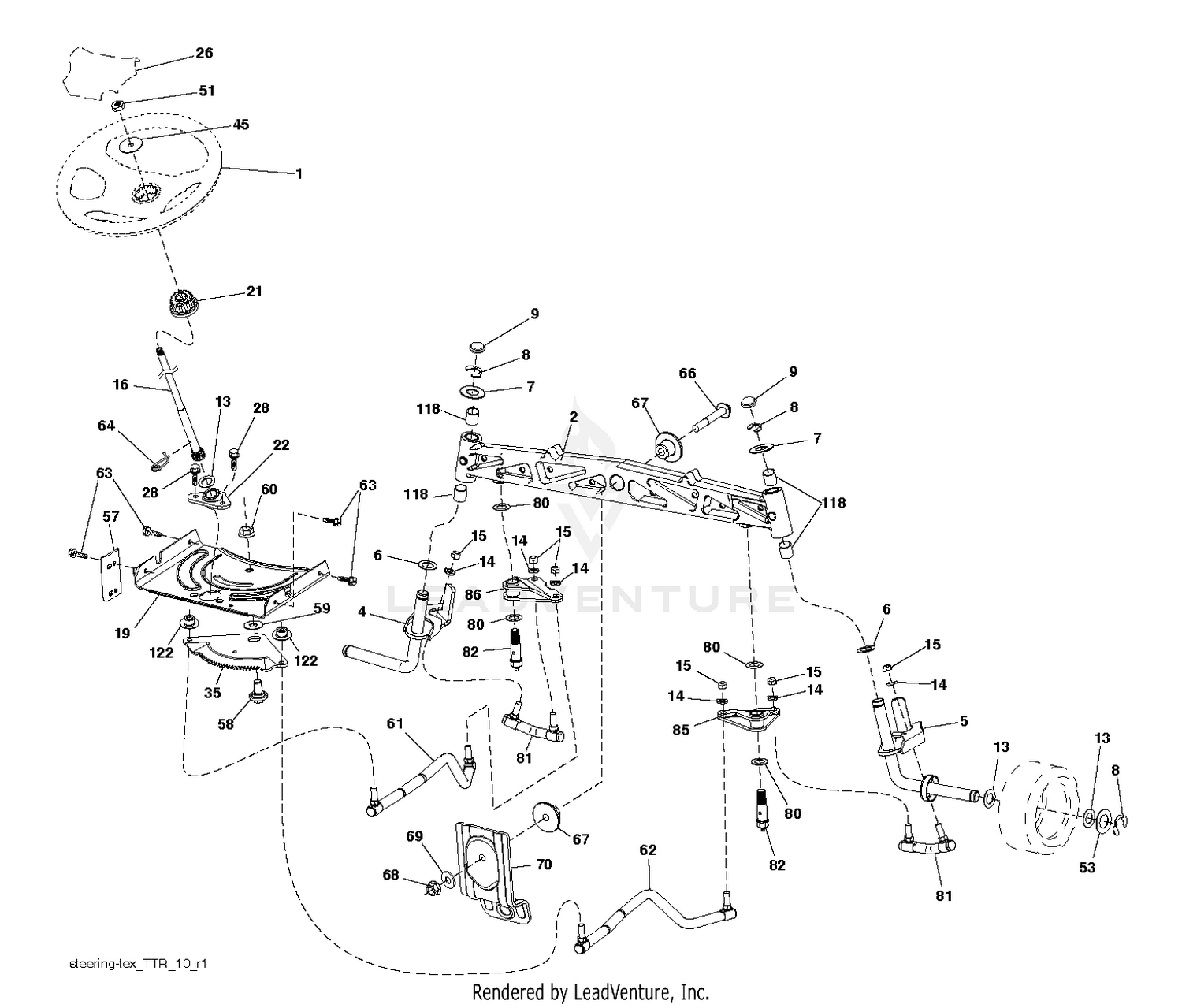

| Ref | Part Number | Description |
|---|
| 1 |
121-8177 |
PULLEY-SINGLE Price: $314.36 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $169.99 |
| 3 |
33115-035 |
SCREW-HH Price: $1.15 |
| 4 |
110-6254 |
BELT-V Price: $35.99 |
| 5 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 6 |
3231-5 |
SCREW-CARR Price: $1.39 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
127-3727-0P |
MOUNT-PULLEY This part replaces 127-3727-03. Price: $19.16 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
98-3095 |
PULLEY-IDLER Price: $111.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
127-3726-0P |
COMPRESSOR MOUNT ASM This part replaces 127-3726-03. Price: $185.43 |
| 11 |
33115-110 |
SCREW-HH Price: $2.92 |
| 12 |
119-0103 |
COMPRESSOR Price: $1,361.16 |
| 13 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
117-2780 |
O-RING Price: $3.33 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
119-0128 |
FITTING-ELBOW, 90 DEG Price: $41.31 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532444212. Price: $34.99 |
| 17 |
115-8882 |
CONDUIT-CONVOLUTED Price: $1.69 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532437747. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR This part replaces 532440770. Price: $39.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 80 |
532001370 |
THRUST WASHER Price: $4.99 |
| 81 |
597069702 |
Links This part replaces 532436887. Price: $9.99 |
| 82 |
532436877 |
Price: Call Us |
| 85 |
529846901 |
SERVICE KIT SUBASM.PIVOT.RH.NZ This part replaces 532441873. Price: $17.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $27.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
