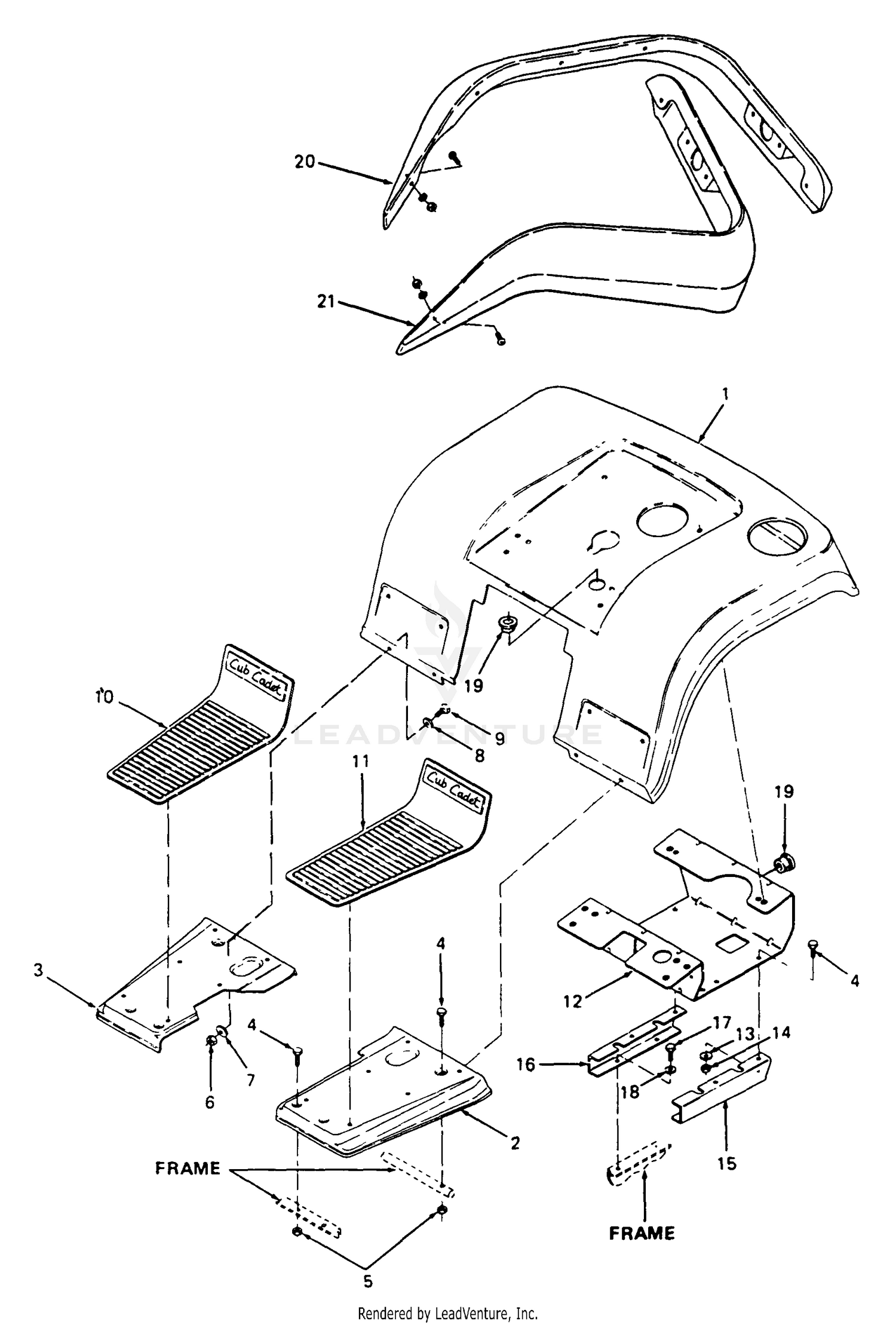

| Ref | Part Number | Description |
|---|
| 1 |
703-2744 |
FENDER Not Available Price: |
| 1 |
94-8102 |
DISCONTINUED Price: Call Us |
| 2 |
703-1797 |
RUNNING BOARD - LH Not Available Price: |
| 3 |
703-2158 |
RUNNING BOARD - RH Not Available Price: |
| 3 |
94-3055 |
CAP - LOWER, JOYSTICK Price: $26.29 |
| 4 |
710-3025 |
Screw, Hex Cap, 5/16-18 x .62 Lg GR5 Price: $3.64 |
| 4 |
94-3056 |
DISCONTINUED Price: Call Us |
| 5 |
712-3009 |
Nut, Hex Center Lock, 5/16-18 GR5 Price: $5.99 |
| 5 |
94-3057 |
SPRING-COMPRESS,JOYSTICK Price: $15.18 |
| 6 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 6 |
94-3058 |
DISCONTINUED Price: Call Us |
| 7 |
3290-93 |
SCREW-HEAD, PAN Price: $0.25 |
| 7 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 8 |
736-0173 |
Washer, Flat, .281 x .73 x .063 Thk Price: $3.76 |
| 8 |
94-8104 |
MICROSWITCH Price: $71.74 |
| 9 |
710-3013 |
Screw, Hex Cap, 1/4-20 x .50 Lg GR5 Price: $4.02 |
| 9 |
94-6753 |
DISCONTINUED Price: Call Us |
| 9 |
98-2195 |
JOYSTICK This part replaces 75-3420. Price: $520.10 |
| 10 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 10 |
735-3030 |
FOOT PAD (RH) Not Available Price: |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
735-3031 |
FOOT PAD (LH) Not Available Price: |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
703-1887A |
SUPPORT ASSEMBLY, SEAT Not Available Price: |
| 13 |
736-0242 |
Washer, Bell, .345 x .88 x .060 Thk Price: $3.75 |
| 13 |
84-3420 |
DECAL - NO RIDERS Price: $10.06 |
| 13 |
93-6689 |
DECAL-NO RIDERS This part replaces 75-5190. Price: $9.75 |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 15 |
703-1815 |
SUPPORT BRACKET-FENDER (LH) Not Available Price: |
| 16 |
703-1814 |
SUPPORT BRACKET-FENDER (RH) Not Available Price: |
| 17 |
710-3025 |
Screw, Hex Cap, 5/16-18 x .62 Lg GR5 Price: $3.64 |
| 17 |
93-1268 |
DECAL-HOC SELECTOR This part replaces 92-7528. Price: $31.62 |
| 17 |
94-4575 |
DECAL - HOC SEL, 6500, JA Price: $15.62 |
| 18 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 18 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 19 |
3220-24 |
NUT-HEX Price: $0.96 |
| 19 |
723-3045 |
SNAP BUSHING 1.0 Not Available Price: |
| 20 |
731-3179 |
FLARE, RH FENDER Not Available Price: |
| 20 |
75-1010 |
SWITCH-REEL Price: $84.90 |
| 21 |
218-498 |
NUT-LOCK Price: $0.68 |
| 21 |
731-3180 |
FLARE-L/H FENDER Not Available Price: |
| 22 |
94-8103 |
DISCONTINUED Price: Call Us |
| 23 |
3217-26 |
NUT-HEX Price: $0.25 |
| 24 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 26 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 27 |
93-8497 |
DISCONTINUED Price: Call Us |
| 28 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 29 |
3290-489 |
KNOB Price: $46.30 |
| 30 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 31 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 32 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 33 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 34 |
3254-20 |
WASHER-LOCK, INT This part replaces 218-589. Price: $1.29 |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 36 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 37 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 38 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 39 |
218-446 |
NUT-HEX Price: $6.09 |
| 40 |
93-1261 |
DISCONTINUED Price: Call Us |
| 40 |
93-9167 |
DECAL - CONSOLE RM 6500 Price: $54.23 |
| 40 |
94-4574 |
DECAL - CONSOLE, 6500, JA Price: $178.33 |
| 41 |
94-1417-03 |
PANEL-CONTROL This part replaces 94-1417. Price: $46.64 |
| 42 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 43 |
27-2360 |
SWITCH Price: $46.56 |
| 44 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 45 |
85-4480 |
KNOB Price: $16.02 |
| 46 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 49 |
93-7587 |
BRACKET-FUSE BLOCK/PANEL Price: $19.16 |
| 50 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 51 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 52 |
104-4235 |
POTENTIOMETER ASM This part replaces 85-4470. Price: $260.80 |
| 53 |
75-5740-03 |
BOX-CONTROL ASM This part replaces 75-5740. Price: $261.87 |
| 54 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 55 |
32128-33 |
NUT-HF Price: $0.25 |
| 56 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 57 |
321-39 |
SCREW-HH Price: $0.42 |
| 58 |
93-1266 |
DECAL - FUSES, CE Price: $13.78 |
| 58 |
94-3091 |
DECAL - FUSES, JAPANESE Price: $18.43 |
| 58 |
94-6349 |
DECAL-FUSES Price: $11.05 |
| 59 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 60 |
2412-126 |
R-CLAMP Price: $2.51 |
| 61 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 62 |
93-3625 |
SPRING-RETURN Price: $20.57 |
| 76 |
237-7 |
O-RING Price: $8.82 |
| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503281804 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503281804. Price: $99.99 |
| 503281805 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503281805. Price: $99.99 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503647801 |
503647801 |
GASKET SET Price: $14.99 |
| 503688201 |
503688201 |
JET Price: $5.99 |
| 503799601 |
503799601 |
LEVER Price: $3.99 |
| 503799901 |
503799901 |
SHAFT Price: $11.99 |
| 503800001 |
503800001 |
THROTTLE FLAP Price: $4.99 |
| 503800401 |
503800401 |
NOZZLE Price: $3.99 |
| 503800701 |
503800701 |
GASKET Price: $64.99 |
| 503800801 |
503800801 |
SCREW Price: $19.99 |
| 503800901 |
503800901 |
SPRING Price: $8.99 |
| 503801101 |
503801101 |
SCREW Price: $4.99 |
| 503801401 |
503801401 |
TUBE Price: $3.99 |
| 503801501 |
503801501 |
BUSHING Price: $11.99 |
| 503855801 |
503855801 |
CHOKE FLAP Price: $3.99 |
| 503855901 |
503855901 |
RP NIPPLE Price: $17.99 |
| 503913901 |
503913901 |
LIMITER CAP Price: $2.99 |
| 503914001 |
503914001 |
LIMITER CAP Price: $4.99 |
| 503915401 |
503915401 |
CAP Price: $7.99 |
| 503943601 |
503943601 |
JET Price: $4.99 |
| 503943701 |
503943701 |
SPRING Price: $0.56 |
| 503943801 |
503943801 |
ADJUSTING SCREW Price: $5.99 |
| 503943901 |
503943901 |
IDLE SCREW Price: $7.99 |
| 504027213 |
504027213 |
IDLING SCREW Price: $5.99 |
| 504130905 |
504130905 |
GASKET Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 537003301 |
537003301 |
JET Price: $5.99 |
| 537018901 |
537018901 |
LEVER Price: $3.99 |
| 537019001 |
537019001 |
SPRING Price: $8.99 |
| 537019101 |
537019101 |
CHOKE SHAFT Price: $14.99 |
| 537077601 |
537077601 |
IMPULSE COVER Price: $4.99 |
