Home / OPE / Riding Products / 653D, Groundsmaster 3240-D Traction Unit, 2006 (SN 260000001-260999999) / Engine Mounted Components

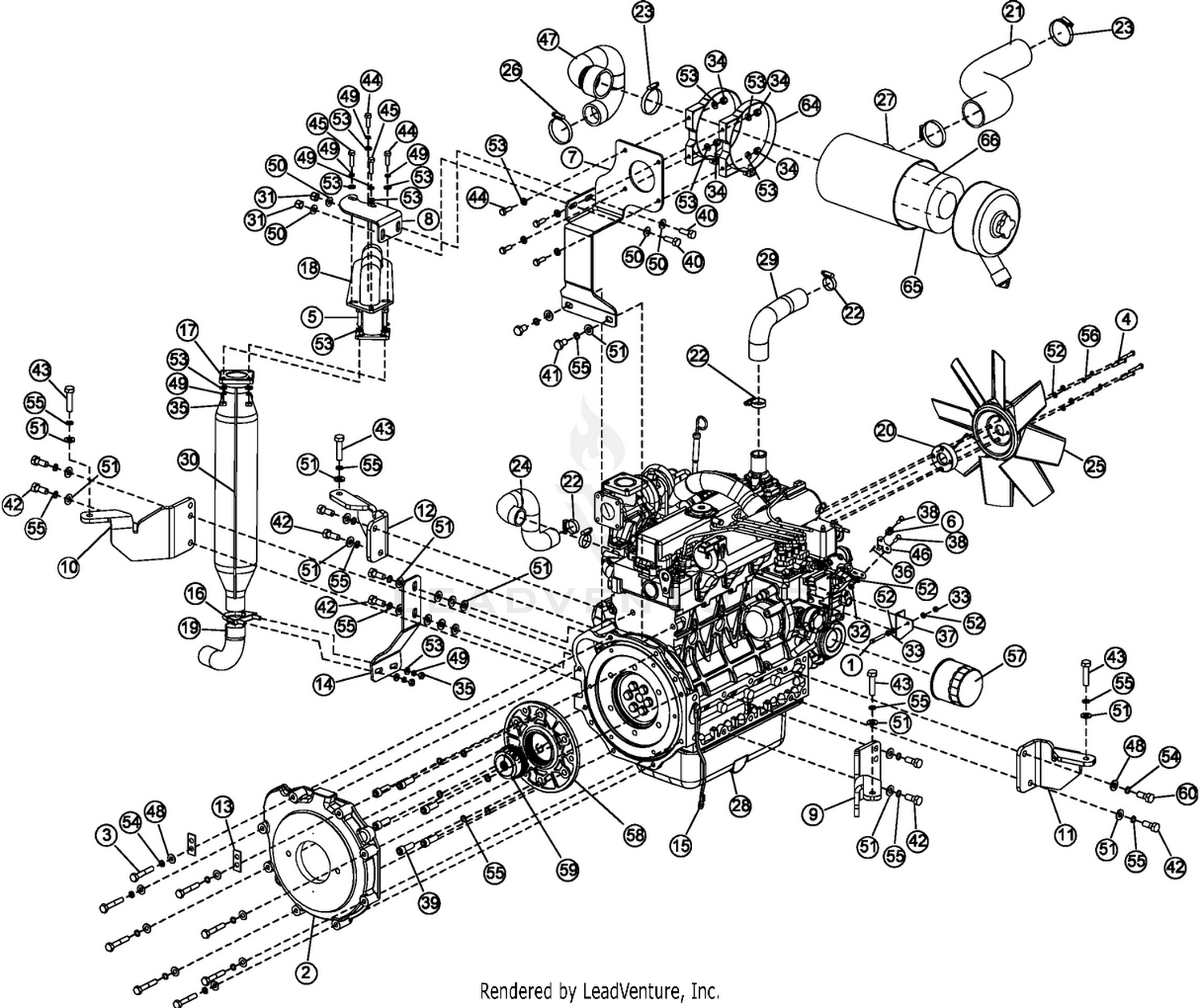

Engine Mounted Components

Engine Mounted Components

Parts (71)

RefPart NumberDescription
1 953832 ADJUSTER THROTTLE CABLE Price: $2.50
2 994880 KIT BELL HOUSING KUBOTA SUPER3 Price: $364.16
3 09397 BOLT M10 X 60 Price: $1.40
4 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
5 09631 BOLT M8*35 Price: $1.40
6 940243 BOSS - THROTTLE CLAMP Price: $48.47
7 994242W BRACKET AIR CLEANER Price: $74.57
8 994243W BRACKET AIR CLEANER SUPPORT Price: Call Us
9 953120W BRACKET ENGINE MOUNT FRONT LH Price: $62.79
10 953121W BRACKET ENGINE MOUNT FRONT RH Price: $62.79
11 953122W BRACKET ENGINE MOUNT REAR LH Price: $60.07
12 953123W BRACKET ENGINE MOUNT REAR RH Price: $60.07
13 74-01-327 BRACKET LOOM TIE Price: $10.83
14 994343W BRACKET MUFFLER MOUNT Price: $49.81
15 70-09-023 EARTH CABLE Price: $10.21
16 74-07-018 CLAMP EXHAUST 45MM S.8878 Price: $3.82
17 15471-12230 EXHAUST GASKET - MUFFLER Price: $4.94
18 994405 EXHAUST MANIFOLD W/A Price: $216.25
19 950415 EXHAUST TAIL PIPE Price: $38.23
20 994509 FAN SPACER R324 Price: $62.77
21 70-07-052 VACUUM HOSE Price: $49.23
22 924437 CLAMP-HOSE Price: $13.31
23 65-07-042 HOSE CLIP(58-75MM DIA) Price: $2.81
24 953805 HOSE RADIATOR BOTTOM Price: $66.23
25 994821 IMPELLER DIA 380 Price: $257.85
26 910936 JUBILEE CLIP 45-60MM 102010 Price: $2.97
27 111-5014 CLEANER-AIR, ASM This part replaces 953862. Price: $338.52
28 994800 ENGINE V2003M-T KUBOTA Price: $5,023.82
29 70-07-150 HOSE RADIATOR Price: $61.59
30 19077-12110 MUFFLER Price: $293.49
31 09447 NUT M10 X 1.5 NYL INS Price: $1.40
32 09438 NUT M6 X 1.5 PLAIN Price: $1.39
33 09437 NUT M6 PLAIN Price: $1.40
34 09442 NUT M8 NYL INS P TYPE Price: $1.40
35 ZNH1H000U HEX.NUT M8 Price: $1.40
36 70-07-107 SPLIT PIN 0 2,5*16 Price: $1.35
37 994382W BRACKET THROTTLE CONTROL Price: $37.99
38 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
39 09421 DISCONTINUED Price: Call Us
40 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
41 70-11-016 HED HED.SET SCREW M12*20 FINE Price: $4.88
42 70-11-017 HEX HED SETSCREW M12*30 FINE Price: $5.90
43 09417 SETCSREW - HIGH TENSILE Price: $5.82
44 03162 STEEL BOLT Price: $1.39
45 09369 SETSCREW M8 X 30 Price: $1.40
46 994381 PLATE THROTTLE CONTROL Price: $12.19
47 994630 HOSE AIR TUBE Price: $121.87
48 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
49 03469 WASHER M8 SC SPRING Price: $1.40
50 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
51 HY09485 WASHER M12 PLAIN Price: $1.40
52 09472 WASHER-PLAIN Price: $1.25
53 ZWP1H000U WASHER (M8) Price: $1.40
54 09480 WASHER M10 SC SPRING Price: $1.36
55 09599 WASHER Price: $1.42
56 09474 WASHER M6 SC SPRING Price: $1.34
57 104-5169 FILTER-OIL This part replaces 17321-32430. Price: $12.27
58 994883 DRIVE FLANGE V2203/V2003M-T Price: $111.15
59 994882 DRIVE HUB V2203/V2003M-T Price: $104.37
60 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
61 994881 BELL HOUSING KUBOTA SUPER 3 Price: $336.96
62 994882 DRIVE HUB V2203/V2003M-T Price: $104.37
63 994883 DRIVE FLANGE V2203/V2003M-T Price: $111.15
64 950820 MOUNTING BAND AIR CLEANER Price: $28.89
65 70-07-136 AIR FILTER ELEMENT Price: $34.51
66 70-07-163 FILTER SAFETY ELEMENT Price: $31.47
67 104-5169 FILTER-OIL This part replaces 17321-32430. Price: $12.27
68 16404-64010 ALTERNATOR - V2003MT Price: Call Us
69 15461-63010 STARTER MOTOR - V2003MT Price: Call Us
70 AU106649 BELT-FAN This part replaces 1G953-97010. Price: $71.14
71 1A021-60010 SOLENOID STOP - V2003MT Price: Call Us
