| Ref | Part Number | Description |
|---|
| 1 |
603000579 |
SCREW, M8-125 X 22 HEX GR.8.8 This part replaces 603000158. Price: $2.99 |
| 1 |
98-9589 |
NUT Price: $1.46 |
| 2 |
603003082 |

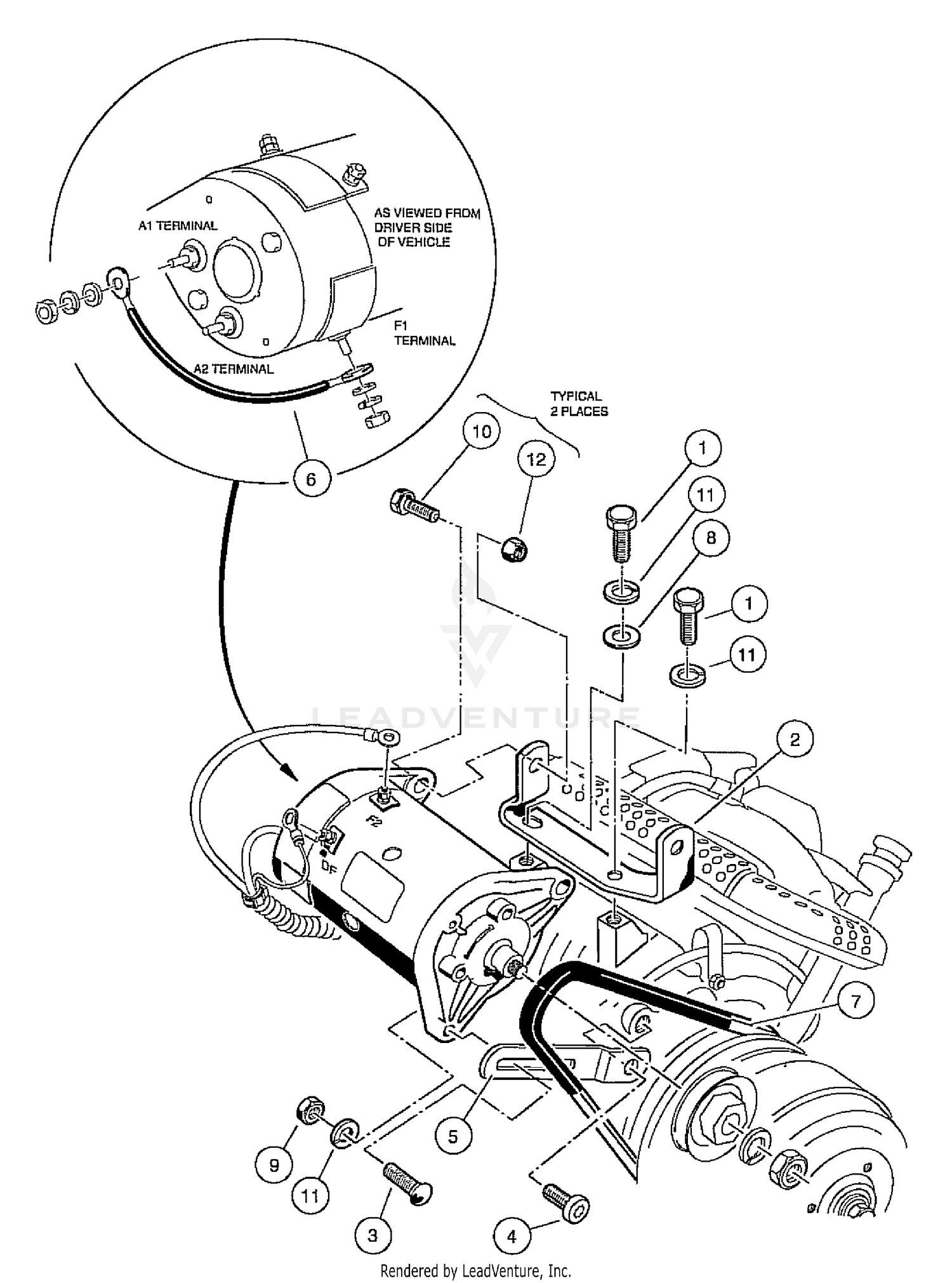

BRACKET, FE290 S/G MOUNTING This part replaces 603002083. Price: $22.99 |
| 2 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 3 |
603000273 |
BOLT, 5/16-18 RD HD SQ NECK Price: $2.99 |
| 3 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 4 |
603000277 |
SCREW, M8-1.25 X 18MM TORX Price: $3.99 |
| 4 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 5 |
603000375 |
BRACKET, S/G-ADJUSTABLE Price: $24.99 |
| 5 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 6 |
603000524 |
WIRE ASSY, #6 GREEN Price: $27.99 |
| 6 |
98-9371 |
O-RING Price: $2.56 |
| 7 |
603000589 |
BELT, STARTER-GENERATOR Price: $24.99 |
| 7 |
98-7572 |
NUT Price: $0.32 |
| 8 |
603000065 |
WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 8 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 9 |
603000066 |
NUT, 5/16-18 HEX Price: $1.99 |
| 9 |
98-9661 |
CONTROL PLATE ASM Price: $167.65 |
| 10 |
603000059 |
SCREW Price: $2.99 |
| 10 |
98-9362 |
STUD Price: $0.66 |
| 11 |
603000072 |
LOCKWASHER, 5/16 SPLIT Price: $1.99 |
| 11 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 12 |
98-9637 |
GASKET Price: $3.98 |
| 13 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 14 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 15 |
98-7692 |
BOLT Price: $0.92 |
| 16 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 17 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 18 |
99-8348 |
BOLT Price: $0.24 |
