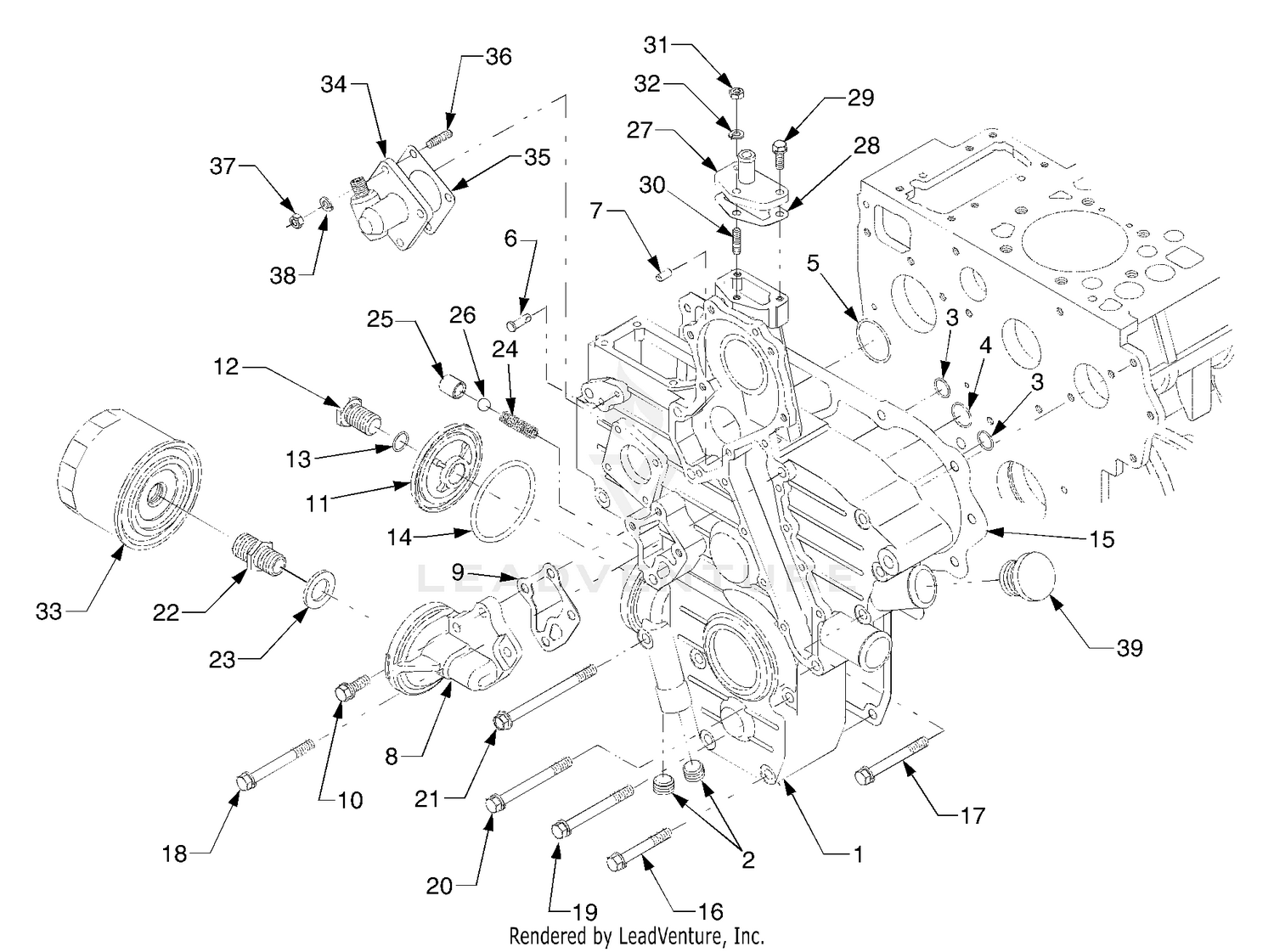

Gear Case
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 531222001 | COMBINATION WRENCH COMBI TOOL This part replaces 503558501. Price: $5.99 |
| 2 | 531222001 | COMBINATION WRENCH COMBI TOOL This part replaces 501691701. Price: $5.99 |
| 2 | DD-E5800-96031 | PLUG-GEAR CASE Not Available Price: |
| 3 | 503558602 | L-SPANNER Price: $2.99 |
| 3 | DD-04811-00150 | O-RING Not Available Price: |
| 4 | 503558601 | L-SPANNER Price: $2.99 |
| 4 | DD-04811-00200 | O-RING Not Available Price: |
| 5 | 503551601 | OIL CAP This part replaces 503621201. Price: $6.99 |
| 5 | DD-04811-00360 | O-RING Not Available Price: |
| 6 | 501911402 | GREASES This part replaces 501911401. Price: $7.99 |
| 6 | DD-15221-56282 | START SPRING PIN Not Available Price: |
| 7 | DD-05012-00612 | PIN Not Available Price: |
| 8 | 503217016 | SCREW Price: $2.99 |
| 8 | DD-E6500-32612 | FILTER HEAD-ENG OI Not Available Price: |
| 9 | DD-E5800-32622 | GASKET-FILTER SUPT Not Available This part replaces DD-E5800-32621. Price: |
| 10 | DD-01123-50825 | HEX BOLT Not Available Price: |
| 11 | 76-0860 | SHAFT-COUPLING Price: $688.74 |
| 11 | DD-E5800-32882 | COVER-GEAR CASE Not Available Price: |
| 12 | 76-0850 | BEARING-THRUST Price: $30.56 |
| 12 | DD-E5800-32912 | BOLT-GEAR CASE COV Not Available Price: |
| 13 | 76-0960 | LINK-DRIVE Price: $345.26 |
| 13 | DD-04811-00150 | O-RING Not Available Price: |
| 14 | 94-3662 | SCREW-CAP, HH Price: $13.47 |
| 14 | DD-E5800-96831 | O-RING Not Available Price: |
| 15 | DD-E5800-04133 | GEAR CASE GASKET Not Available Price: |
| 16 | DD-01123-50860 | BOLT Not Available Price: |
| 17 | 3257-42 | KEY-WOODRUFF Price: $5.99 |
| 17 | DD-01123-50870 | BOLT Not Available Price: |
| 18 | 92-9754 | PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 18 | DD-01123-50875 | BOLT Not Available Price: |
| 19 | DD-01123-50880 | BOLT Not Available Price: |
| 20 | DD-01123-50885 | BOLT Not Available Price: |
| 21 | DD-01754-50801 | FLANGE BOLT Not Available Price: |
| 22 | 76-0840 | MANIFOLD Price: $790.28 |
| 22 | DD-15521-32291 | OIL FILTER NIPPLE Not Available Price: |
| 23 | DD-04011-50180 | FLAT WASHER Not Available Price: |
| 24 | 76-0890 | END COVER ASM Price: $981.97 |
| 24 | DD-15241-36952 | SPRING Not Available Price: |
| 25 | DD-E5500-36932 | SEAT-BALL Not Available Price: |
| 26 | DD-07715-03213 | DETENT BALL Not Available Price: |
| 27 | DD-15521-73321 | WATER RETURN FLANGE Not Available Price: |
| 28 | DD-15521-73331 | WATER RETURN GASKET Not Available Price: |
| 29 | DD-01023-50620 | HEX BOLT Not Available Price: |
| 30 | DD-01513-50616 | STUD Not Available Price: |
| 31 | DD-02056-50060 | HEX NUT Not Available Price: |
| 32 | DD-04512-50060 | LOCK WASHER Not Available Price: |
| 33 | DD-E6201-32443 | Filter, Engine Oil Price: $15.89 |
