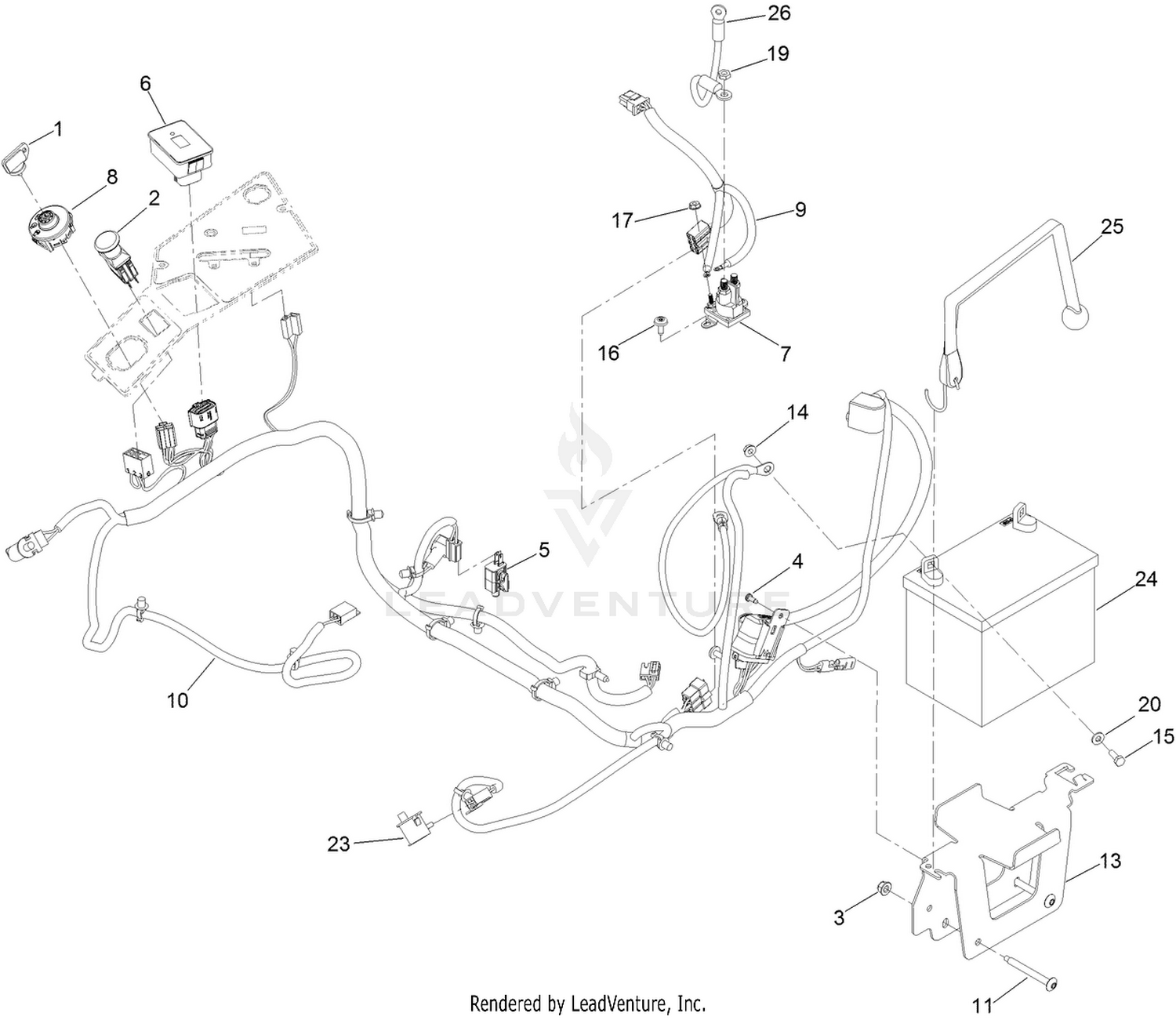

Electrical Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63-8360 | KEY-IGNITION Price: $5.29 |
| 2 | 103-5221 | SWITCH-PTO Price: $36.77 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 105-6849 | SCREW-FORMING, THREAD Price: $0.60 |
| 5 | 110-6765 | SWITCH Price: $12.99 |
| 6 | 116-5609 | MODULE ASM Price: $97.01 |
| 7 | 117-1197 | SOLENOID Price: $30.64 |
| 8 | 137-4100 | SWITCH-IGNITION Price: $24.85 |
| 9 | 126-5036 | ADAPTER-HARNESS, WIRE Price: $33.39 |
| 11 | 126-6267 | SCREW-TORX Price: $1.95 |
| 13 | 126-6725-03 | TRAY-BATTERY Price: $18.71 |
| 14 | 32128-33 | NUT-HF Price: $0.25 |
| 15 | 321-4 | SCREW-HH Price: $0.99 |
| 16 | 126-6266 | SCREW-TORX Price: $0.91 |
| 17 | 32149-8 | NUT-KEPS Price: $0.88 |
| 19 | 3220-2 | NUT-JAM Price: $0.50 |
| 20 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 23 | 82-2190 | SWITCH-BAIL Price: $13.99 |
| 25 | 126-7627 | STRAP-BUNGEE Price: $8.66 |
