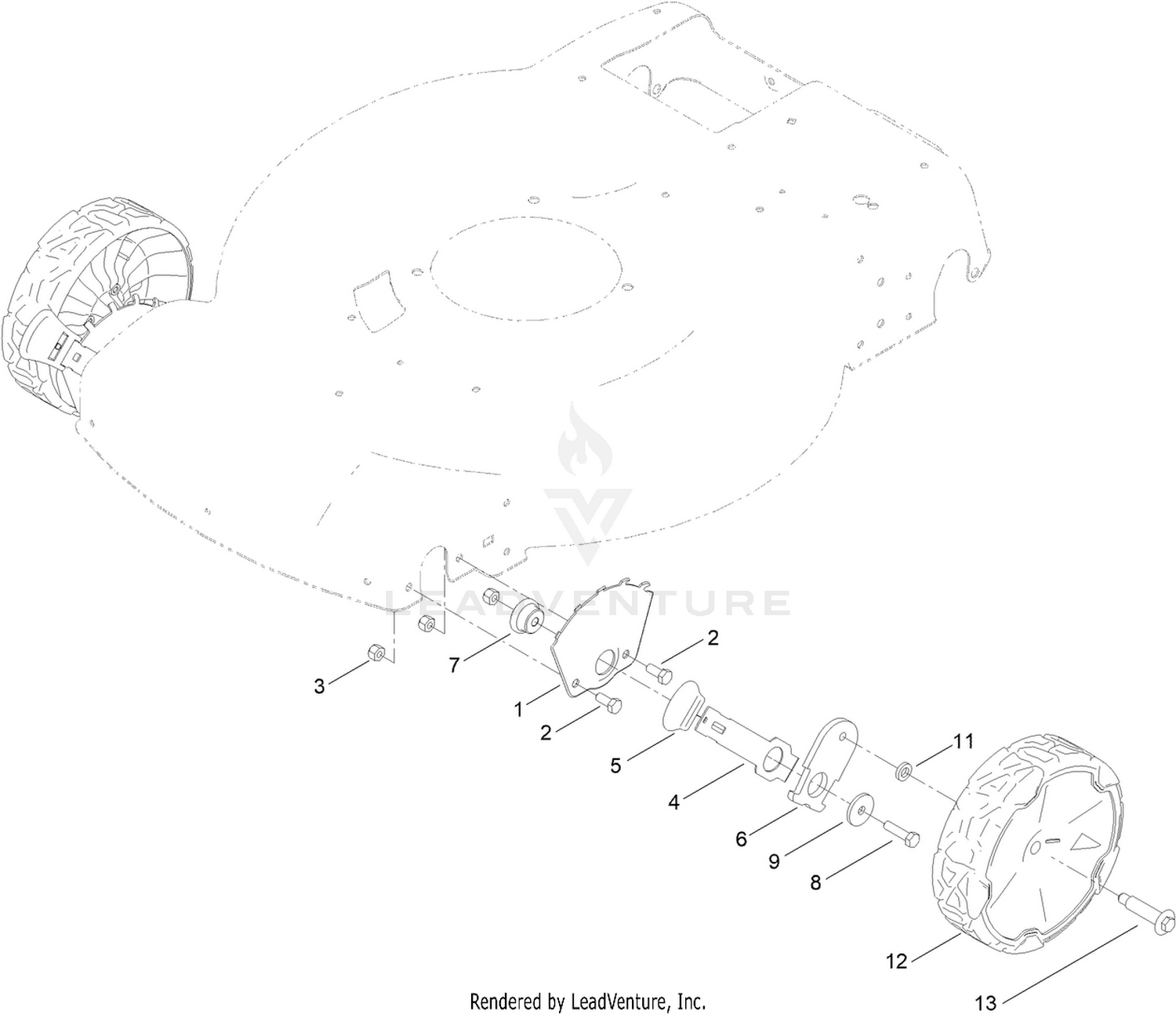

Front Wheel and Height-of-Cut Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-1956-05 | PLATE-HOC,FRONT FSVQ Price: Call Us |
| 2 | 137-3052 | SCREW-HH Price: $0.34 |
| 3 | 119-4038 | NUT-HEX Price: $0.31 |
| 4 | 105-1809 | ARM-SPRING Price: $7.52 |
| 5 | 110-0549 | KNOB-HOC Price: $1.08 |
| 6 | 137-9128 | ARM-PIVOT, FRONT Price: $5.46 |
| 7 | 105-1818 | BUSHING-MOUNT, HOC Price: $3.26 |
| 8 | 120-9696 | SCREW-HH Price: $0.31 |
| 9 | 139-1704 | WASHER-FLAT Price: $0.67 |
| 11 | 139-5449 | WASHER-WHEEL BOLT Price: $0.65 |
| 12 | 140-2355 | ASM-8" WHEEL, IDLER Price: $19.68 |
