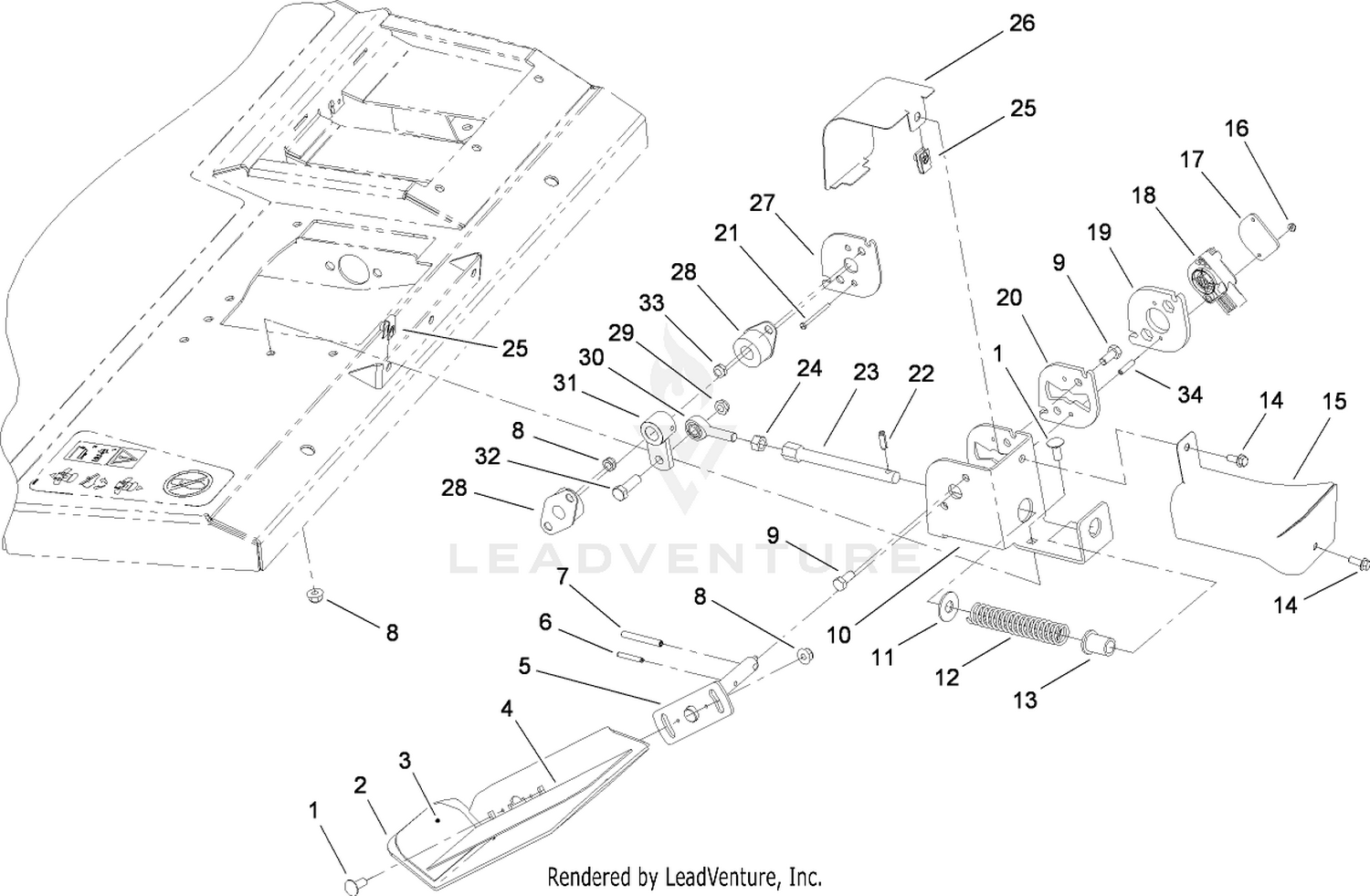

| Ref | Part Number | Description |
|---|
| 1 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 2 |
136-4368-01 |
PEDAL-TRACTION This part replaces 110-5986-01. Price: $45.98 |
| 3 |
93-5368 |
ABRASIVE-PEDAL Price: $9.23 |
| 4 |
93-5347 |
ABRASIVE-PEDAL Price: $12.38 |
| 5 |
110-6020 |
SHAFT-PEDAL, TRACTION Price: $145.38 |
| 6 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 7 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 9 |
322-3 |
SCREW-HH Price: $0.79 |
| 10 |
114-0741-01 |
BRACKET-MOUNTING Price: $65.27 |
| 11 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 12 |
84-9100 |
SPRING Price: $11.99 |
| 13 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 14 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 15 |
114-5904-01 |
COVER-SPRING Price: $29.00 |
| 16 |
3296-9 |
NUT-HEX Price: $0.25 |
| 17 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 18 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 19 |
110-6019 |
PLATE-MOUNTING Price: $36.63 |
| 20 |
110-6023 |
PLATE-SHIM Price: $14.40 |
| 21 |
32105-25 |
SCREW-SHH Price: $0.81 |
| 22 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 23 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 24 |
3219-3 |
NUT-HEX Price: $0.34 |
| 25 |
107069 |
CLIP Price: $1.79 |
| 26 |
114-5903-01 |
COVER-PEDAL, TRACTION Price: $29.53 |
| 27 |
110-6024 |
PLATE-COVER Price: $17.82 |
| 28 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 29 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 30 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 31 |
114-0840 |
HUB-PEDAL, TRACTION Price: $60.11 |
| 32 |
323-18 |
SCREW-HH Price: $0.82 |
| 33 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
