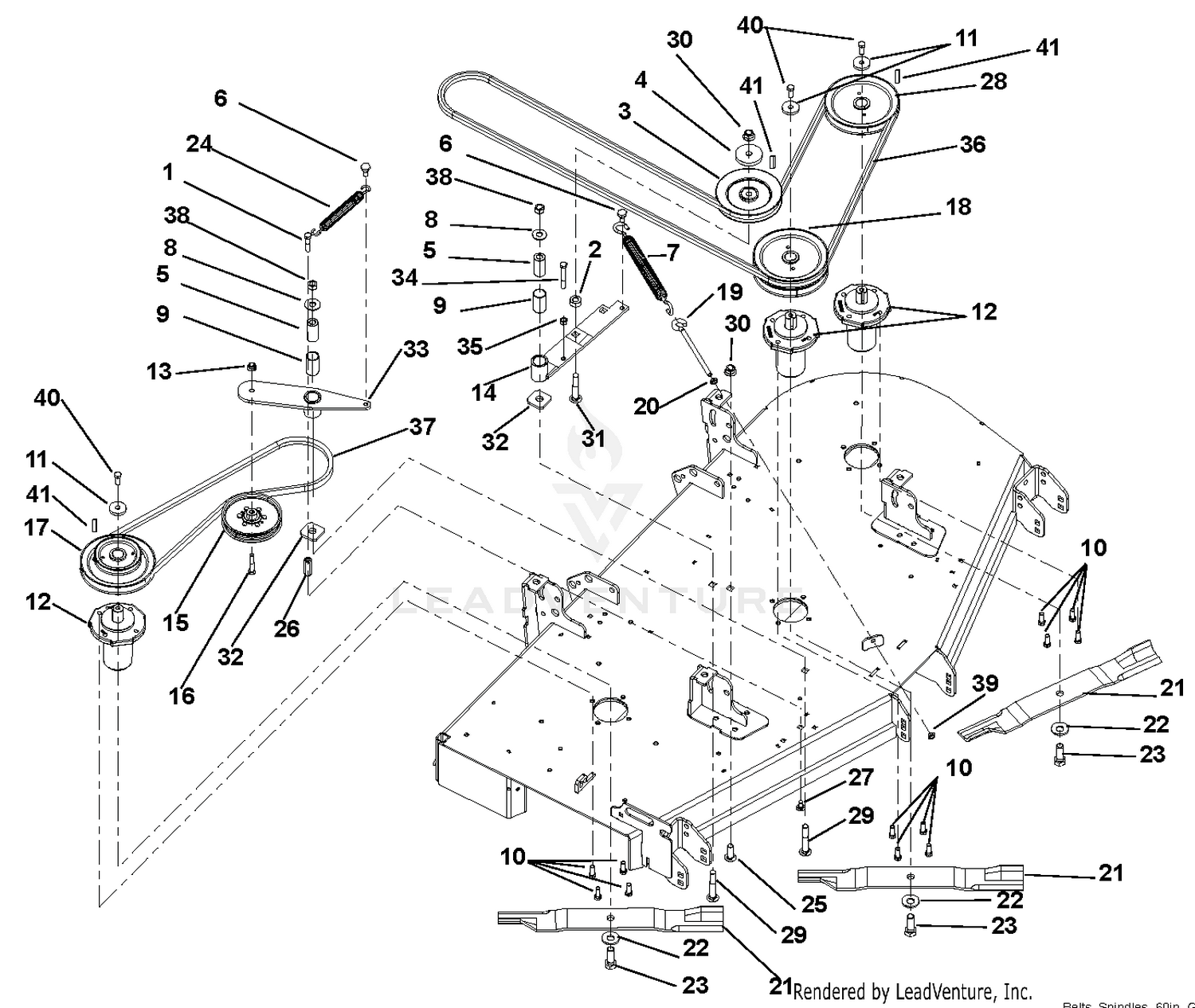

| Ref | Part Number | Description |
|---|
| 1 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 2 |
05500905 |
BSHG, SPCR .502X.997X.50 PM Price: $10.45 |
| 3 |
07300527 |
SHV, .50"ID X 6.00"OD V-IDLER Price: $47.95 |
| 4 |
00450100 |
CAP, IDLER BEARING SEALING Price: $13.45 |
| 5 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 6 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 8 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 9 |
05501234 |
BSHG, 1.00X1.125X1.937 This part replaces 05500123. Price: $9.95 |
| 10 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 11 |
04530500 |
RETAINER, SHEAVE Price: $7.95 |
| 12 |
59125000 |
ASM, MAINT FREE ALUM SPINDLE This part replaces 59215400. Price: $214.45 |
| 13 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 14 |
03774251 |
WMT, IDLER ARM Price: $61.45 |
| 15 |
07352400 |
IDLER- 5" FLANGED This part replaces D28050. Price: $35.95 |
| 16 |
05901718 |
BLT,HEX .38-16X2.00 G5 ZCC This part replaces 05963300. Price: $2.95 |
| 17 |
07329167 |
PULLEY, DBL-1"IDX6.75"&4.25"OD Price: $76.45 |
| 18 |
59211500 |
KIT-07328867 PULLEY REPLACEMNT This part replaces 07328867. Price: $81.95 |
| 19 |
07001604 |
BOLT, .38-16X6.00 .62 DIA EYE Price: $6.45 |
| 20 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 21 |
09081200 |
BLADE, MOWER (20.50") Price: $25.95 |
| 22 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 24 |
08300728 |
SPRING- EXTENSION Price: $24.95 |
| 25 |
06200006 |
BLT-RDHDSHSQNKFT.50-13X1.50 G5 Price: $5.45 |
| 26 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 27 |
06200235 |
BLT,RHSSN .38-16X1.00 G5 ZCC This part replaces 06212000. Price: $1.45 |
| 28 |
59211600 |
KIT-07328967 PULLEY REPLACEMNT This part replaces 07328967. Price: $74.45 |
| 30 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 32 |
06400829 |
WSHR-FLT .640X1.75X.250 Price: $3.95 |
| 33 |
04519551 |
WDMT, IDLER ARM Price: $71.45 |
| 34 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 35 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 36 |
07200510 |
HEX BELT, BB-WRAPPED Price: $132.95 |
| 37 |
07200038 |
V-BELT, B-COGGED Price: $59.95 |
| 38 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC This part replaces 06536300. Price: $3.95 |
| 39 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 40 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
| 08866900 |
BLADE, |
MULCHING (20.50") Price: $32.95 08866900 |
