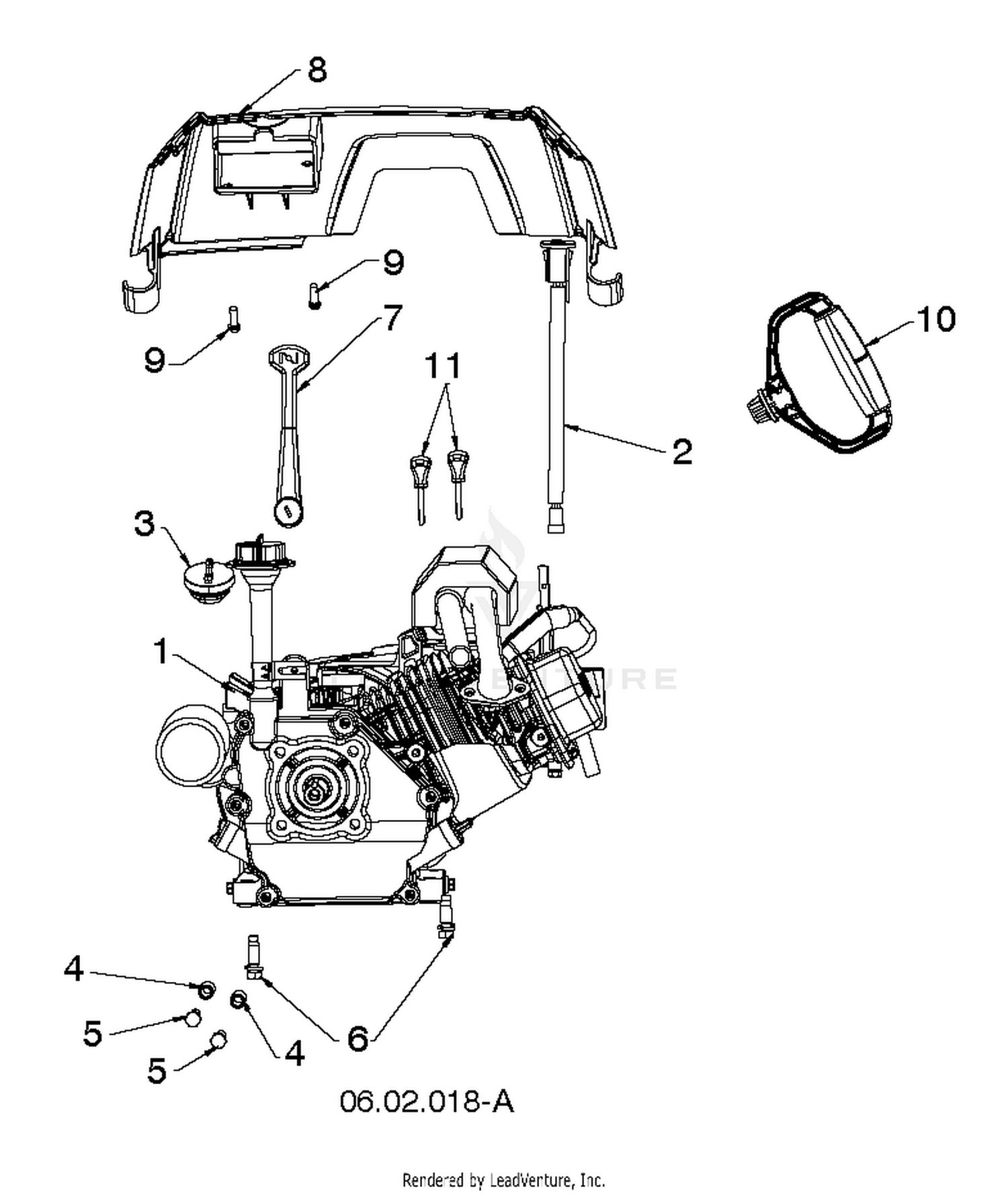

| Ref | Part Number | Description |
|---|
| 1 |
147-0901 |
ARM-PITCH This part replaces 119-9307-01. Price: $179.09 |
| 2 |
117-9456 |
CROSSLINK Price: $54.18 |
| 2 |
580850201 |
SWITCH.KEY.SST.SNOW Price: $19.99 |
| 3 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 3 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) This part replaces 532436235. Price: $8.99 |
| 4 |
120-3221 |
LH REEL NUT ASM Price: $33.34 |
| 4 |
532434857 |
SPACER.ENGINE Price: $2.99 |
| 5 |
115-3340 |
WEIGHT ASM Price: $136.76 |
| 5 |
532435578 |
SCREW. 5/16-24 X 2.00"HHCS Price: $2.99 |
| 6 |
115-5227 |
MOTOR ADAPTER ASM Price: $98.96 |
| 6 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 7 |
117-6706 |
CLAMP-MOTOR Price: $34.81 |
| 7 |
532434874 |
LEVER.CHOKE Price: $2.99 |
| 8 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 8 |
532437658 |
COVER REAR.LOWER.SSST.BLACK Price: $14.99 |
| 9 |
117-6849 |
SHIELD-SPRING Price: $48.38 |
| 9 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 10 |
3274-18 |
SCREW-HSH Price: $8.88 |
| 10 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT This part replaces 532436276. Price: $6.99 |
| 11 |
119-4038 |
NUT-HEX Price: $0.31 |
