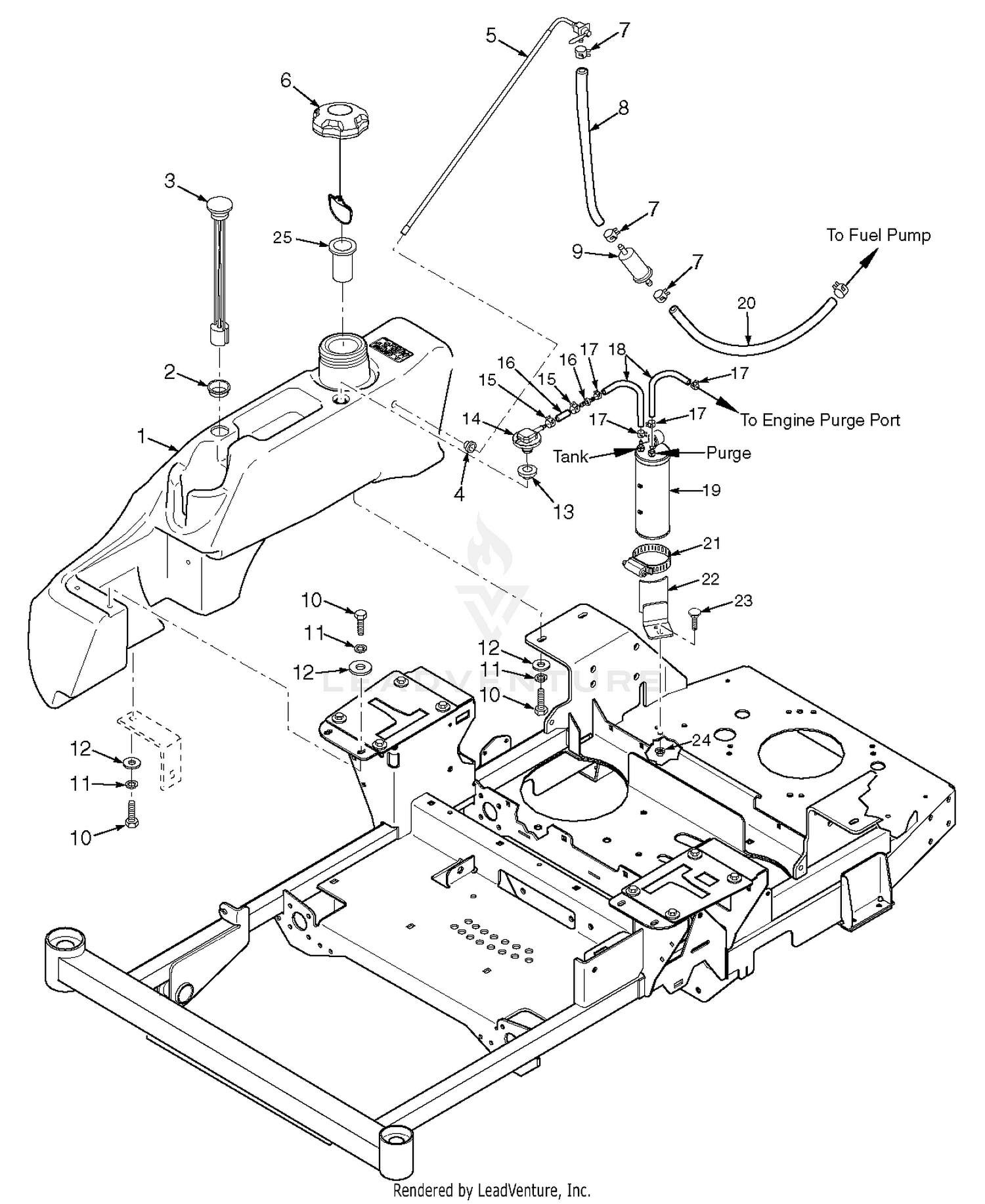

| Ref | Part Number | Description |
|---|
| 1 |
462750 |
FUEL TANK ASSY, SFZ This part replaces 462379. Price: Call Us |
| 2 |
483536 |
Grommet Price: Call Us |
| 3 |
484243 |
Fuel Gauge Assembly Price: Call Us |
| 4 |
482571 |
Bushing, .56 Dia. Viton Price: Call Us |
| 5 |
483555 |
Fuel Tube Assembly Price: Call Us |
| 6 |
484286 |
Fuel Cap, Tethered Price: Call Us |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Price: Call Us |
| 10 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 11 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 12 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 13 |
484285 |
Grommet, Viton Price: Call Us |
| 14 |
484333 |
Remote Vent Price: Call Us |
| 15 |
48059-02 |
Clamp, Fuel Hose 7/32" Price: Call Us |
| 17 |
48059-05 |
Clamp, Vapor Recovery Hose Price: Call Us |
| 19 |
484342 |
Carbon Canister Price: Call Us |
| 21 |
48136-17 |
Clamp, Hose Price: Call Us |
| 22 |
452226 |
Bracket Weldment - SPZ52H, SPZ-61H-27SR Price: Call Us |
| 22 |
452233 |
Bracket Weldment - SPZ61H Price: Call Us |
| 23 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 24 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 25 |
484279-01 |
Tube, Fuel Tank Insert Price: Call Us |
