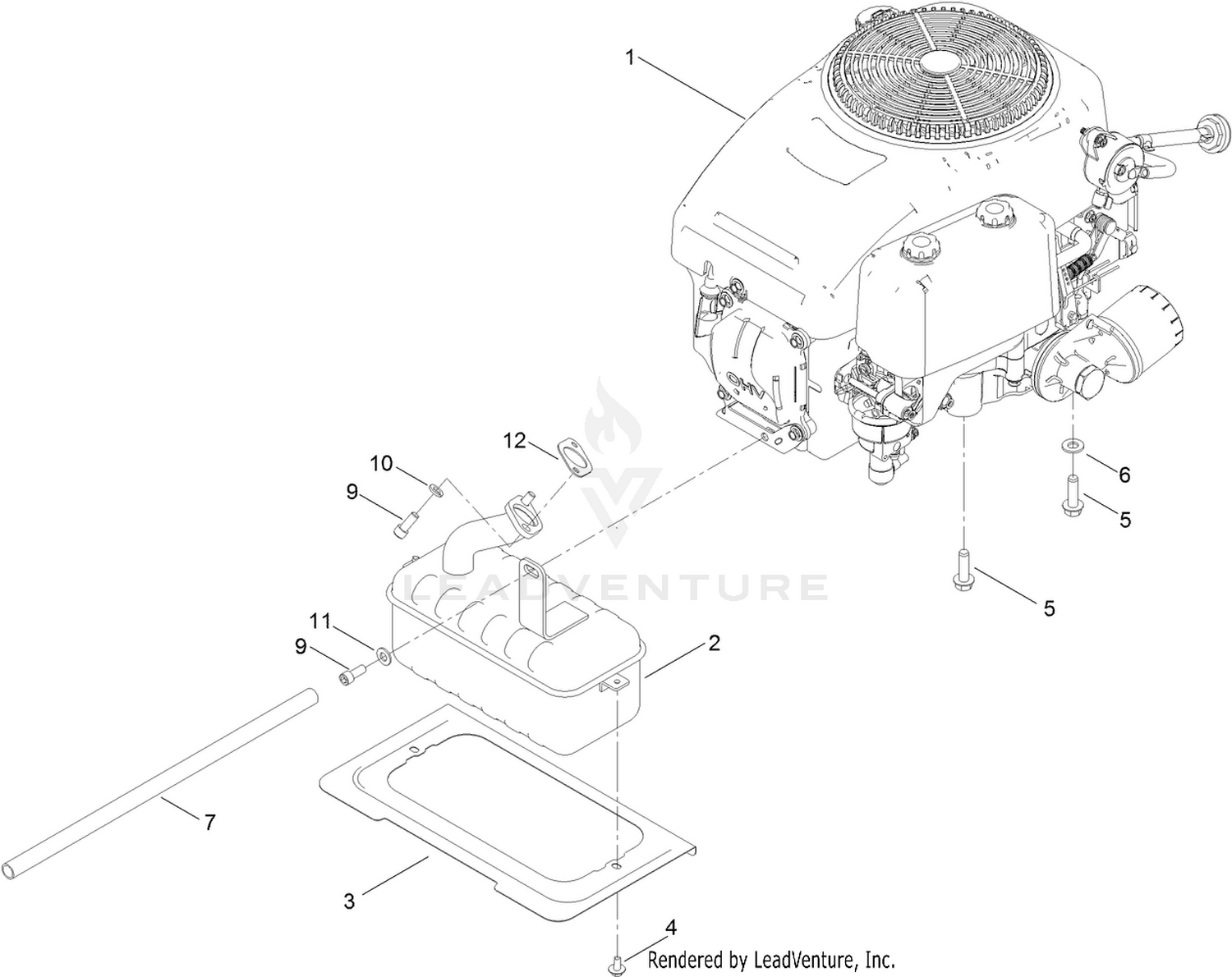

Engine and Muffler Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-9973 | ENGINE-LC1P92F-1 Price: $1,259.06 |
| 2 | 130-0691 | MUFFLER Price: $80.05 |
| 3 | 131-1071-03 | SHIELD-HEAT Price: $8.40 |
| 4 | 139-1700 | SCREW-HWH, THD ROLL Price: $0.45 |
| 5 | 139-2576 | SCREW-HWH Price: $1.46 |
| 5 | 32144-109 | SCREW-THD Price: $1.29 |
| 6 | 115-1166 | WASHER-FLAT Price: $3.08 |
| 7 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 9 | 3274-10 | SCREW-HSH Price: $0.47 |
| 10 | 136-8682 | WASHER-LOCK Price: $0.34 |
| 10 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 11 | 120-9683 | WASHER-PLAIN Price: $0.25 |
| 11 | 3256-23 | WASHER-PLAIN Price: $0.28 |
