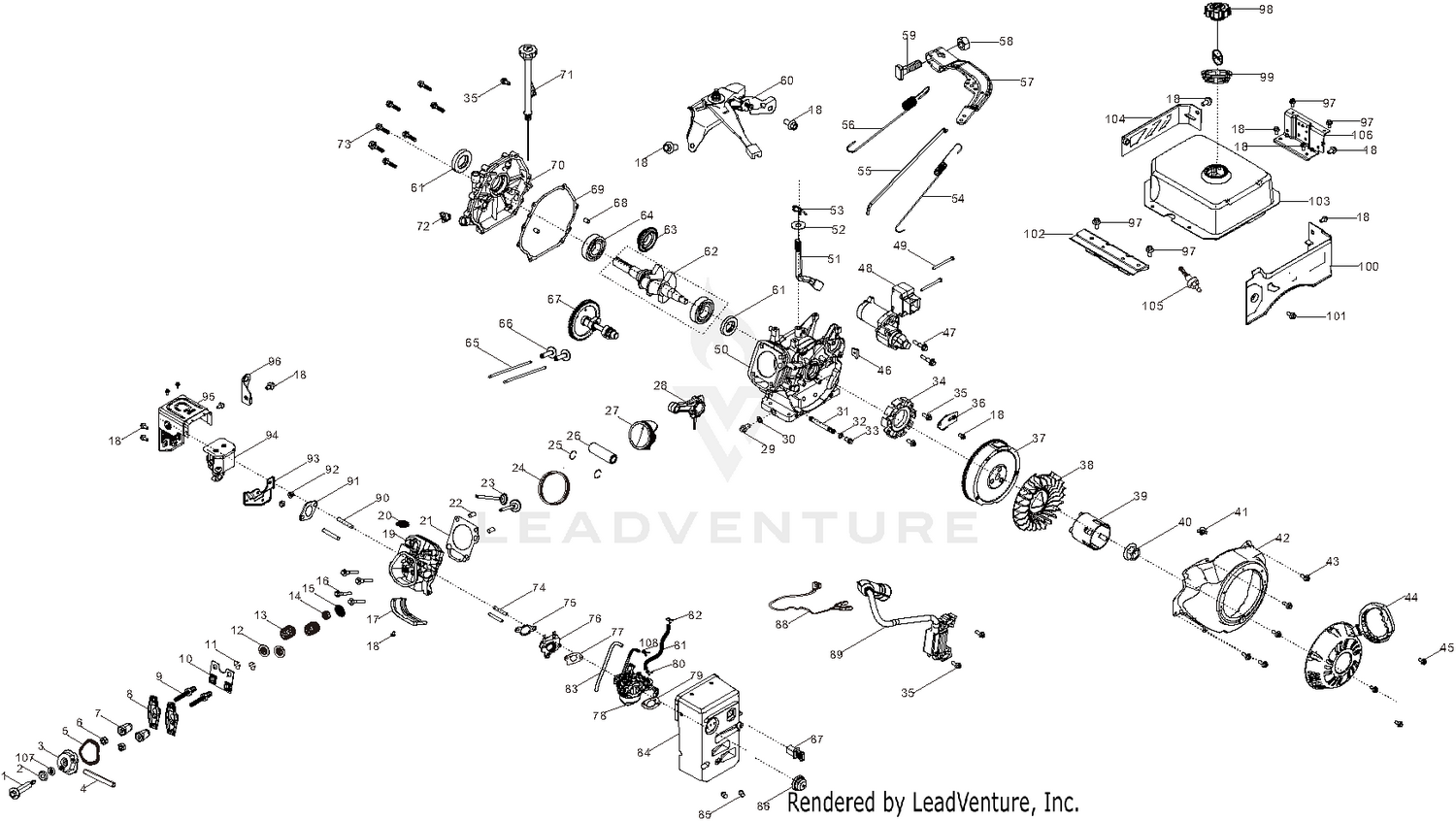

Engine - 08201510

Engine - 08201510

Parts (100)

RefPart NumberDescription
1 20100015 BOLT, VALVE COVER Price: $2.95
2 20100016 SEAL, VALVE COVER BOLT Price: $2.45
3 20100033 ASM, CYLINDER HEAD COVER Price: $8.95
4 20100108 TUBE, BREATHER Price: $1.45
5 20100014 GASKET, VALVE COVER Price: $3.45
6 20100060 NUT, VALVE LOCK Price: $0.95
7 20100062 NUT, VALVE ADJUSTING Price: $1.45
8 20100059 ROCKER, VALVE Price: $1.45
9 20100061 ROCKSHAFT BOLT Price: $1.45
10 20100055 ASM, LIFTER STOPPER PLATE Price: $1.45
11 20100022 CLAMP, VALVE LOCK Price: $0.95
12 20100026 SEAT, VALVE SPRING Price: $2.45
13 20100020 SPRING, VALVE Price: $1.45
14 20100017 GUIDE, SEAL Price: $2.45
15 20100021 RETAINER, VALVE SPRING Price: $1.45
16 20100012 CYLINDER HEAD BOLT Price: $2.45
17 20100117 SHROUD, CYLINDER BODY Price: $3.45
18 20100386 BLT, HEX-FLG M6X12 This part replaces 20100147. Price: $0.45
19 20100031 ASM, CYLINDER HEAD Price: $49.45
20 20001113 SPARK PLUG - PLATINUM Price: $8.95
21 20100029 GASKET, CYLINDER HEAD Price: $5.45
22 20100180 POSITION PIN Price: $0.95
23 20100024 VALVES SET Price: $14.45
29 20100004 BOLT, DRAIN PLUG Price: $1.45
30 20100175 FLAT WASHER Price: $0.95
31 20100005 TUBE, OIL DRAIN Price: $6.95
32 20100174 FLAT WASHER - GRADE A Price: $0.95
33 20100003 BOLT, DRAIN PLUG Price: $1.45
34 20100130 COIL SUBASSEMBLY, CHARGE Price: $27.45
35 21596800 BLT, HEX-FLG M6X28 This part replaces 20100150. Price: $0.95
36 20100127 CLAMP, CHARGE COIL Price: $0.95
37 20100050 FLYWHEEL SUBASSEMBLY Price: $60.45
38 20100119 IMPELLER Price: $6.95
39 20100121 CUP, STARTER Price: $7.95
40 20100048 NUT, FLYWHEEL Price: $2.45
41 20100188 WIRE CLIP Price: $0.95
42 20100125 SHROUD Price: $19.95
43 20100158 BOLT, M6X12 GRADE B HEX FLANGE Price: $0.95
44 20100126 STARTER ASSY, RECOIL Price: $32.95
45 20100144 BOLT, M6X8 HEX FLANGE Price: $0.95
46 20100124 PLUG, RUBBER Price: $0.95
47 20100156 BOLT, M8X40 HEX FLANGE Price: $0.95
48 20100132 STARTING MOTOR ASSEMBLY Price: $131.95
49 20100160 SCREW, PAN HEAD M4X55X0.7 Price: $0.95
51 20100075 ARM, GOVERNOR Price: $3.45
52 20100176 FLAT WASHER Price: $0.95
53 20100177 COTTER PIN Price: $0.45
54 20100074 SPRING, THROTTLE VLV RETURNING Price: $0.45
55 20100078 ROD, GOVERNEOR Price: $0.95
56 20100080 SPRING, GOVERNOR Price: $0.95
57 20100082 ASM, GOVERNOR BRACKET Price: $3.45
58 20100167 HEXAGON NUT WITH FLANGE Price: $0.95
59 20100083 BOLT, GOVERNOR SUPPORT Price: $0.95
60 20100093 CONTROL ASSY, THROTTLE Price: $12.45
61 20100187 SEAL, OIL Price: $6.95
63 20100090 GEAR ASSY, GOVERNOR Price: $7.95
64 20100185 BRG, DEEP GROOVE BALL Price: $10.95
65 20100051 ROD, PUSH Price: $3.45
66 20100054 TAPPET, VALVE Price: $3.45
67 20100057 CAMSHAFT ASSY Price: $32.95
68 20100182 POSITION PIN Price: $0.95
69 20100001 GASKET, CRANKCASE Price: $6.95
70 20100010 COVER, CRANKCASE Price: $38.45
71 20100065 DIPSTICK SUBASSEMBLY, OIL Price: $9.95
72 20100067 ASM, ENGINE OIL PLUG Price: $2.45
73 20100155 BOLT, M8X35 HEX FLANGE Price: $0.95
74 20100163 STUD BOLT (BM=2D) Price: $2.95
75 20100107 GASKET, INLET Price: $0.45
76 20100072 PLATE, CARBURETOR INSULATOR Price: $2.45
77 20100069 CARBURETOR SEAL GASKET Price: $0.45
78 20100085 CARBURETOR ASSY Price: $43.95
79 20100106 AIR CLEANER SEAL GASKET Price: $2.45
80 20100189 PIPE CLAMP Price: $0.95
81 20100191 TUBE, FUEL Price: $4.45
82 20100190 PIPE CLAMP Price: $0.95
83 20100089 LINE, PRIMER Price: $0.95
84 20100140 ASM, CONTROL PANEL Price: $15.45
85 20100170 ACORN HEXAGON NUTS Price: $1.45
86 20100087 BULB, PRIMER Price: $6.95
87 20100139 ASM, STOP ENGINE SWITCH Price: $6.95
88 20100137 WIRE, IGNITION COIL STOP ENG Price: $4.45
89 20100134 COIL, IGNITION Price: $19.95
90 20100164 STUD BOLT (BM=2D) Price: $2.45
91 20100111 GASKET, EXHAUST OUTLET Price: $1.45
92 20100172 LOCK NUT Price: $2.45
93 20100141 MOUNTING BRACKET Price: $5.45
94 20100114 MUFFLER ASSY Price: $29.95
95 20100116 SHIELD, HEAT Price: $27.45
97 20100153 BOLT, M8X20 HEX FLANGE Price: $0.95
98 20100104 CAP, FUEL Price: $8.95
99 20100102 FUEL GAUGE Price: $1.45
100 20100095 SHIELD,FUEL TANK Price: $4.45
101 20100148 BOLT, M6X16 HEX FLANGE Price: $0.95
102 20100097 FUEL TANK INSTALL REAR BRKT Price: $10.95
103 20100099 FUEL TANK Price: $30.95
104 20100096 FUEL TANK SHIELD 2 Price: $3.45
105 20100103 OUTLET WITH FILTER Price: $2.45
106 20100094 FRAME, FUEL TANK INSTALLATION Price: $10.95
107 21596700 COVER, CYL HEAD BOLT SEAL RING Price: $1.45
108 20100193 CLAMP Price: $0.45
