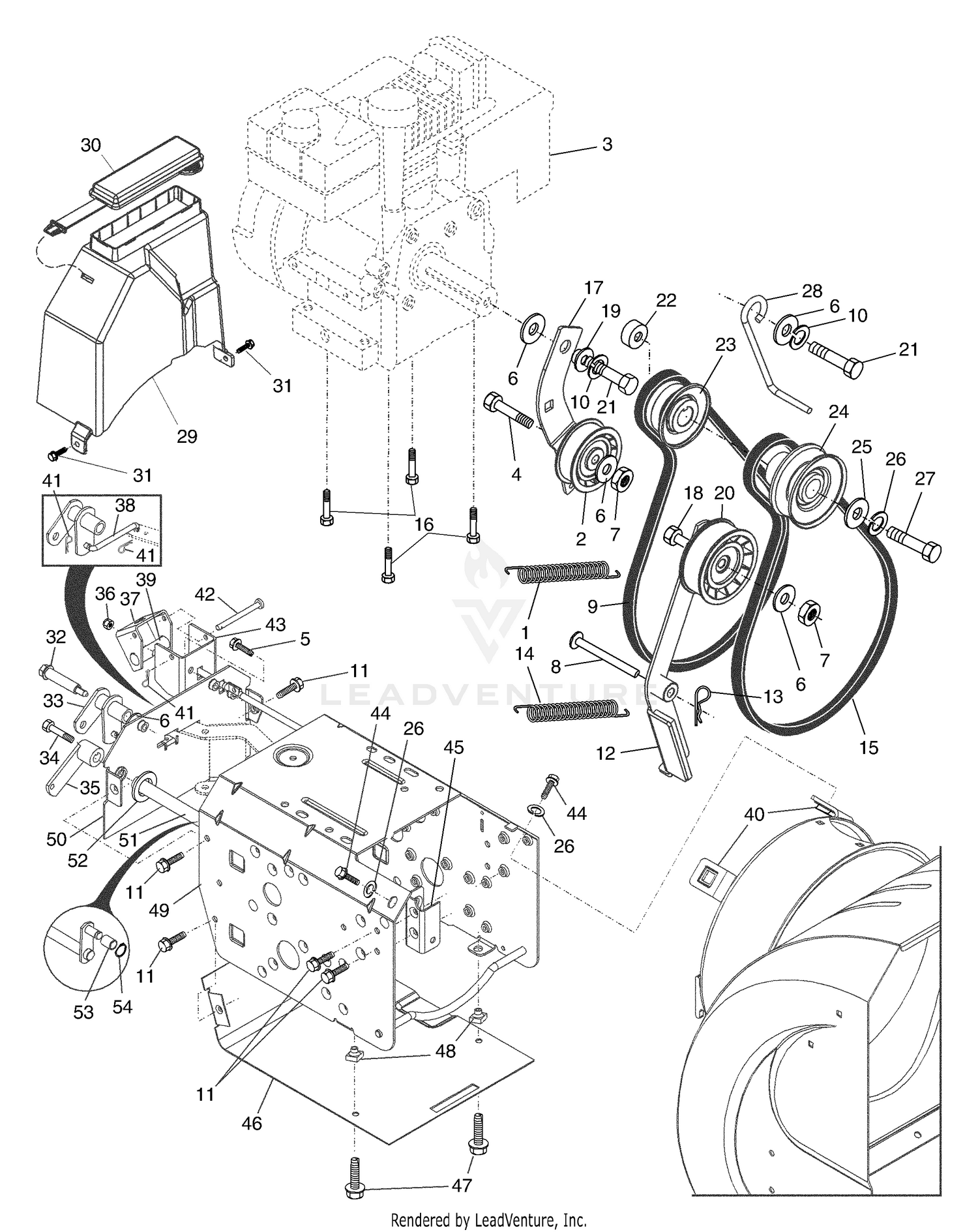

| Ref | Part Number | Description |
|---|
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 4 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 5 |
56-6860 |
SHAFT ASM Price: $903.57 |
| 6 |
33-3570 |
PIN Price: $6.13 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
33-3410 |
SPRING Price: $8.01 |
| 7 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 8 |
57-6030 |
CAPSCREW Price: $17.58 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532179259. Price: $79.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 13 |
99-3139 |
NUT This part replaces 11-5800. Price: $16.11 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 14 |
56-6850 |
HOUSING-BEARING Price: $639.21 |
| 15 |
105-8145 |
DRIVE This part replaces 36-6270. Price: $258.99 |
| 15 |
532408010 |
BELT.V.IMPELLER.DRIVE This part replaces 532183533. Price: $34.99 |
| 16 |
105-8146 |
GEROTER ASM This part replaces 56-6810. Price: $934.90 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
36-6260 |
DRIVE-VALVE Price: $244.63 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532179354. Price: $27.99 |
| 18 |
33-3440 |
PLATE-BALANCING Price: $116.20 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
33-3580 |
PLUG ASM Price: $19.04 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
532179371 |
SPACER, ENGINE PULLEY Price: $7.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
532426491 |
PULLEY.IMPELER. This part replaces 532179157. Price: $14.99 |
| 25 |
532062735 |
WASHER Price: $3.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
532155452 |
BELT.GUIDE.RH This part replaces 532183561. Price: $4.99 |
| 29 |
532443030 |
COVER.ASM.BELT.EURO.TRIMMED This part replaces 532180465. Price: $27.99 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532180401 |
SCREW Price: $2.99 |
| 35 |
532179240 |
ARM, AUGER CONTROL Price: $3.99 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532179064 |
TRUNION, PIVOT BRACKET Price: $4.40 |
| 40 |
532178820 |
NUT, CAGE 3/8-16 This part replaces 532178890. Price: $5.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532184073. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532419877 |
KIT.CONTROL.SHAFT. This part replaces 532184082. Price: $76.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
532179062 |
ROLLER.ACTUATOR Price: $6.99 |
| 54 |
812000010 |
RETAINING RING Price: $2.99 |
