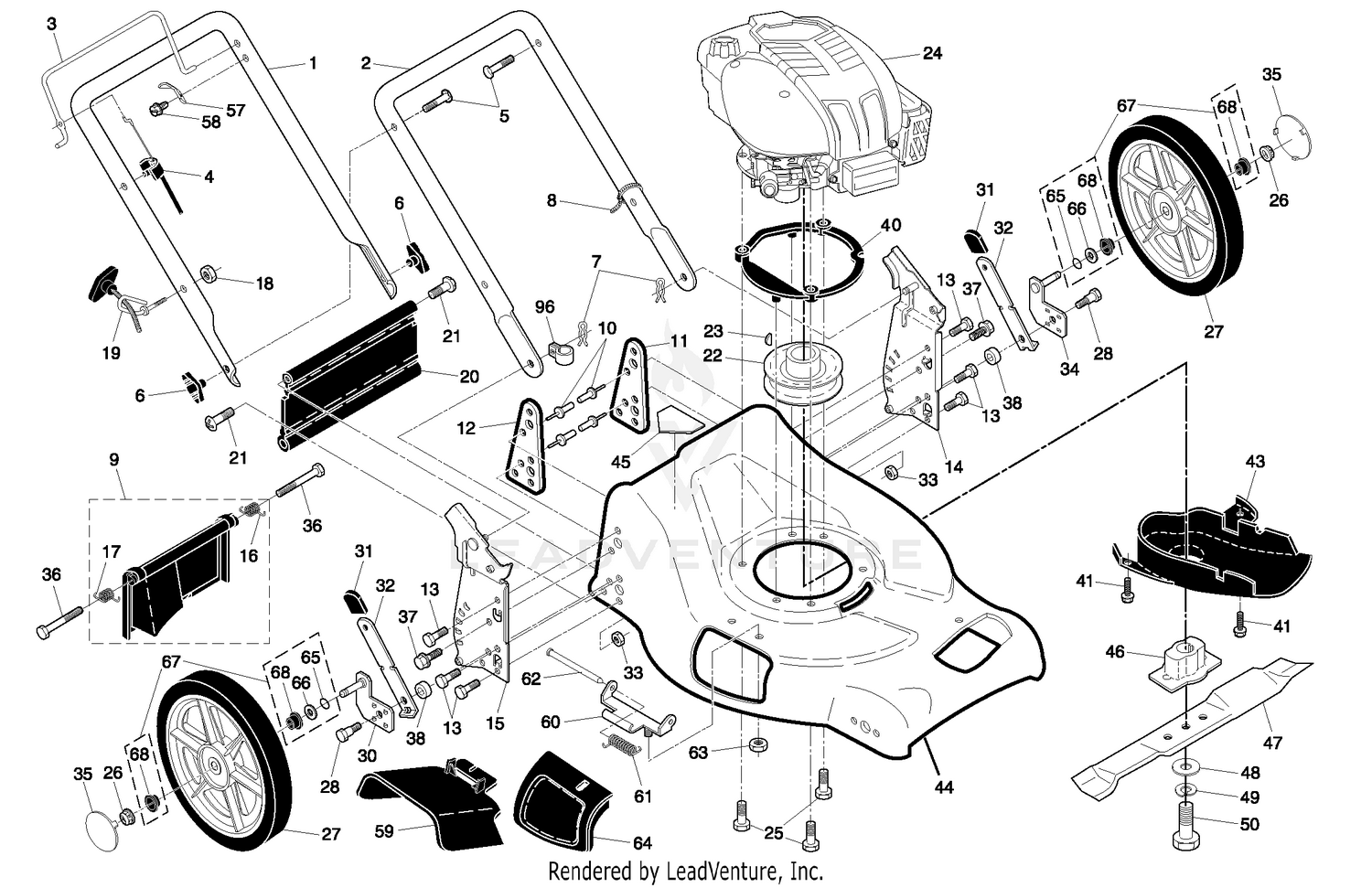

| Ref | Part Number | Description |
|---|
| 1 |
195091 |
Drive Control Assembly, Complete Price: Call Us |
| 2 |
188277 |
Cover, Top Price: Call Us |
| 3 |
187353 |
Pulley Price: Call Us |
| 4 |
195585 |
Lever Price: Call Us |
| 5 |
188276 |
Cover, Bottom Price: Call Us |
| 6 |
181698 |
Screw #8 x .62 Price: Call Us |
| 7 |
184212X479 |
Mounting Bracket Price: Call Us |
| 8 |
184987 |
Cap, Bottom Price: Call Us |
| 9 |
195412 |
Cable, Drive Price: Call Us |
| 10 |
195175 |
Decal, Drive Control Operation Price: Call Us |
| 11 |
185913 |
Decal, Drive Control Adjustment (back) Price: Call Us |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 13 |
188330 |
Pinion Assembly, RH Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 15 |
184172 |
Seal, Friction Price: Call Us |
| 16 |
67725 |
Washer 1/2 x 1-1/2 x .134 Price: Call Us |
| 17 |
167387 |
Bearing, Wheel Adjuster Price: Call Us |
| 18 |
170143 |
Selector Knob Price: Call Us |
| 19 |
175104 |
Disc, Drive Price: Call Us |
| 20 |
188291 |
Spring, Torsion Price: Call Us |
| 21 |
175098 |
Pawl Price: Call Us |
| 22 |
175105 |
Retainer, Drive, LH Price: Call Us |
| 23 |
175103 |
Pinion, Gear Price: Call Us |
| 24 |
175102 |
Retainer, Drive, RH Price: Call Us |
| 25 |
188102 |
Keeper, Belt Price: Call Us |
| 26 |
173715 |
Screw Price: Call Us |
| 27 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 28 |
180329 |
Drive Cover Price: Call Us |
| 29 |
169778 |
V-Belt Price: Call Us |
| 30 |
77400 |
Hubcap Price: Call Us |
| 31 |
132010 |
Hex Flange Nut Price: Call Us |
| 32 |
189406 |
Drive Pulley Price: Call Us |
| 33 |
145212 |
Locknut Price: Call Us |
| 34 |
194854 |
Wheel & Tire Assembly, Front Price: Call Us |
| 36 |
187212 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
188331 |
Pinion Assembly, LH Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
188152 |
O-Ring Price: Call Us |
| 40 |
182226 |
Spring Price: Call Us |
| 42 |
88348 |
Washer, Flat Price: Call Us |
| 54 |
194697 |
Grassbag Assembly Price: Call Us |
| 55 |
175739 |
Driveshaft Cover Price: Call Us |
| 57 |
188815 |
Frame, Grassbag Price: Call Us |
| 60 |
181758 |
Decal, Drive Cover Price: Call Us |
| 63 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 66 |
187527 |
Shaft, Input Price: Call Us |
| 67 |
187528 |
Spacer Price: Call Us |
| 69 |
183505 |
Wire, Formed Price: Call Us |
| 70 |
183506 |
Bearing, Ball Price: Call Us |
| 72 |
183508 |
Seal, Output Shaft Price: Call Us |
| 73 |
183509 |
Washer Price: Call Us |
| 75 |
183511 |
Bushing Price: Call Us |
| 76 |
187529 |
Shaft, Output Price: Call Us |
| 77 |
183513 |
Screw Price: Call Us |
