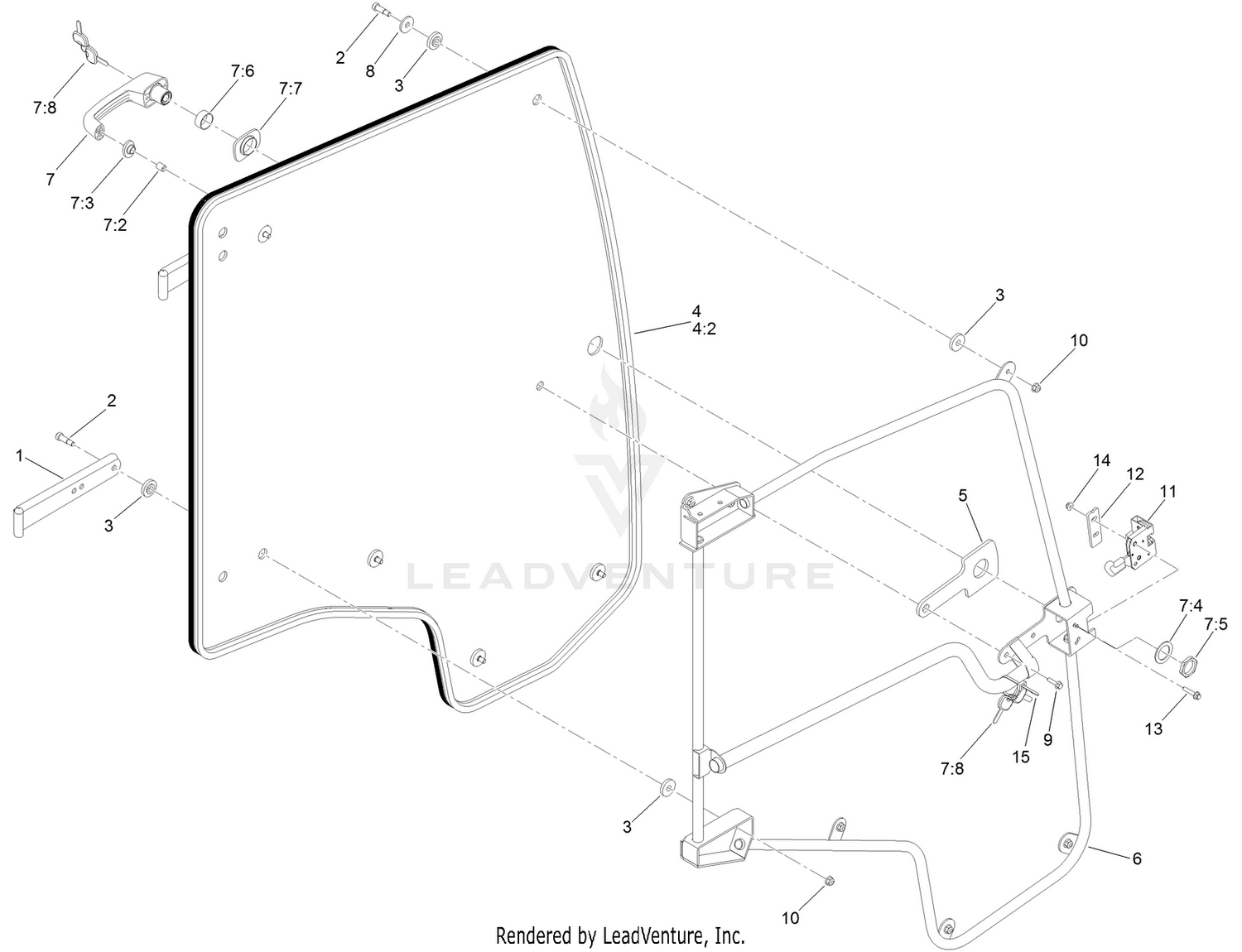

LH Door Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-3622-03 | HINGE-DOOR, LH Price: $37.95 |
| 2 | 125-9520 | SCREW-SHOULDER, HSH Price: $1.83 |
| 3 | 125-9982 | BUSHING-FLANGE Price: $1.76 |
| 4 | 137-1207 | LH GLASS DOOR ASM Price: $1,089.11 |
| 5 | 121-8331 | GASKET-HANDLE Price: $15.02 |
| 6 | 140-6552-03 | FRAME-DOOR, LH Price: $546.52 |
| 7 | 121-8630 | HANDLE ASM Price: $121.56 |
| 8 | 125-9676 | WASHER-BACKUP Price: $1.70 |
| 9 | 33103-025 | SCREW-HHF Price: $0.54 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 121-8391 | LATCH-LH Price: $57.87 |
| 12 | 121-8395 | PLATE-SUPPORT, LATCH Price: $5.43 |
| 13 | 3234-21 | SCREW-HHF Price: $2.19 |
| 14 | 104-7201 | NUT-HF Price: $0.69 |
